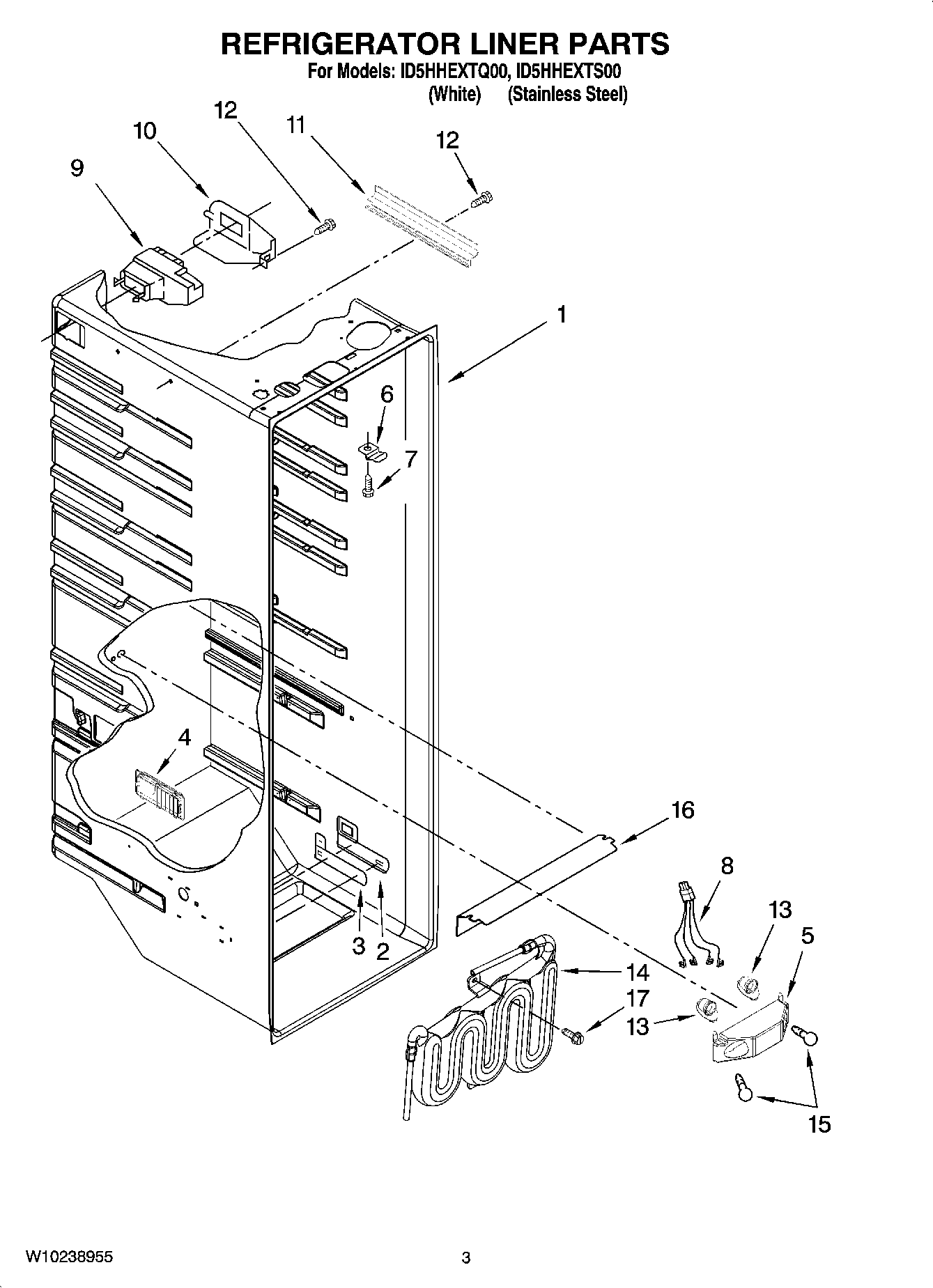

ID5HHEXTQ00 02 – REFRIGERATOR LINER PARTS

ID5HHEXTQ00 02 – REFRIGERATOR LINER PARTS

Written by

in

ID5HHEXTQ00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5Bracket, Dual Crisper Light
62311612 Whirlpool Refrigerator Clip
82311637 Whirlpool Refrigerator Wire Harness
9WPW10151374 Whirlpool Refrigerator Diffuser
102152019 Whirlpool Refrigerator Cover
112150331 Whirlpool Refrigerator Wire Cover
12W10759522 Whirlpool Screw
134387478 Whirlpool Refrigerator Light Socket
14RESERVOIR
15RANGE ONLY 40W 120V APPL BULB
16Light Lens
17Screw (2)
