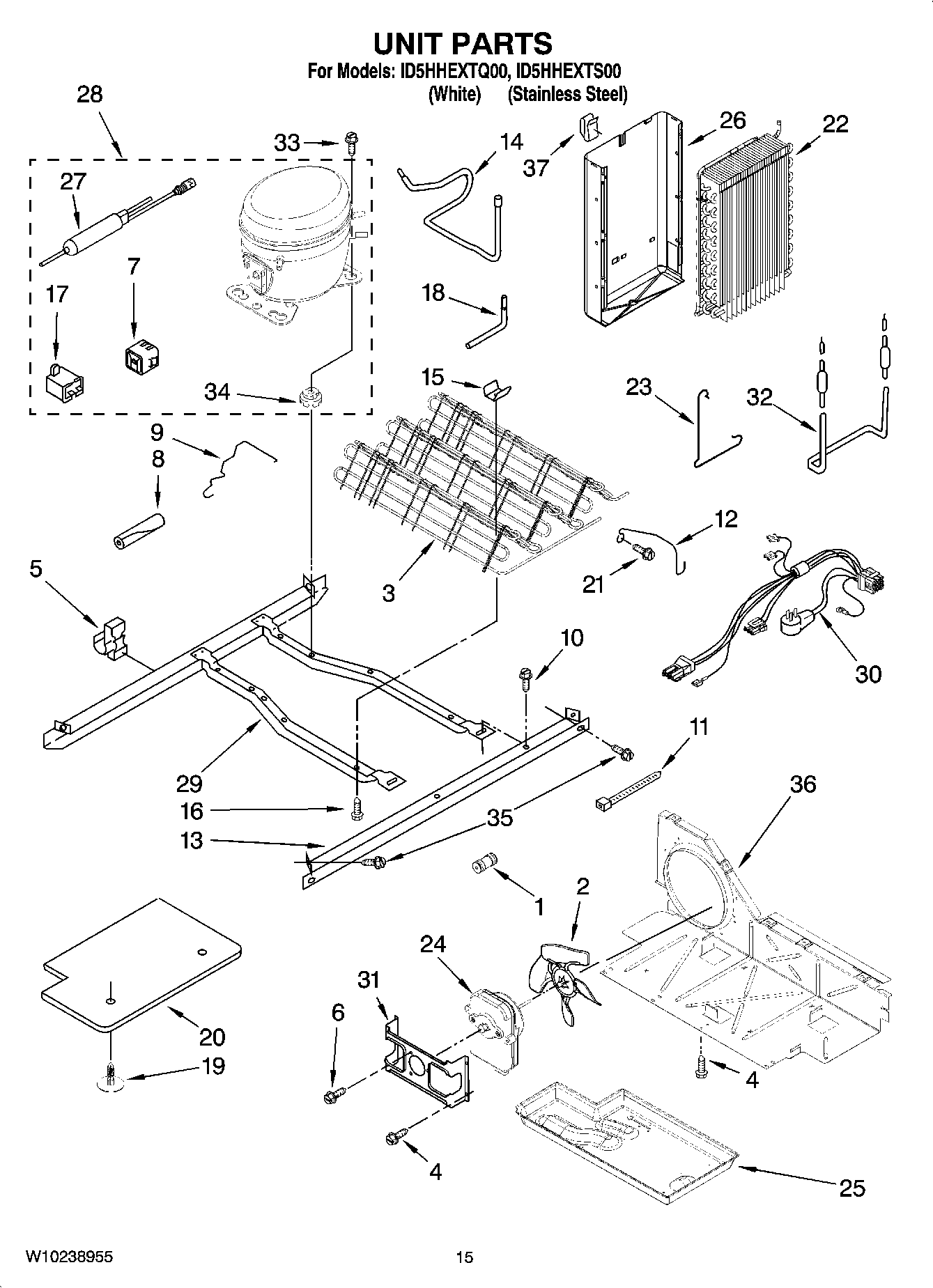

ID5HHEXTQ00 09 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	REFRIGERANT CHARGE 5.0 oz. (R-134A)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
	Following Parts Not Illustrated and Optional Parts Not Included
1	WPW10334458 Whirlpool Refrigerator Connector
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	WP2304885 Whirlpool Refrigerator Start Device
8	SLEEVE
9	2223314 Whirlpool Refrigerator Clip
10	WP489427 Whirlpool Refrigerator Screw
11	WPW10339879 Whirlpool Wire Tie
12	Guard, Fan
13	WPW10196323 Whirlpool Refrigerator Rail Assembly
14	WP2205765 Whirlpool Refrigerator Tube
15	W10683556 Whirlpool Refrigerator Clip
16	W11544659 Whirlpool Refrigerator Screw
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	W10858105 Whirlpool Refrigerator Tube
19	489396 Whirlpool Refrigerator Clip
20	Unit Cover, Bottom
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Heat Shield
27	WPW10143759 Whirlpool Dryer Filter
28	W10139460 Whirlpool Refrigerator Compressor
29	W10196321 Whirlpool Refrigerator Frame
30	WPW10309395 Whirlpool Refrigerator Wire Harness
31	WP2181929 Whirlpool Refrigerator Bracket
32	WP2323198 Whirlpool Refrigerator Heater
34	876811 Whirlpool Grommet
34	WP4387558 Whirlpool Refrigerator Compressor Grommet
35	489340 Whirlpool Refrigerator Screw
36	Air Baffle
37	Clip, Heat Shield
