ID5HHEXVQ00 11 – CONTROL PARTS

ID5HHEXVQ00 11 – CONTROL PARTS

Written by

in

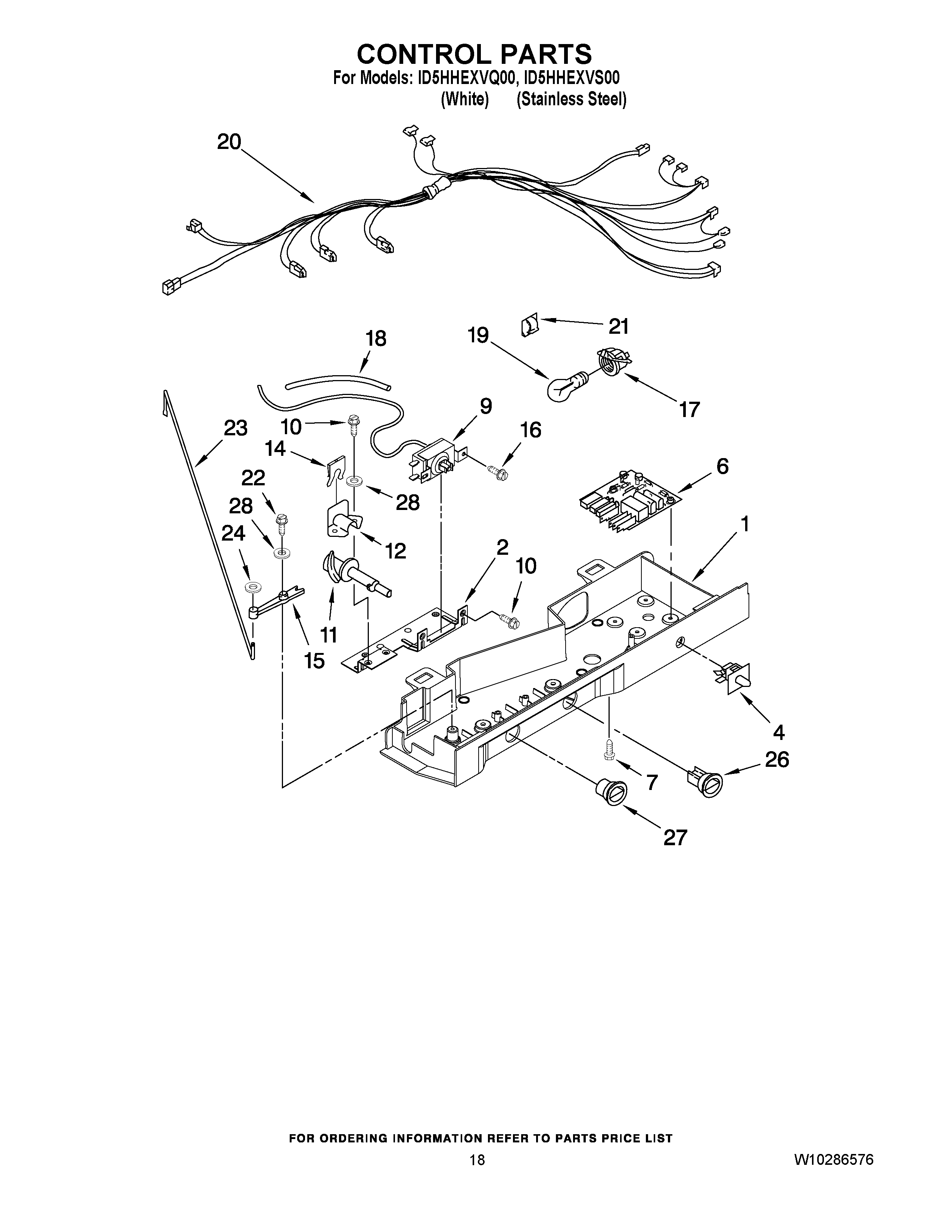

ID5HHEXVQ00 11 – CONTROL PARTS

Products

PositionProduct
1Control Box
22311611 Whirlpool Refrigerator Bracket
4WP2149705 Whirlpool Refrigerator Door Switch
64388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
7489392 Whirlpool Refrigerator Screw
9WP2198202 Whirlpool Refrigerator Temperature Thermostat
10WP3196557 Whirlpool Screw
11WP2182195 Whirlpool Refrigerator Cam
121110560 Whirlpool Refrigerator Bearing
14WP2196062 Whirlpool Refrigerator Clip
15Pivot Arm
16WP965173 Whirlpool Dishwasher Screw
174387478 Whirlpool Refrigerator Light Socket
18WP2196003 Whirlpool Refrigerator Bar Riser
19RANGE ONLY 40W 120V APPL BULB
202311633 Whirlpool Refrigerator Wire Harness
21WP1115374 Whirlpool Refrigerator Clip
22627068 Whirlpool Refrigerator Screw
232311631 Whirlpool Refrigerator Rod
24Fastener, Push-On
26W10723843 Whirlpool Refrigerator Thermostat Knob
272311615 Whirlpool Refrigerator Knob
28489203 Whirlpool Refrigerator Washer
