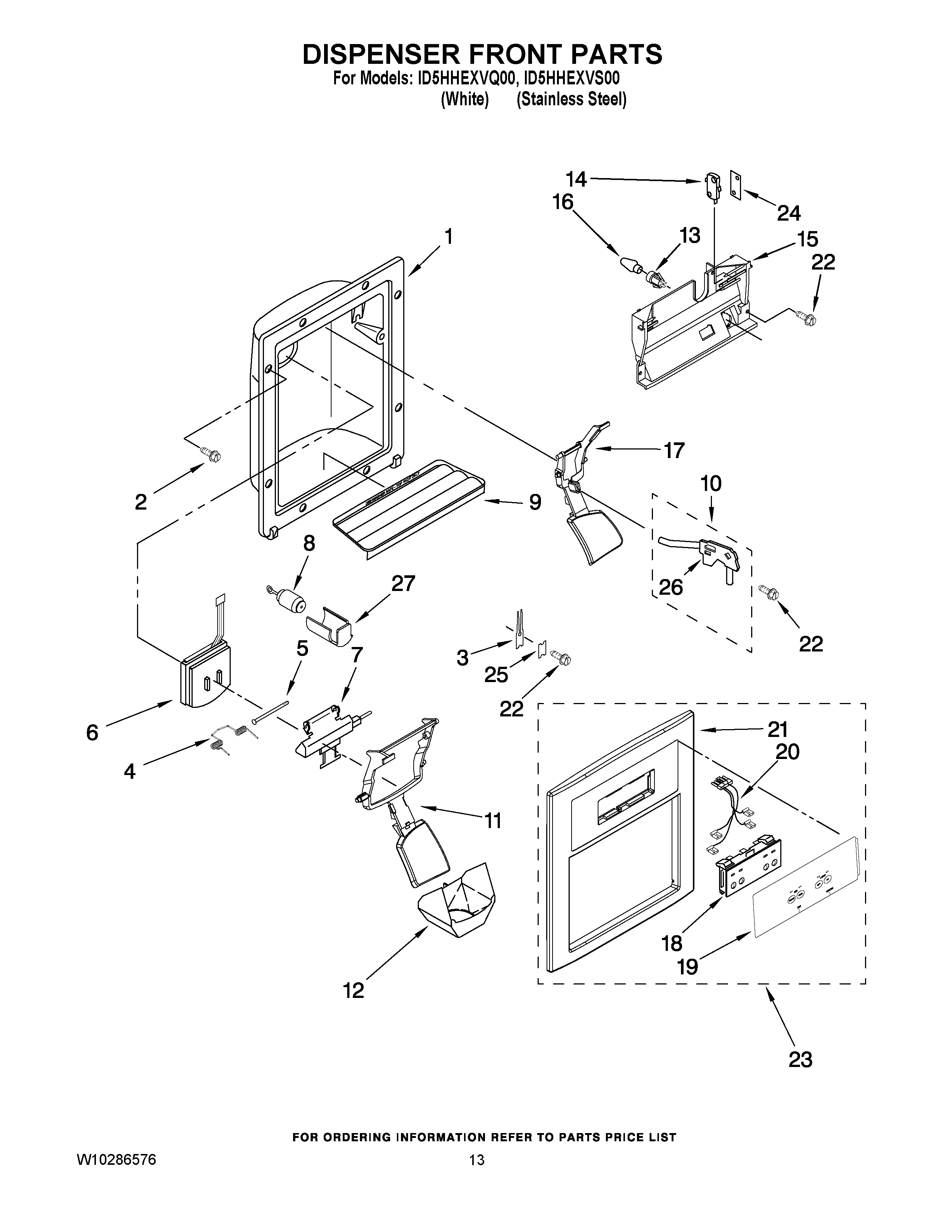

ID5HHEXVS00 08 – DISPENSER FRONT PARTS
Written by
in
ID5HHEXVS00 08 – DISPENSER FRONT PARTS
Products
Position
Product
2
WP3196557 Whirlpool Screw
3
WP2194719 Whirlpool Refrigerator Clip
4
WPW10224328 Whirlpool Refrigerator Spring
5
WP2196195 Whirlpool Refrigerator Door Pin
6
WP2180353 Whirlpool Dispenser Door
7
Door Mechanism Assembly
8
Delay Mechanism
9
WP2206670B Whirlpool Dispenser Tray
9
WP2206670W Whirlpool Dispenser Tray
10
8201537 Whirlpool Water Tubing Assembly
11
Lever, Ice Dispenser (White)
11
Lever, Ice Dispenser (Black)
12
WP2180224 Whirlpool Dispenser Funnel Guide
13
2180200 Whirlpool Refrigerator Socket
14
WP2162361 Whirlpool Switch
15
WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16
WP22002263 Whirlpool Dryer 10W Light Bulb
17
WPW10152858 Whirlpool Refrigerator Dispenser Arm
18
WP2180279 Whirlpool Refrigerator Switch
21
CABINET (NOT A SERVICEABLE PART)
22
WP3400906 Whirlpool Refrigerator Screw
23
2311700B Whirlpool Front Cover Assembly
23
Front Cover Assembly (Includes Items 18, 19, 20 & 21) (White)
24
Spacer, Switch (2)
25
WP2195051 Whirlpool Refrigerator Clip
26
WP2304673 Whirlpool Refrigerator Bracket
27
Sleeve, Delay Mechanism
←
