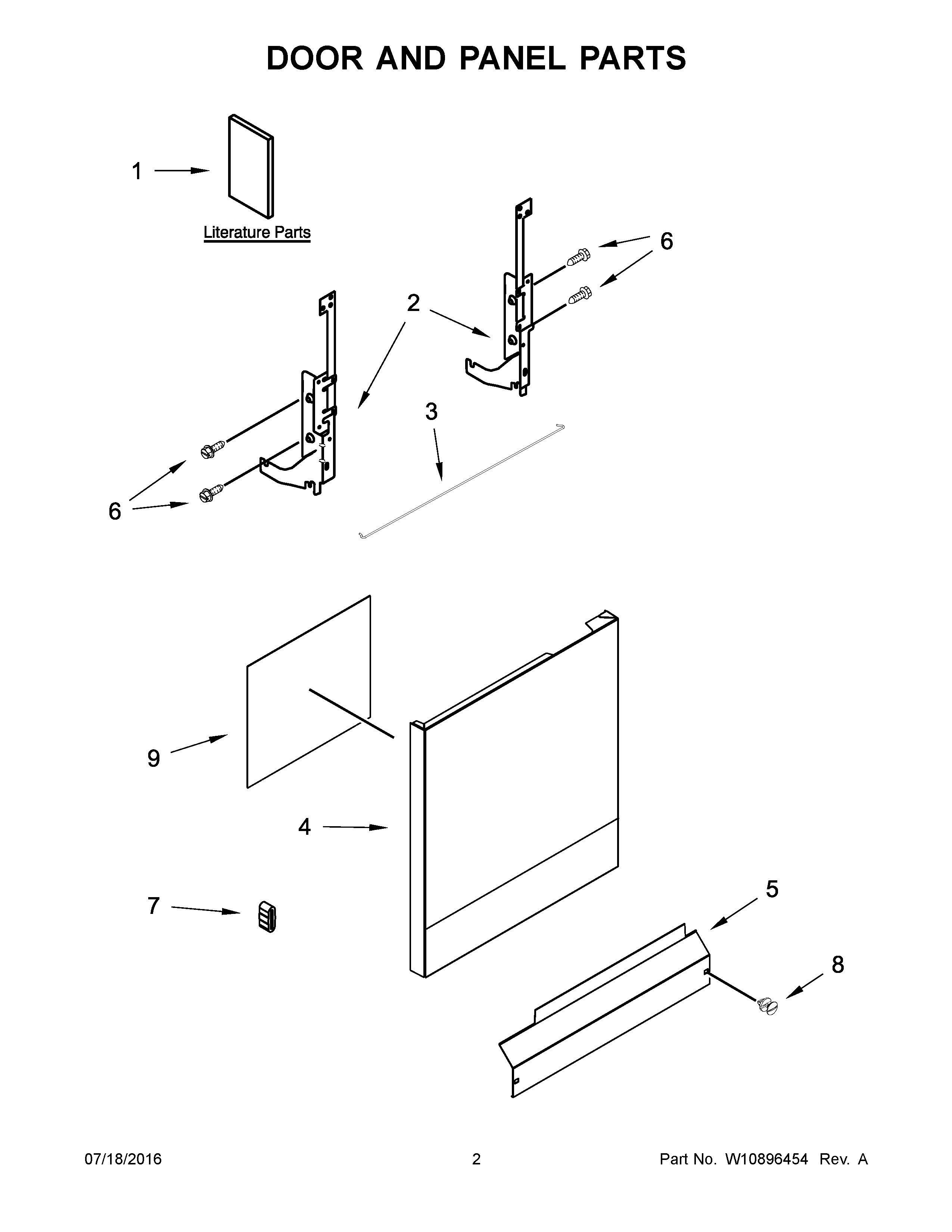

IDF320PAFW1 02 – DOOR AND PANEL PARTS

IDF320PAFW1 02 – DOOR AND PANEL PARTS

Written by

in

IDF320PAFW1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
1BUSE & CARE GUIDE
1INSTALLATION, INSTRUCTIONS
2AW11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10274896 Whirlpool Dishwasher Panel
5WPW10441014 Whirlpool Dishwasher Panel
6WPW10109200 Whirlpool Screw
7WP8268961 Whirlpool Friction Pad
8WPW10503549 Whirlpool Dishwasher Retainer Clip
9WPW10073520 Whirlpool Dishwasher Insulation Pad
