IDF320PAFW1 03 – CONTROL PANEL AND LATCH PARTS
Written by
in

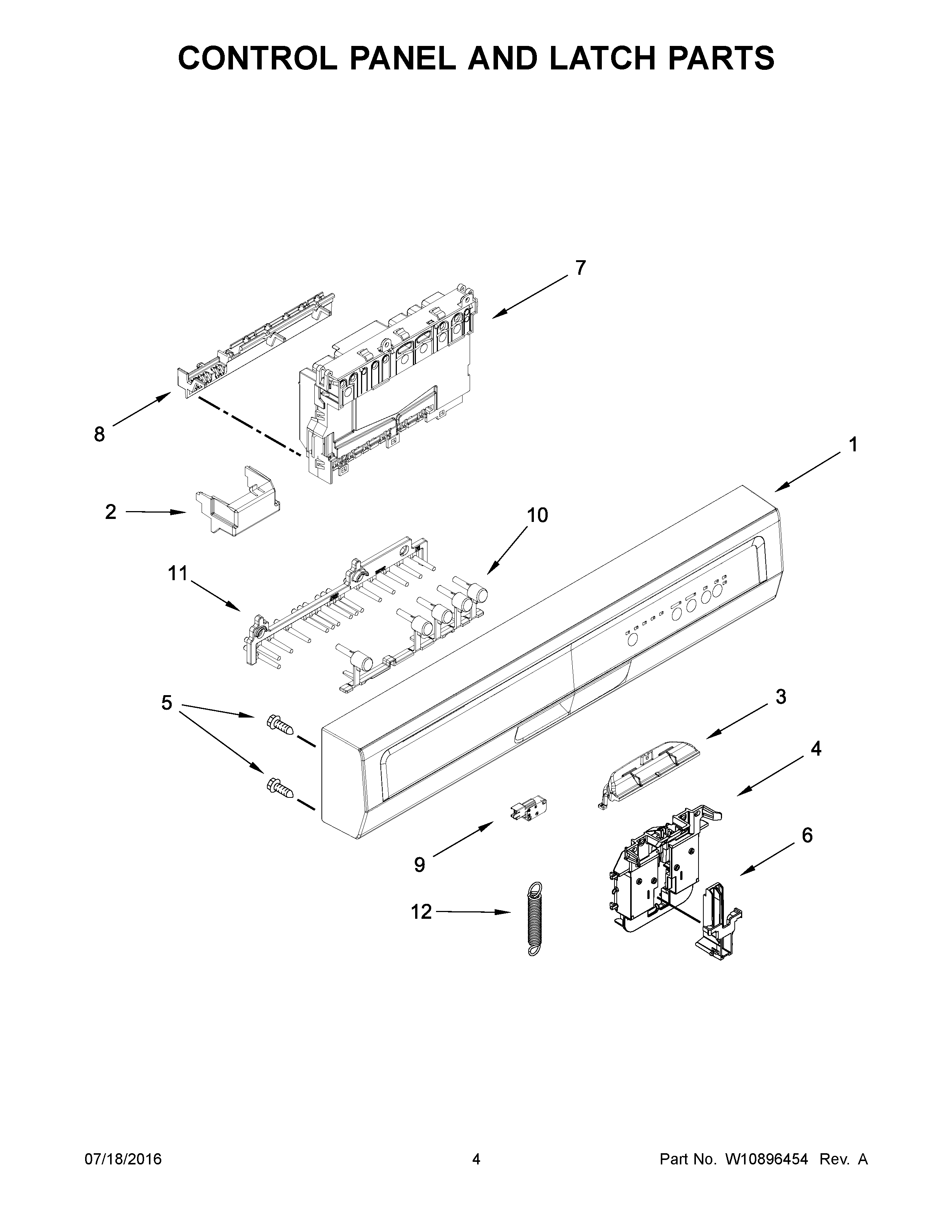

IDF320PAFW1 03 – CONTROL PANEL AND LATCH PARTS
Products
Position
Product
1
W10887106 Whirlpool Console Assembly
3
W10716686 Whirlpool Dishwasher Handle
4
BOLT-LATCH
5
WPW10348413 Whirlpool Dishwasher Screw
6
WP8524471 Whirlpool Dishwasher Actuator
7
W10906423 Whirlpool Dishwasher Electronic Control Board + Core
8
W11305293 Whirlpool Dishwasher Electronic Control Board
9
WPW10274880 Whirlpool Switch
10
W10854044 Whirlpool Dishwasher Button
11
W10913666 Whirlpool Dishwasher Guide
12
W10678341 Whirlpool Dishwasher Spring
←
