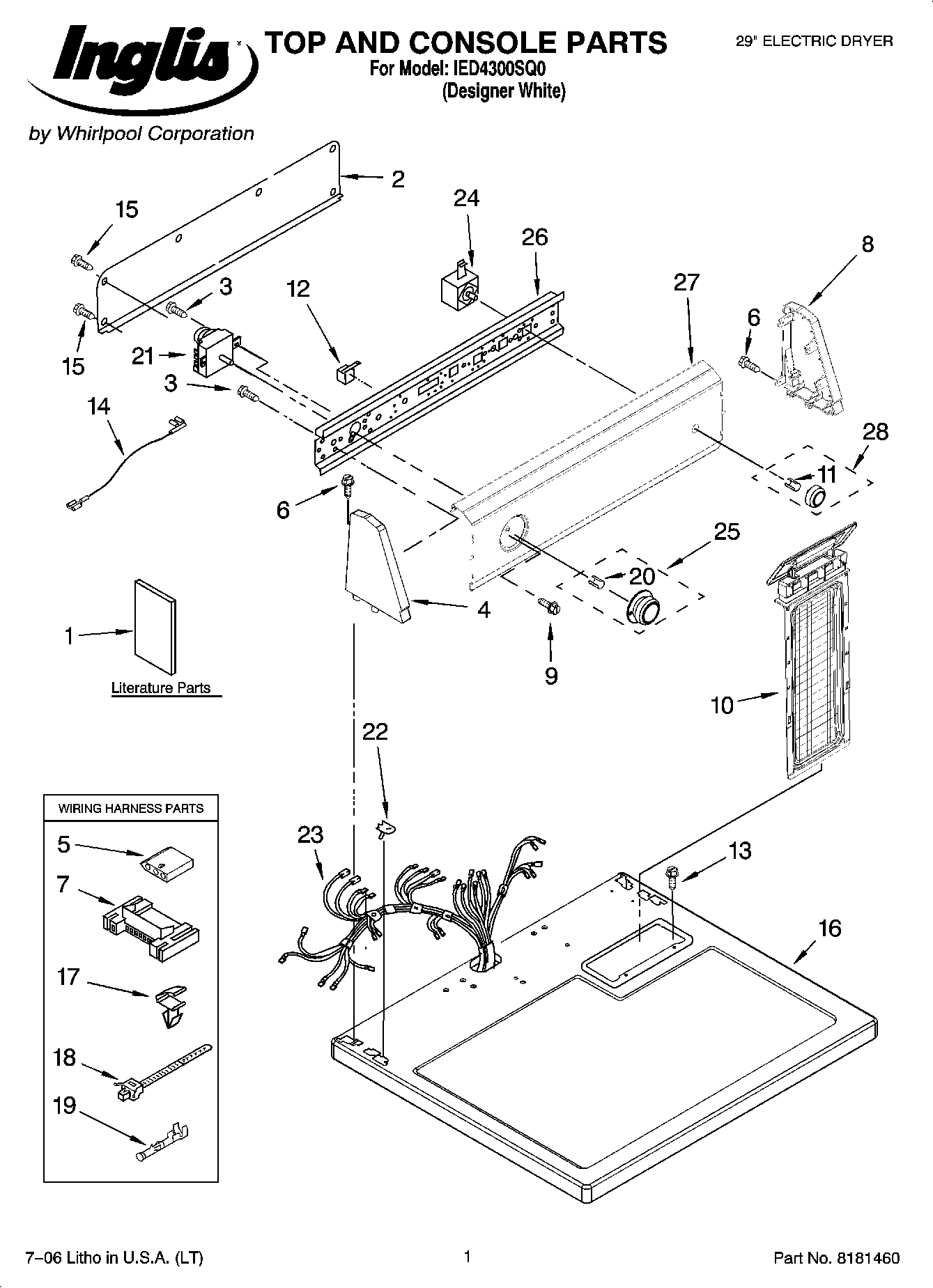

IED4300SQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Instructions, Installation
1WPL 677818
1Wiring Diagram
1Sheet, Cycle Feature
1Use & Care Guide
2W10103406 Whirlpool Rear Panel
3WP90767 Whirlpool Screw
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73395683 Whirlpool Connector
8279960 Whirlpool Endcap Assembly
93400859 Whirlpool Screw
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP694419 Whirlpool Buzzer Adjuster
13W11693756 Whirlpool Screw Assembly
14Wire, Jumper (Black)
14Wire, Jumper (Blue)
15WP693995 Whirlpool Screw
16Top
17WP3394427 Whirlpool Clip
18Tie, Cable
19WP94614 Whirlpool Terminal
20WP688805 Whirlpool Spring Clip
21WP8299778 Whirlpool Timer
22WP357213 Whirlpool Hinge Stopper
23WPW10450292 Whirlpool Wire Harness
24WP3977456 Whirlpool Start Switch
25WP8557455 Whirlpool Knob Timer
26Bracket, Control
27Panel, Control
28Knob, Push-To-Start
