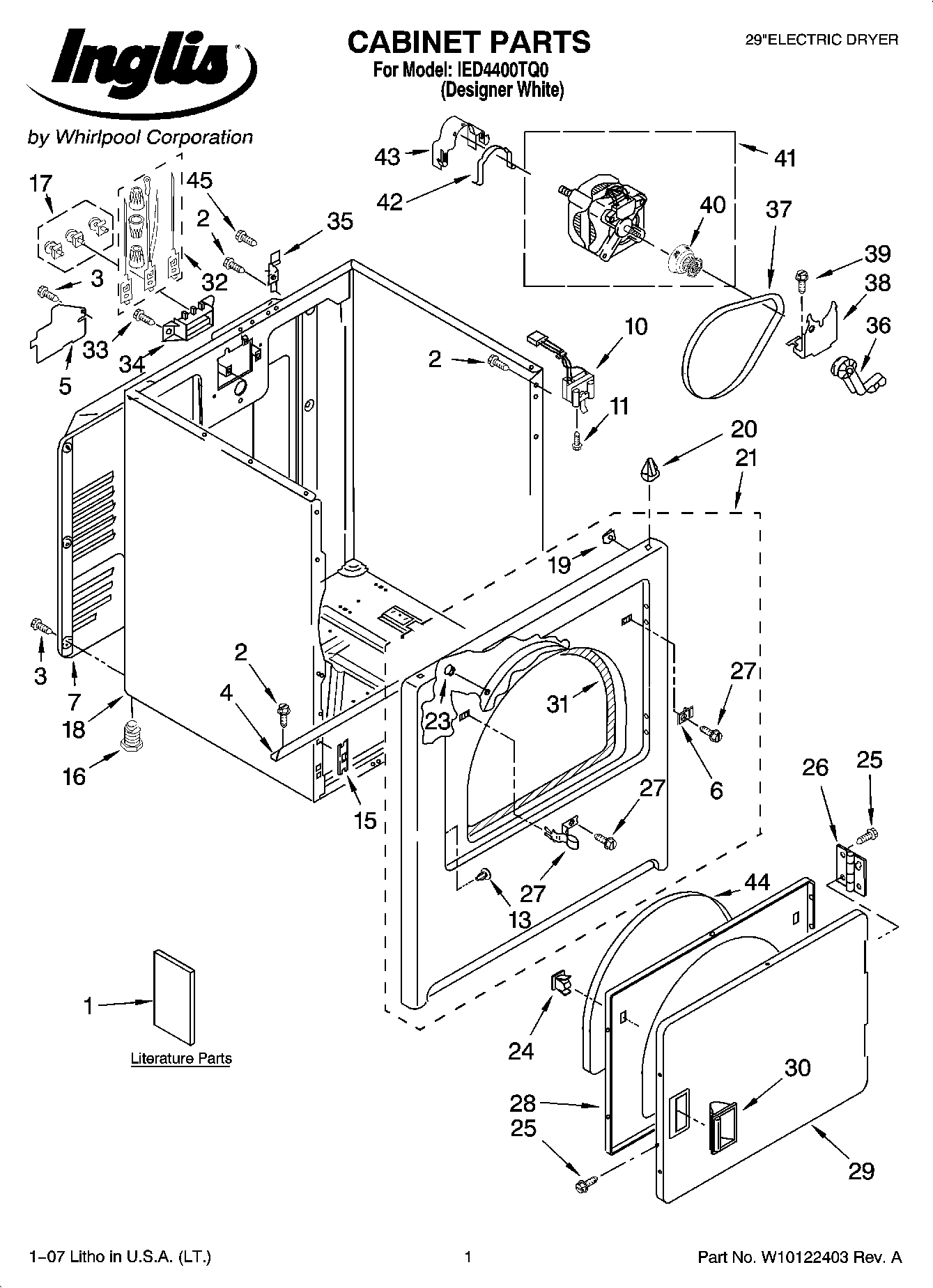

IED4400TQ0 01 – CABINET PARTS

Products

PositionProduct
1Instructions Installations
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Wiring Diagram
1WPL 677818
1Use & Care Guide
1Sheet, Cycle Feature
2SCREW
3WP693995 Whirlpool Screw
4Bracket, Cabinet
5W11539855 Whirlpool Refrigerator Pump
6WP3403630 Whirlpool Plug
7280043 Whirlpool Rear Panel
10SWITCH-DOOR DRYER
11WP3395530 Whirlpool Screw
13WP3404413 Whirlpool Plug
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25WP488627 Whirlpool Refrigerator Screw
26WPW10362431 Whirlpool Hinge Assembly
27W11429589 Whirlpool Strike
28WP3402341 Whirlpool Door
29W10861227 Whirlpool Door Assembly
30WP3405184 Whirlpool White Door Handle
31W11035878 Whirlpool Bearing and Seal
32279393 Whirlpool Terminal Block Screw and Nut Kit
33WP308685 Whirlpool Microwave Screw
34WP3397659 Whirlpool Terminal Block
35WP8066217 Whirlpool Hinge
36WP691366 Whirlpool Dryer Idler Pulley Assembly
37341241 Whirlpool Dryer Drum Belt
38WP348780 Whirlpool Base
393400500 Whirlpool Screw
40WP8066184 Whirlpool Dryer Motor Pulley
41279827 Whirlpool Dryer Drive Motor
42WP660658 Whirlpool Clamp
43WP3404162 Whirlpool Clamp
44SEAL-DOOR DRYER
45W10850756 Whirlpool Screw
