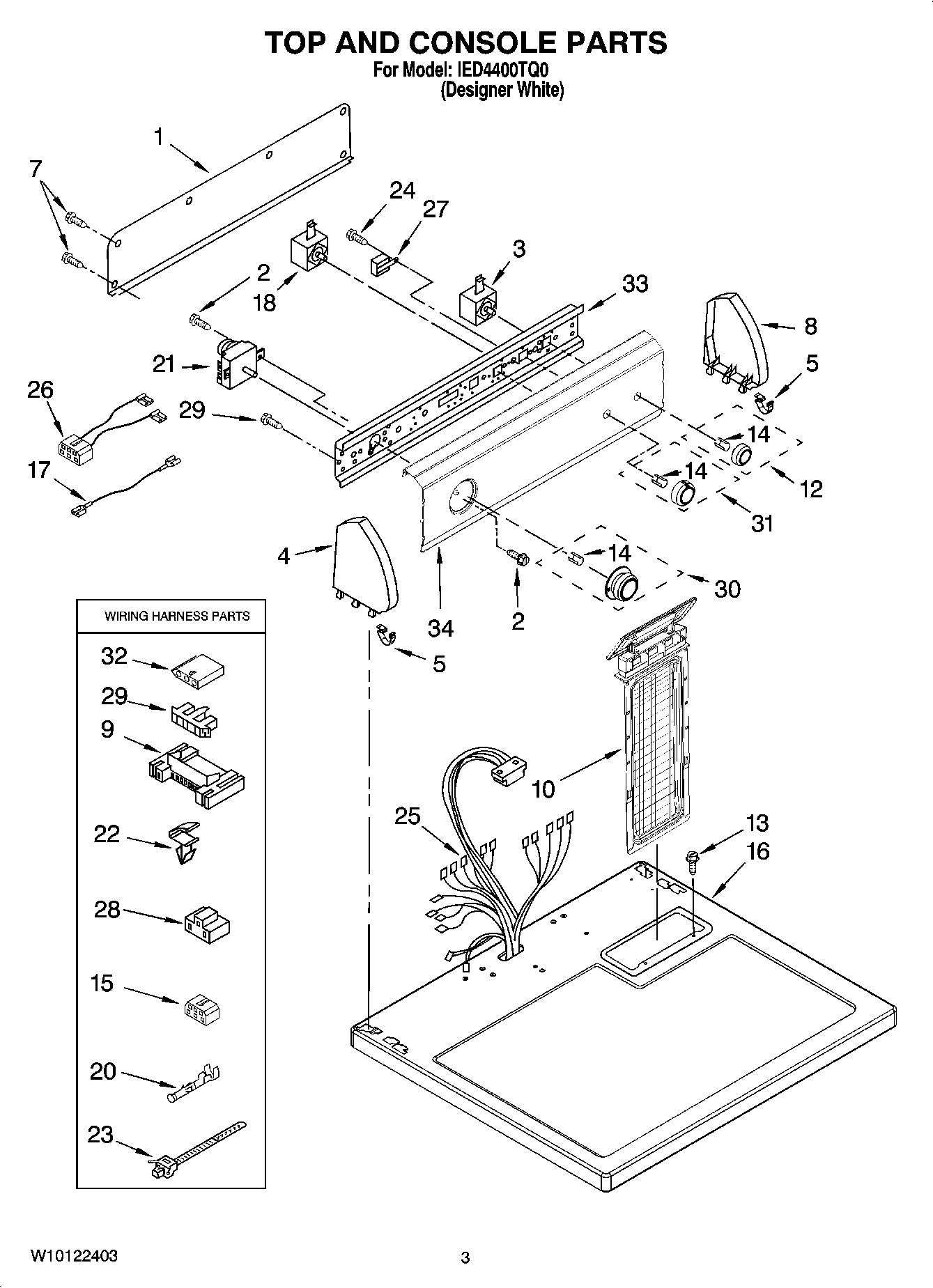

IED4400TQ0 02 – TOP AND CONSOLE PARTS

IED4400TQ0 02 – TOP AND CONSOLE PARTS

Written by

in

IED4400TQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
23400859 Whirlpool Screw
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.)
5WP8312709 Whirlpool Endcap Clip
7WP693995 Whirlpool Screw
8Cap, End (R.H.)
93395683 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
12Knob, Push-To-Start
13W11693756 Whirlpool Screw Assembly
14WP8536939 Whirlpool Spring Clip
15Block, Disconnect
16WP8563663 Whirlpool Top Assembly
17Wire, Jumper (Black)
18WP3399639 Whirlpool Switch
20WP94614 Whirlpool Terminal
21WP3979617 Whirlpool Timer
22WP3394427 Whirlpool Clip
23Tie, Cable
24WP90767 Whirlpool Screw
25Harness, Wiring
268539893 Whirlpool Wire Harness
27WP3398095 Whirlpool Dryer Start Relay
283401144 Whirlpool Connector
29Connector, Timer
30Timer-Knob Assembly
31WPW10110063 Whirlpool Knob
323936144 Whirlpool Connector
33Bracket, Control
34Panel, Control
