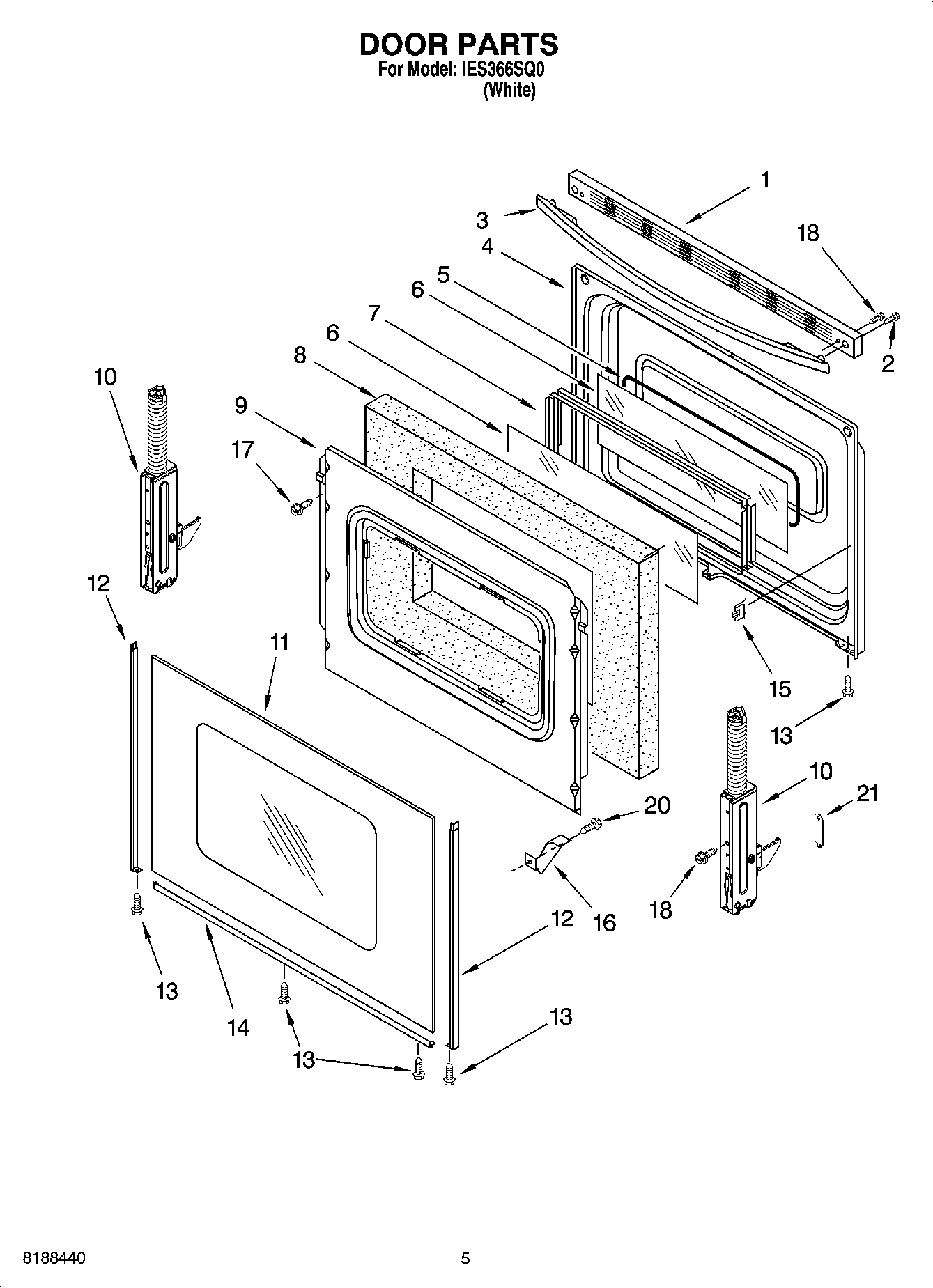

IES366SQ0 04 – DOOR PARTS

Products

Position	Product
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	W10202219 Whirlpool Door Handle Assembly
4	WP9761344 Whirlpool Door Liner
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	W10347466 Whirlpool Door Hinge
11	WP8053834 Whirlpool Door Glass
12	WP8523172 Whirlpool Left Door Trim
12	WP8523166 Whirlpool Door Trim
13	W10491985 Whirlpool Screw
14	WP8523175 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
16	WP3196794 Whirlpool Glass Bracket
17	WPW10031790 Whirlpool Screw
18	W10777162 Whirlpool Screw
20	WP3196175 Whirlpool Screw
21	9761517 Whirlpool Oven Clip Assembly
