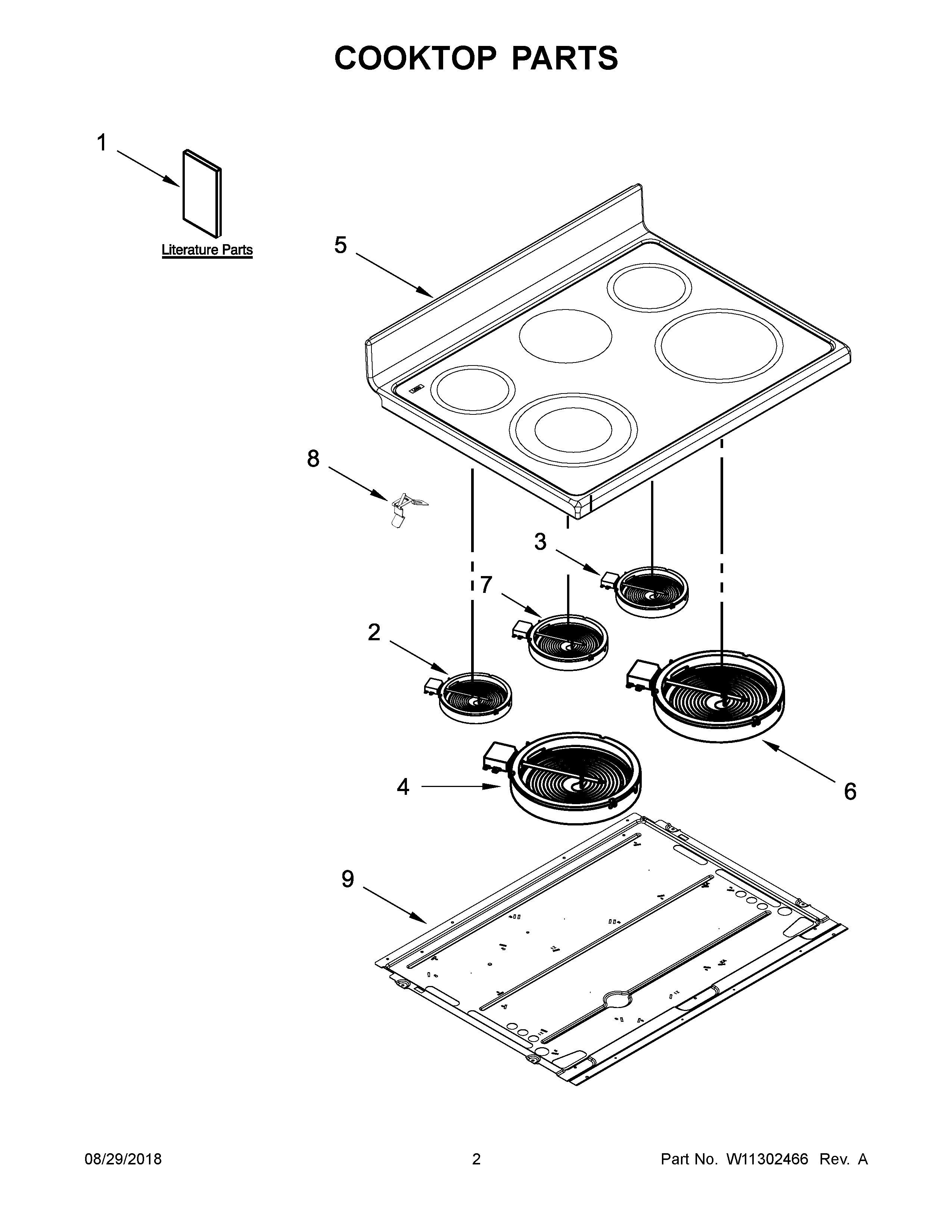

IES900DS04 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, COOKTOP
NI	HARNESS, INFINITE SWITCH (RIGHT)
NI	W11172428 Whirlpool Wire Harness
NI	W11190432 Whirlpool Wire Harness
NI	W11172531 Whirlpool Wire Harness
NI	HARNESS, INFINITE SWITCH (LEFT)
NI	WIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NI	WIRING HARNESS PARTS, SCREW, GROUND
NI	WPL 8019P01360
1B	SHEET, TECH
1D	SAFER COOKING TIPS (ENGLISH
1C	DIAGRAM, WIRING
1E	Safer Cooking Tips (French)
1A	GUIDE, USE & CARE
1	INSTRUCTIONS, INSTALLATION
2	WPW10270604 Whirlpool Surface Element
3	ELMNT-SURF
4	W11517959 Whirlpool Electric Range Radiant Surface Element
5	W10751460 Whirlpool Cooktop
6	W11047722 Whirlpool Radiant Surface Element
7	W11041453 Whirlpool Surface Element
8	WPW10225448 Whirlpool Spring Assembly
9	WPW10260946 Whirlpool Panel
