IF36INDFSF 10 – REFRIGERATOR DOOR

IF36INDFSF 10 – REFRIGERATOR DOOR

Written by

in

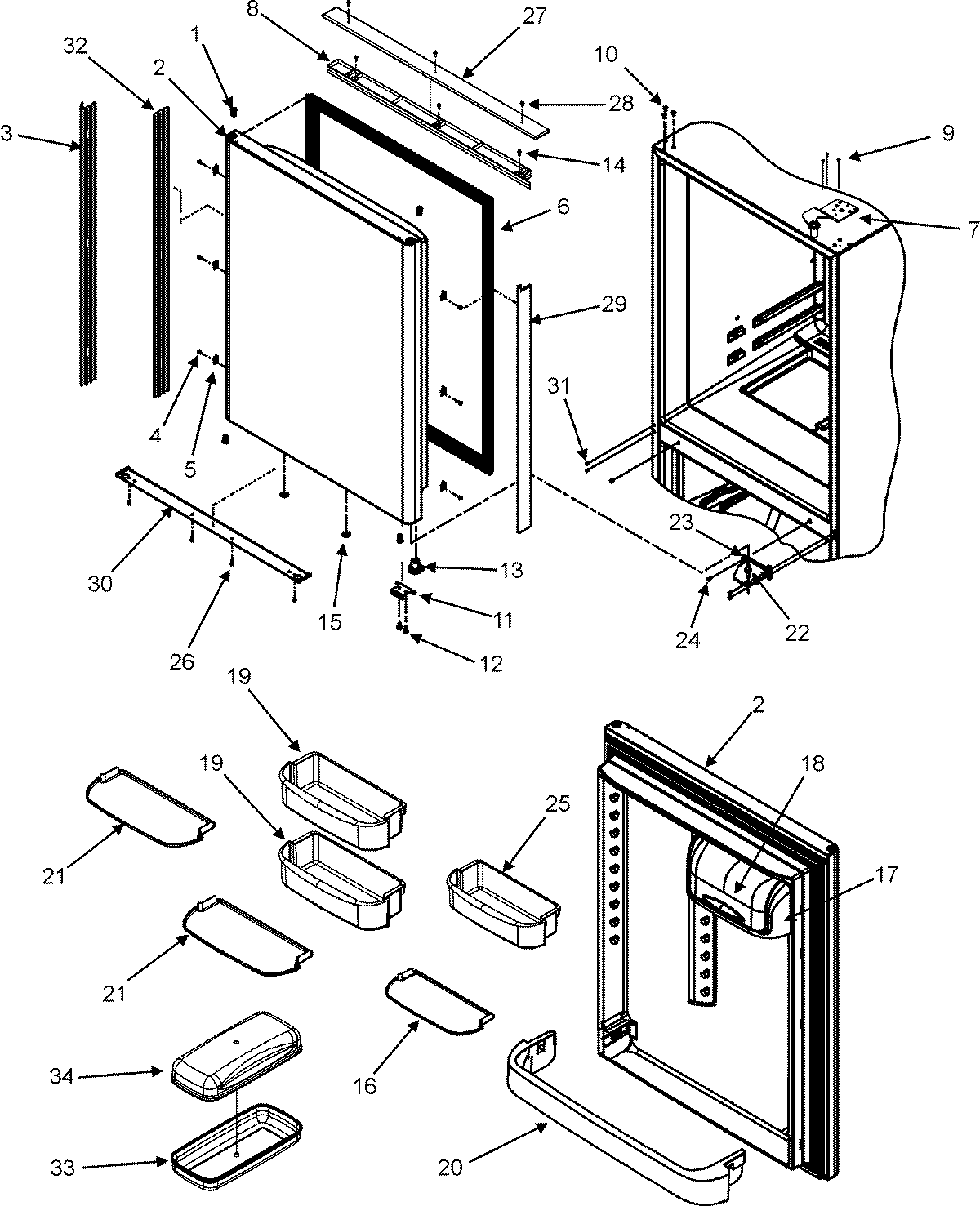

IF36INDFSF 10 – REFRIGERATOR DOOR

Products

PositionProduct
167004978 Whirlpool Refrigerator Black Door Bushing
2DOOR ASSY., REF. FOAM (BLK)
3TRIM, DOOR (LT-STNLS)
4MAY 67006767
567002451 Whirlpool Refrigerator Handle Clip Assembly
6W10849442 Whirlpool Refrigerator FIP Gasket
7HINGE, TOP (LT-BLK)
712626910ED Whirlpool Refrigerator Door Hinge
8EXTENSION, REF DR (BLK)
9WP489349 Whirlpool Refrigerator Screw
10MAY M0310731
11W11708403 Whirlpool Door Stop
13WP67003639 Whirlpool Refrigerator Closer
14SCREW 1“
1567004838 Whirlpool Refrigerator Button Vent Plug
16MAY 67006906
17WP67001279 Whirlpool Refrigerator Dairy Tray
18WP67003637 Whirlpool Dairy Door
19MAY 67003776
20Retainer, Ref Door
21MAY 67007055
22WP67006642 Whirlpool Refrigerator Pin
23HINGE, CENTER (BLK)
24WP67006380 Whirlpool Screw
25WPW10371193 Whirlpool Refrigerator Door Bin
26WP98165 Whirlpool Screw
27MAY 67006124
28SCREW
29TRIM, DOOR (RT-STNLS)
30MAY 67006122
31MAY 67006400
32MAY 67007086
33MAY 67004404
34MAY 67004405
