IF42BNDBOL 02 – COMPRESSOR
Written by
in

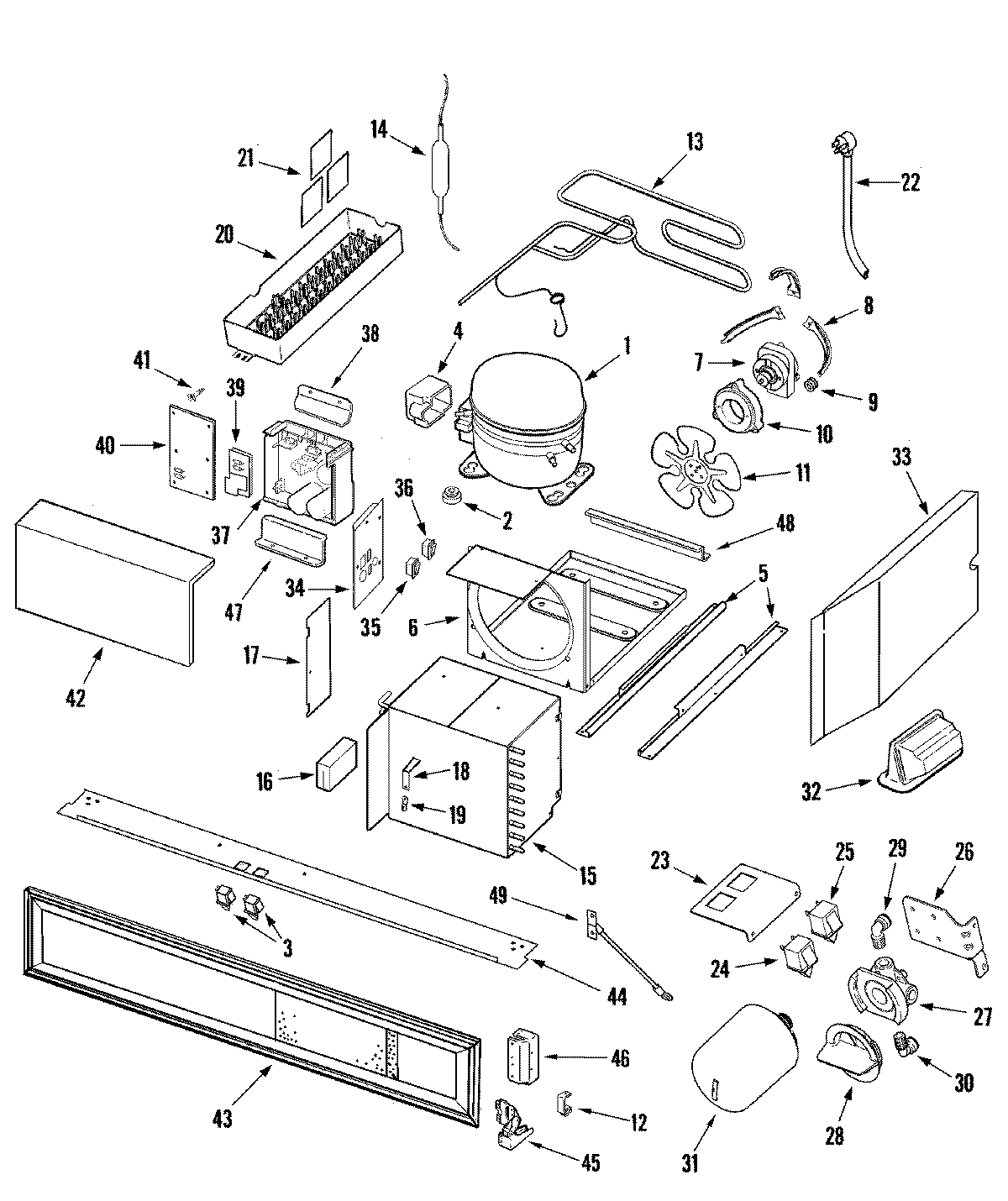

IF42BNDBOL 02 – COMPRESSOR
Products
Position
Product
1
MAY 67001333
1
MAY 12002741
2
WP4387558 Whirlpool Refrigerator Compressor Grommet
3
MAY 67002538
3
MAY 67001368
4
WP61002138 Whirlpool Refrigerator Terminal Cover
5
WP489478 Whirlpool Refrigerator Screw
5
MAY 67001334
6
MAY 67001335
7
MAY 61006190
7
WP90767 Whirlpool Screw
8
MAY 61001414
9
GROMMET, BRACKET
10
MAY 67001336
10
MAY 61005325
11
MAY 61006191
12
MAY 67006553
13
MAY 67001894
14
WPW10143759 Whirlpool Dryer Filter
15
MAY 67005115
16
MAY 67001339
17
MAY 67001340
18
MAY 67001341
19
MAY 65275-33
19
MAY 67001342
20
MAY 67001343
21
MAY 67002534
22
MAY 67002535
23
MAY 67001347
25
MAY 67003198
26
MAY 67001350
26
MAY 67001349
27
MAY 67001352
28
MAY 61003791
30
MAY 67001351
31
MAY 67006273
32
MAY 67001353
32
MAY 67001904
33
MAY 67001354
34
MAY 67001355
35
MAY 67001356
36
MAY 67001357
37
12002799 Whirlpool Refrigerator Electronic Control Board
38
MAY 67006252
39
WP67001360 Whirlpool Power Supply Control Board
40
MAY 67006253
41
MAY 67001528
42
MAY 67006164
43
MAY 67006554
44
MAY 67001838
45
HINGE (LT)
45
MAY 67006170
45
MAY 67001328
46
MAY 67006171
47
MAY 61002819
47
MAY 67006254
48
WP489399 Whirlpool Refrigerator Screw
48
MAY 67006256
49
MAY 67005166
50
MAY 67006166
50
MAY 67001366
50
MAY 67001365
50
MAY 67001363
50
MAY 67006167
←
