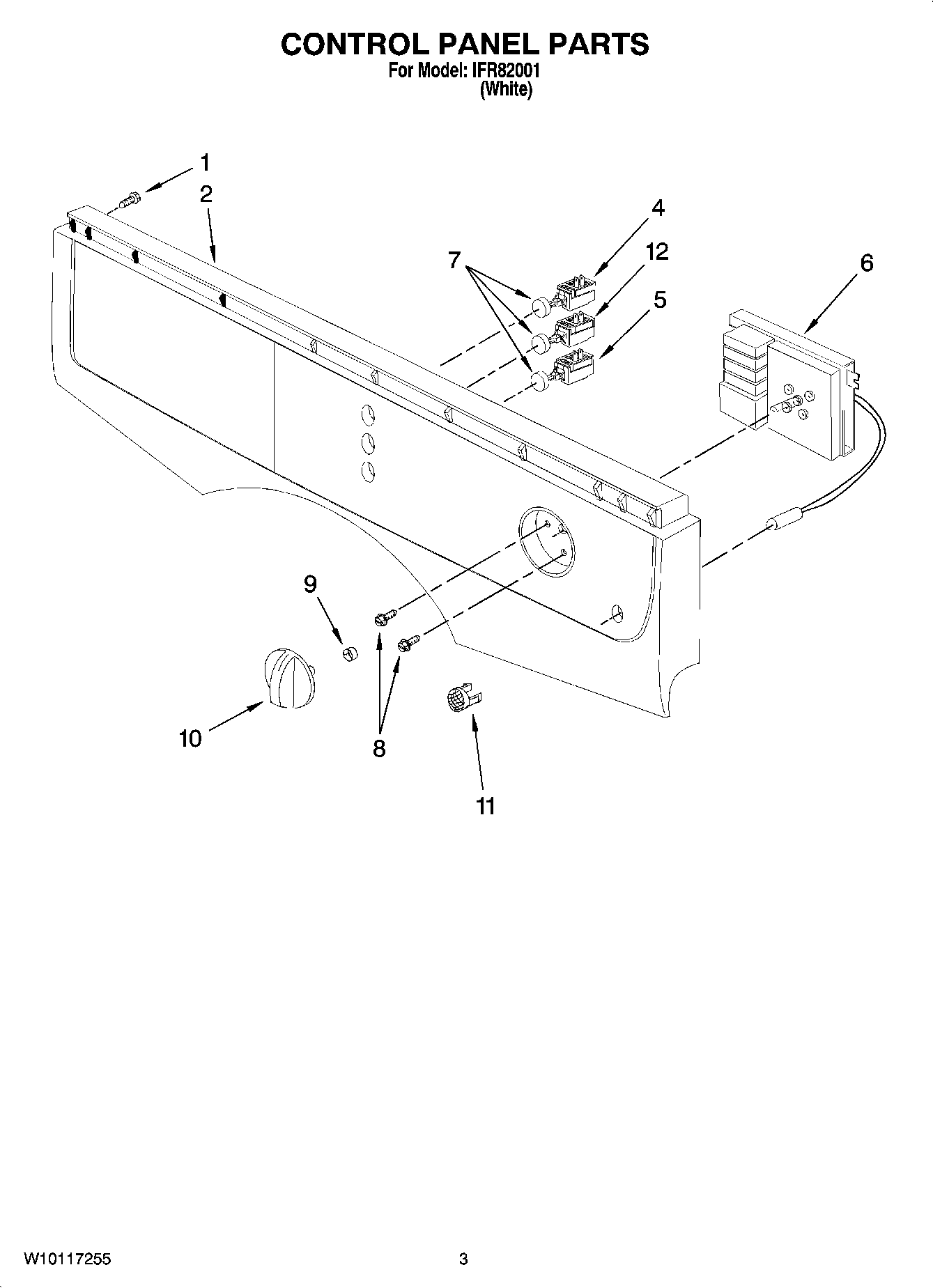

IFR82001 02 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	SCREW
2	Control Panel
4	280110 Whirlpool Plug Switch
5	SWITCH & BUTTON ASSEMBLY (ON/OFF)
6	Timer & Indicator Light Assembly (Indicator Light Not Serviced Separately)
7	Button, Push
8	Screw
9	WP8182361 Whirlpool Spring
10	Knob
11	Lens, Indicator
12	SWITCH & BUTTON ASSEMBLY (TEMPERATURE)
