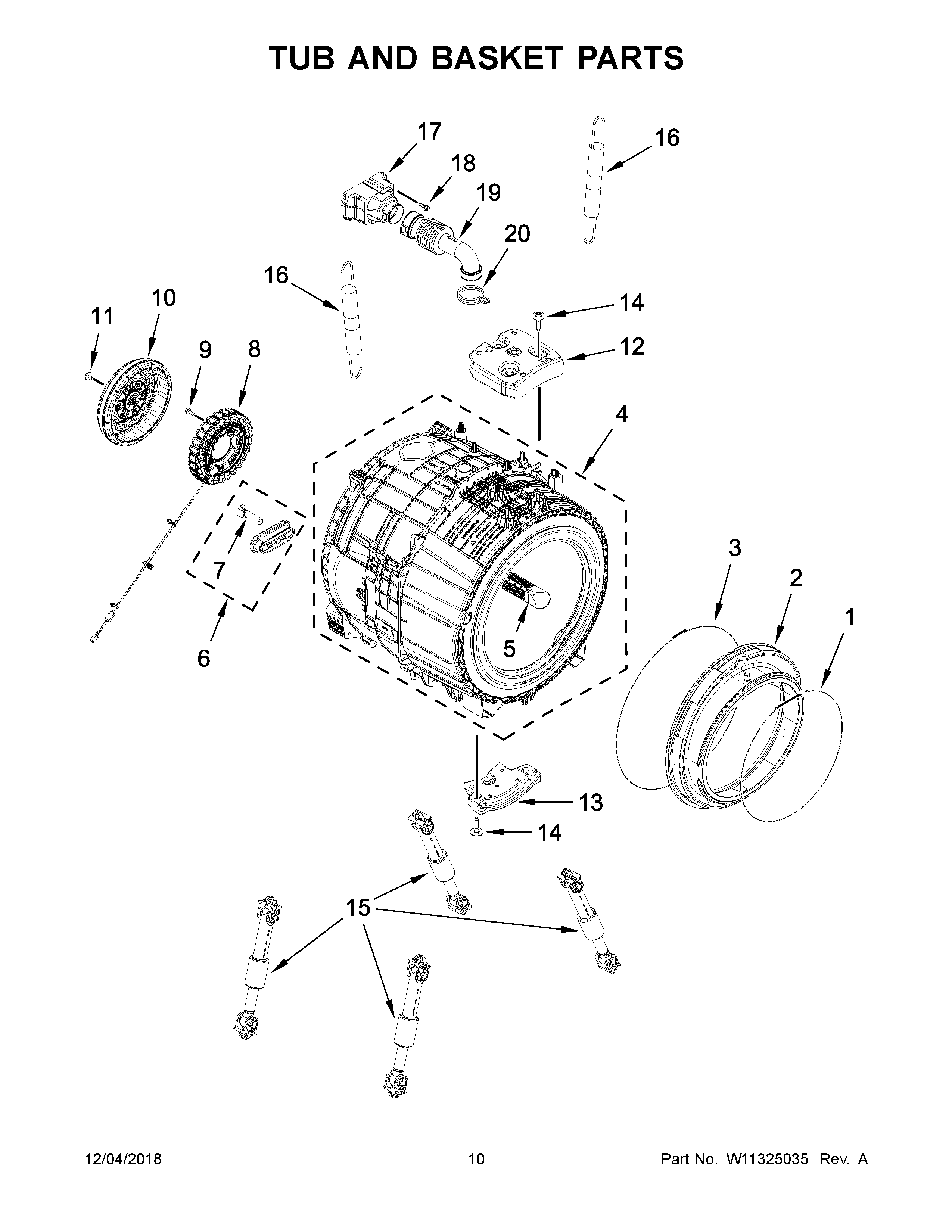

IFW5900HW0 06 – TUB AND BASKET PARTS

Products

Position	Product
1	CLAMP
2	BELLOW
3	W11314649 Whirlpool Clamp
4	W11460604 Whirlpool TUB & DRUM Assembly SHORT VENT
5	W11460395 Whirlpool Baffle
6	W11320546 Whirlpool Sensor Assembly
7	W11314664 Whirlpool Heater
8	W11354541 Whirlpool Stator
9	W11314661 Whirlpool Screw
10	W11314361 Whirlpool Rotor Assembly
11	W11314657 Whirlpool Screw
12	W11314650 Whirlpool Counterweight
13	W11607191 Whirlpool Counterweight
14	W11314651 Whirlpool Screw
15	SHOCK-ABSR (1 EA)
16	SPRING
17	W11316248 Whirlpool Housing
18	W11230114 Whirlpool Screw Assembly
19	W11316247 Whirlpool Hose Assembly
20	WP371502 Whirlpool Clamp
