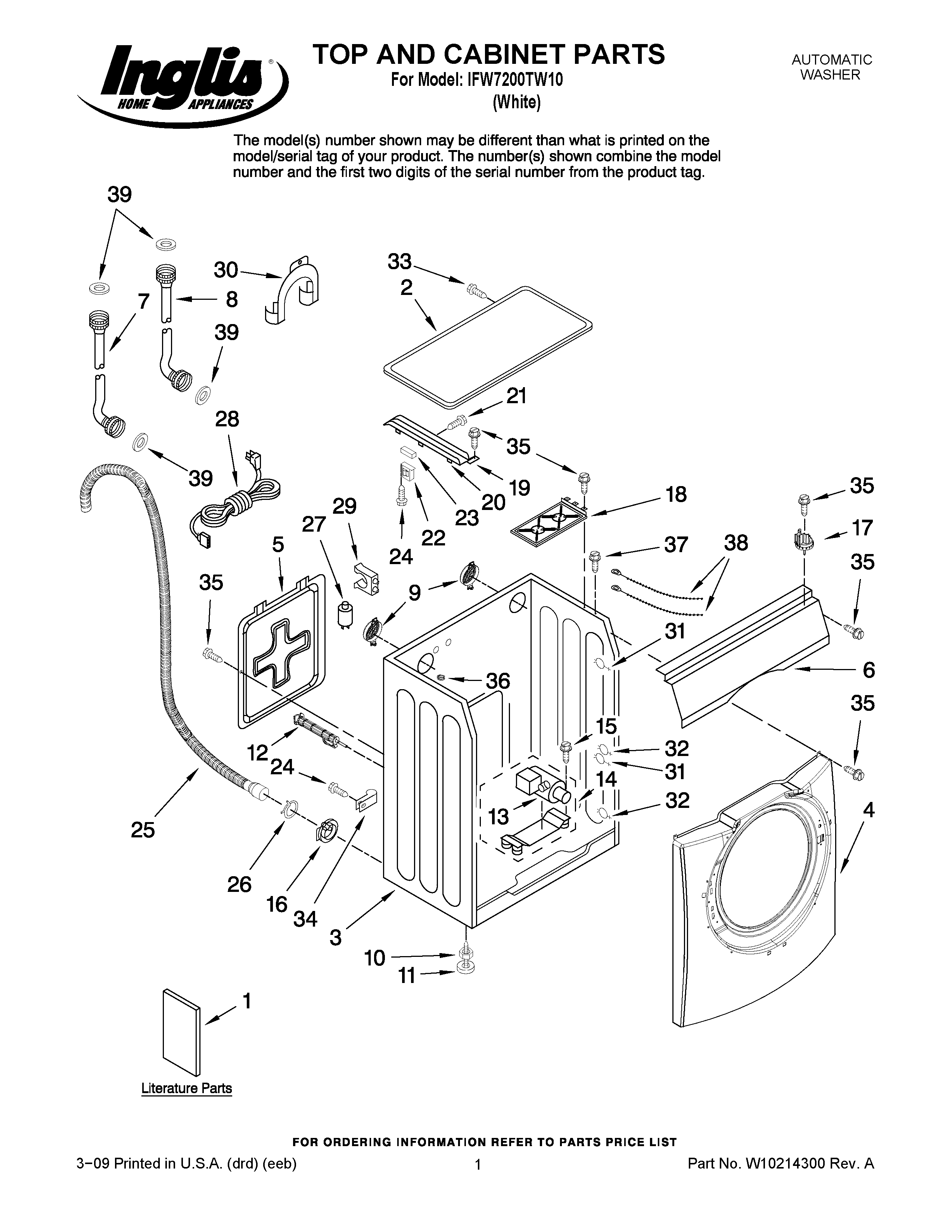

IFW7200TW10 01 – TOP AND CABINET PARTS

Products

Position	Product
1	TECH SHEET
1	USE & CARE GUIDE
1	INSTALLATION INSTRUCTIONS
2	TOP
3	CABINET
4	PANEL, FRONT
5	REAR PANEL
6	FRAME, UPPER FRONT
7	HOSE, WATER INLET (HOT)
8	HOSE, WATER INLET (COLD)
9	CAP, VENTILATION ASSEMBLY
10	NUT, LOCK (4)
11	FOOT, LEVELING (4)
12	BOLT, SHIPPING (4)
13	WP34001340 Whirlpool Drain Pump
14	WPW10175948 Whirlpool Water Pump
15	BOLT
16	GUIDE, DRAIN HOSE
17	SWITCH, PRESSURE SENSOR
18	ABSORBER ASSEMBLY
19	CHANNEL, HARNESS
20	BRACKET, HARNESS CHANNEL
21	WP98008545 Whirlpool Screw
22	TRANS-REACTOR
23	BRACKET, HEATER
24	SCREW (5)
25	HOSE, DRAIN
26	WP596669 Whirlpool Hose Clamp
27	FILTER, EMI
28	CORD, POWER
29	CLIP, OUTER HOSE HOLDER
30	U-BEND, DRAIN HOSE
31	CLIP, HARNESS
32	CLIP, HARNESS
33	SCREW (2)
34	CLAMP, PRESSURE HOSE RETAINER
35	SCREW
36	GUIDE, SPRING-WASHER ONLY
37	SCREW, SPECIAL
38	WPW10339879 Whirlpool Wire Tie
39	WASHER
