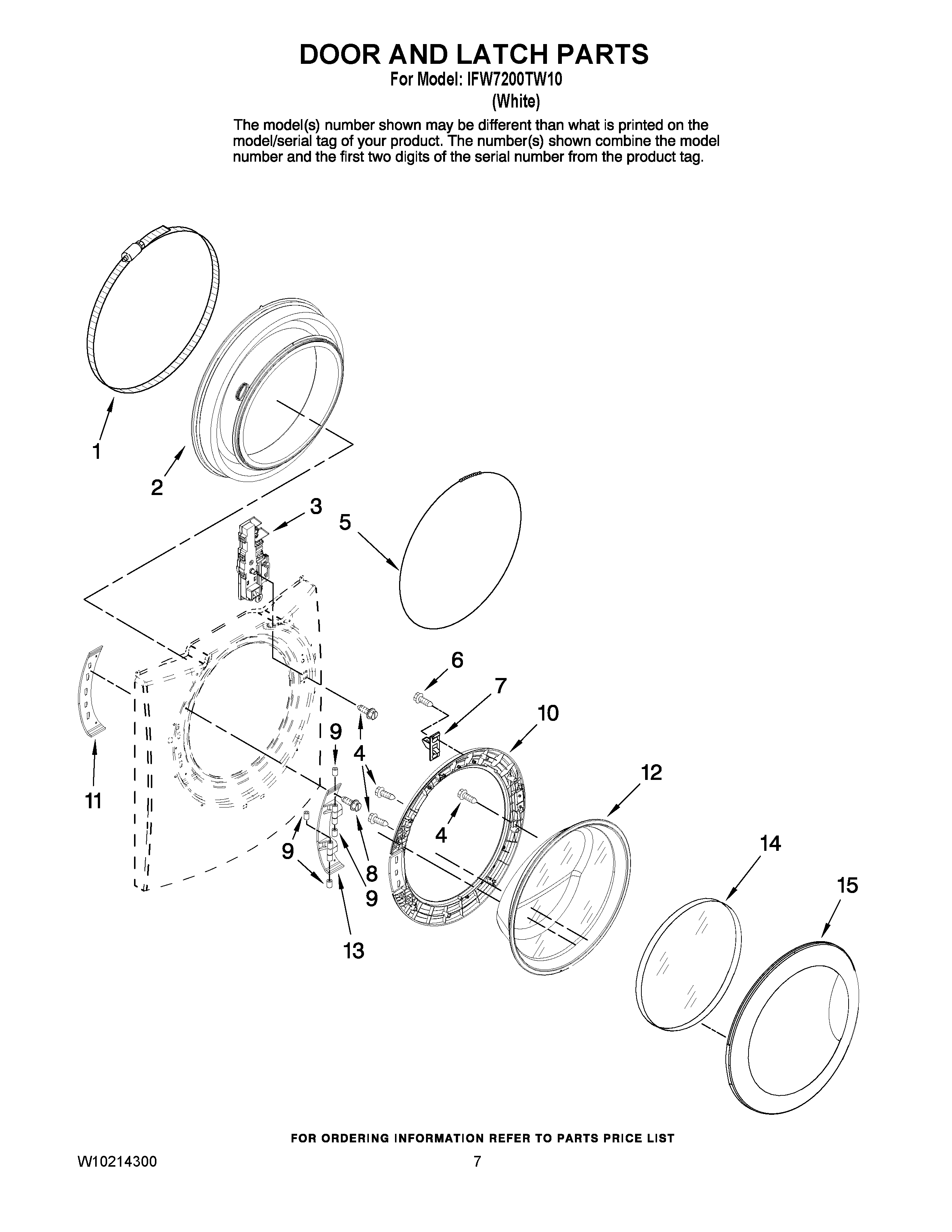

IFW7200TW10 04 – DOOR AND LATCH PARTS

Products

Position	Product
1	CLAMP, BELLOW TO TUB
2	WP34001432 Whirlpool Bellow
3	WP8182634 Whirlpool Latch Assembly
4	SCREW
5	CLAMP, BELLOW TO FRONT PANEL
6	SCREW
7	LEVER-DOOR
8	SCREW (2)
9	WP34001192 Whirlpool Hinge Guide
10	FRAME, DOOR BACK SUPPORT
11	BRACKET, HINGE
12	GLASS, DOOR
13	HINGE, DOOR
14	SCREEN, DOOR
15	FRAME, DOOR FRONT
