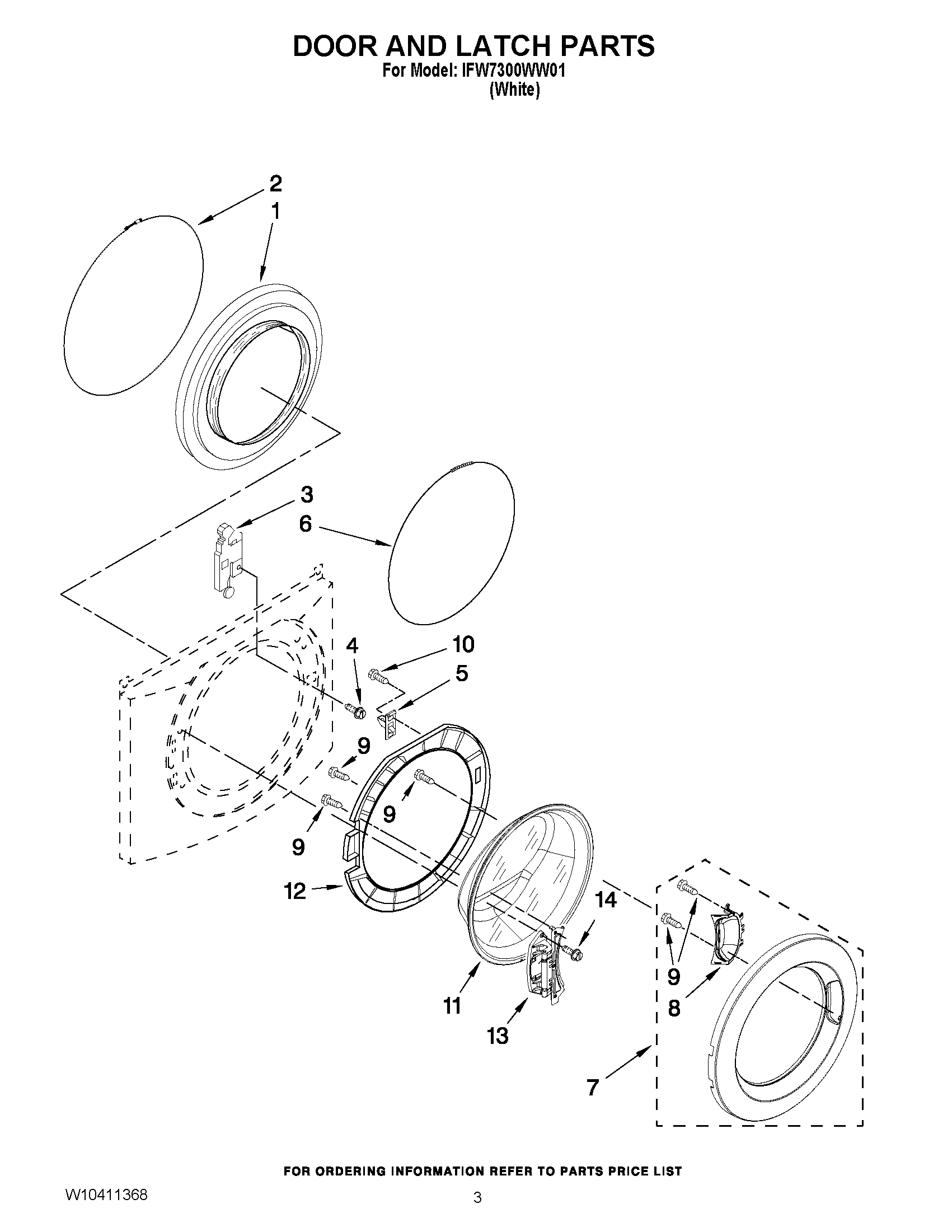

IFW7300WW01 02 – DOOR AND LATCH PARTS

IFW7300WW01 02 – DOOR AND LATCH PARTS

Written by

in

IFW7300WW01 02 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10381562 Whirlpool Front Load Washer Door Boot
2WP8540108 Whirlpool Boot Spring Clamp
3WPW10253483 Whirlpool Latch
4WP8540725 Whirlpool Screw Assembly
5WP8540221 Whirlpool Door Strike Assembly
6W11032829 Whirlpool Clamp Assembly
7WPW10300867 Whirlpool Frame Assembly
8W10300865 Whirlpool Handle Assembly
9WP8540282 Whirlpool Screw
10W11230114 Whirlpool Screw Assembly
11WPW10388315 Whirlpool Glass Door
12WPW10207904 Whirlpool Frame
13WPW10210893 Whirlpool Hinge
14WP489442 Whirlpool Refrigerator Screw
