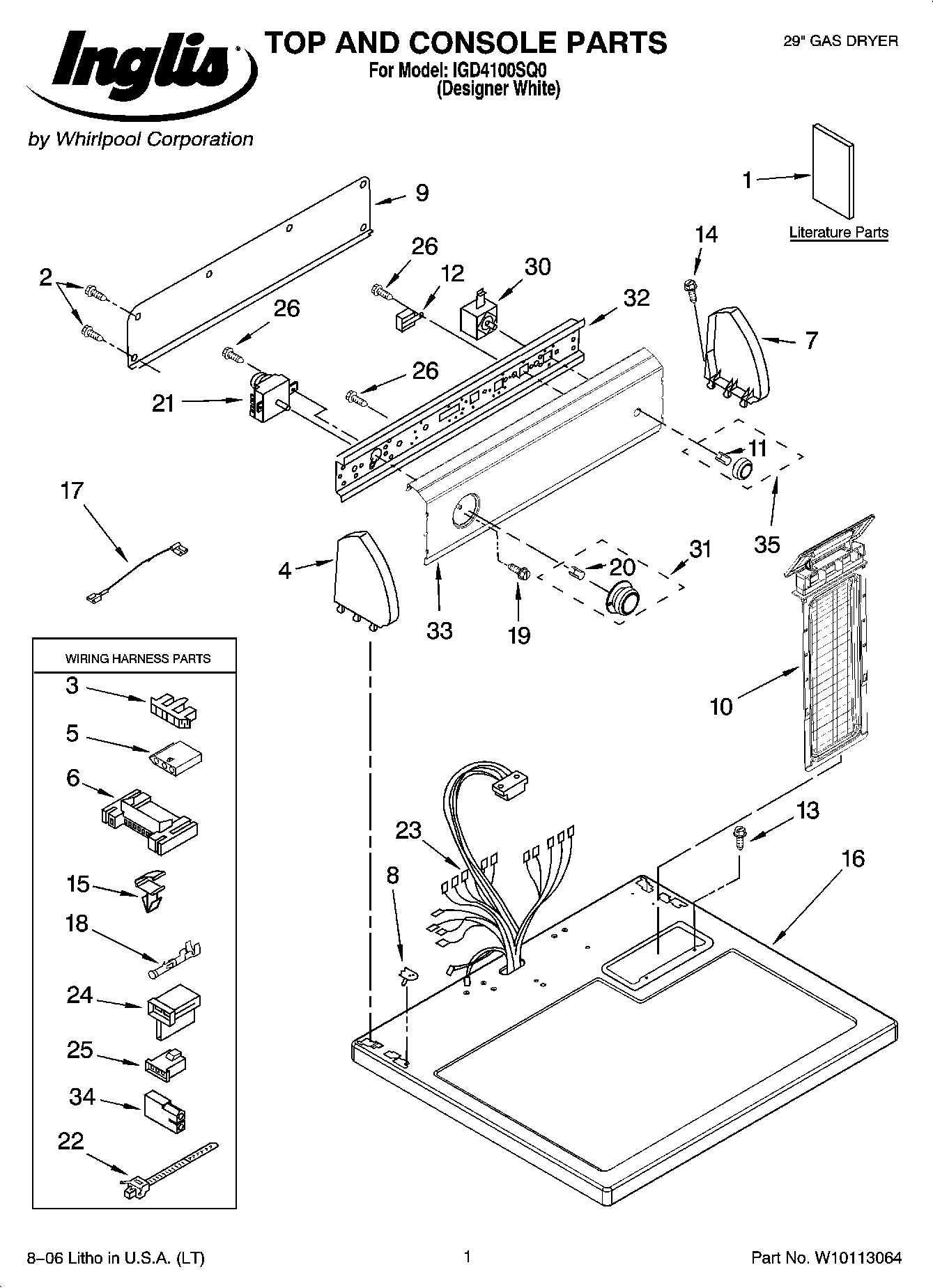

IGD4100SQ0 01 – TOP AND CONSOLE PARTS

IGD4100SQ0 01 – TOP AND CONSOLE PARTS

Written by

in

IGD4100SQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Sheet, Cycle Feature
1Installation Instructions
1Use & Care Guide
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1WPL 677818
1Wiring Diagram
2WP693995 Whirlpool Screw
3Connector, Timer
53936144 Whirlpool Connector
63395683 Whirlpool Connector
7279960 Whirlpool Endcap Assembly
8WP357213 Whirlpool Hinge Stopper
9W10103406 Whirlpool Rear Panel
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP694419 Whirlpool Buzzer Adjuster
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WP3394427 Whirlpool Clip
16Top
17Wire, Jumper (Blue)
17Wire, Jumper (Black)
18WP94614 Whirlpool Terminal
193400859 Whirlpool Screw
20WP688805 Whirlpool Spring Clip
21Timer
22Tie, Cable
238299875 Whirlpool Wire Harness
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
26WP90767 Whirlpool Screw
30WP3977456 Whirlpool Start Switch
31WP8557455 Whirlpool Knob Timer
32Bracket, Control
33Panel, Control
34Receptacle, Latching (2-Way) (Uses Terminal 94614)
35Knob, Push-To-Start
