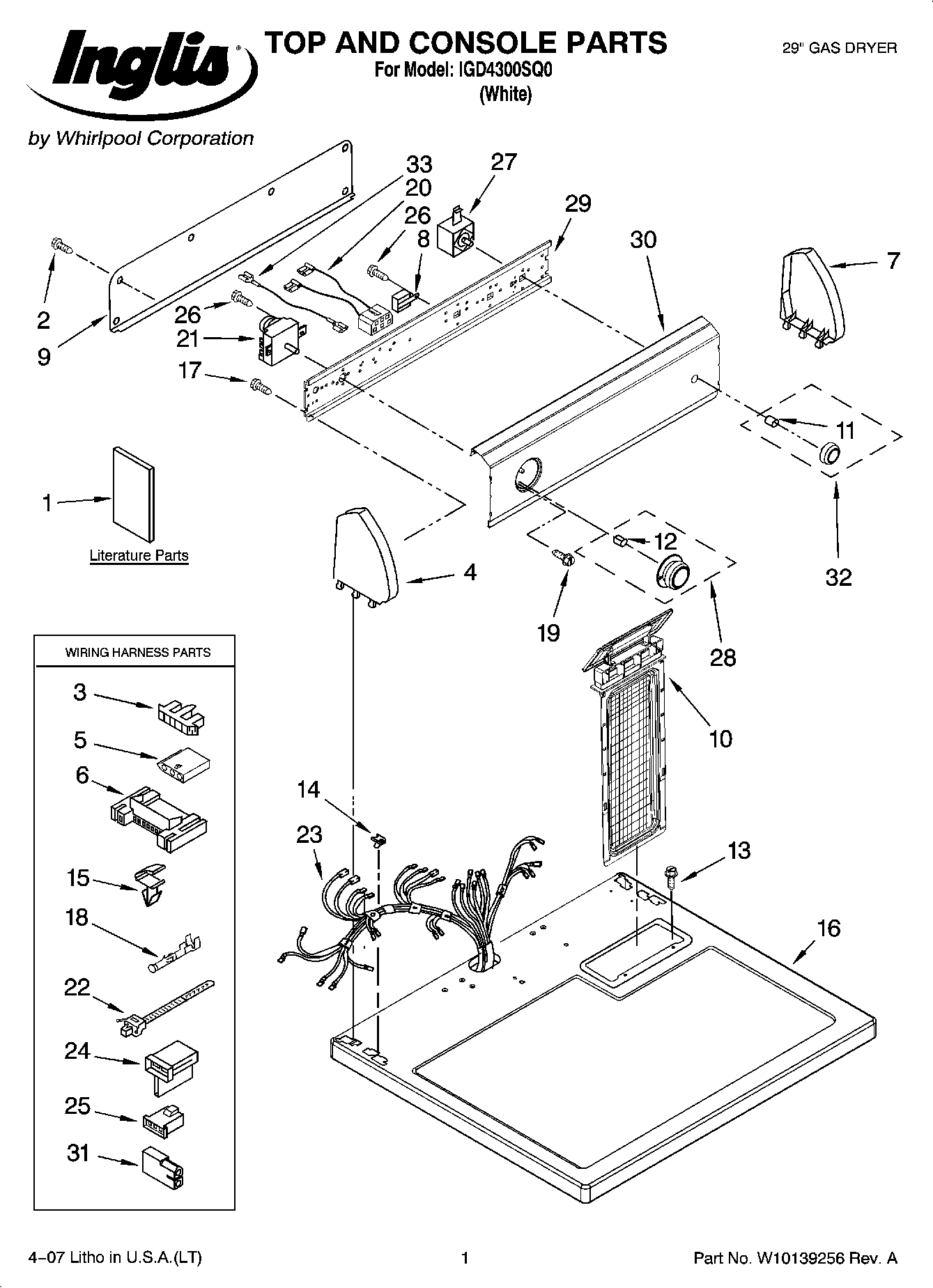

IGD4300SQ0 01 – TOP AND CONSOLE PARTS

IGD4300SQ0 01 – TOP AND CONSOLE PARTS

Written by

in

IGD4300SQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Sheet, Cycle Feature
1Wiring Diagram
1Installation Instructions
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Use & Care Guide
1WPL 677818
2WP693995 Whirlpool Screw
3Connector, Timer
53936144 Whirlpool Connector
63395683 Whirlpool Connector
7279960 Whirlpool Endcap Assembly
8WP694419 Whirlpool Buzzer Adjuster
9W10103406 Whirlpool Rear Panel
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP688805 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
14WP357213 Whirlpool Hinge Stopper
15WP3394427 Whirlpool Clip
16Top
17WP388326 Whirlpool Screw
18WP94614 Whirlpool Terminal
193400859 Whirlpool Screw
20Wire, Jumper (Blue)
21WP8299764 Whirlpool Timer
22Tie, Cable
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
26WP90767 Whirlpool Screw
27WP3977456 Whirlpool Start Switch
28WP8557455 Whirlpool Knob Timer
29Bracket, Control
30Panel, Control
31Receptacle, Latching (2-Way) (Uses Terminal 94614)
32Knob, Push-To-Start
33Wire, Jumper (Black)
