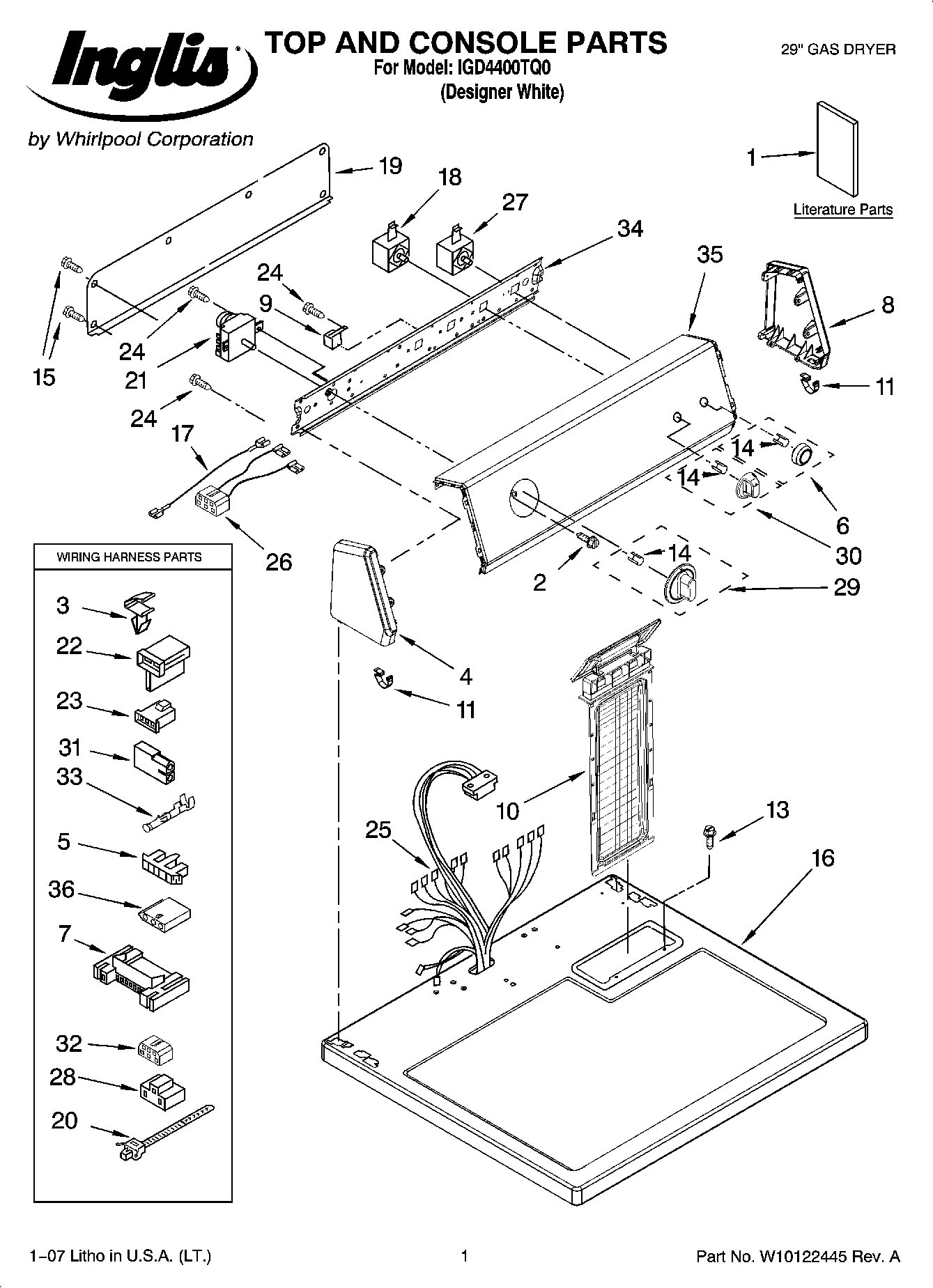

IGD4400TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Sheet, Cycle Feature
1	Wiring Diagram
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Use & Care Guide
1	WPL 677818
1	Instructions, Installation
2	3400859 Whirlpool Screw
3	WP3394427 Whirlpool Clip
4	Cap, End (L.H.)
5	Connector, Timer
6	Knob, Push-To-Start
7	3395683 Whirlpool Connector
8	Cap, End (R.H.)
9	WP694419 Whirlpool Buzzer Adjuster
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8312709 Whirlpool Endcap Clip
13	W11693756 Whirlpool Screw Assembly
14	WP8536939 Whirlpool Spring Clip
15	WP693995 Whirlpool Screw
16	WP8563663 Whirlpool Top Assembly
17	Wire, Jumper (Black)
18	WP3399639 Whirlpool Switch
19	W10103406 Whirlpool Rear Panel
20	Tie, Cable
21	WP8299765 Whirlpool Timer
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
24	WP90767 Whirlpool Screw
25	8299878 Whirlpool Wire Harness
26	8539893 Whirlpool Wire Harness
27	WP3398095 Whirlpool Dryer Start Relay
28	3401144 Whirlpool Connector
29	Timer-Knob Assembly
30	WPW10110063 Whirlpool Knob
31	Receptacle, Latching (2-Way) (Uses Terminal 94614)
32	Block, Disconnect
33	WP94614 Whirlpool Terminal
34	Bracket, Control
35	Panel, Control
36	3936144 Whirlpool Connector
