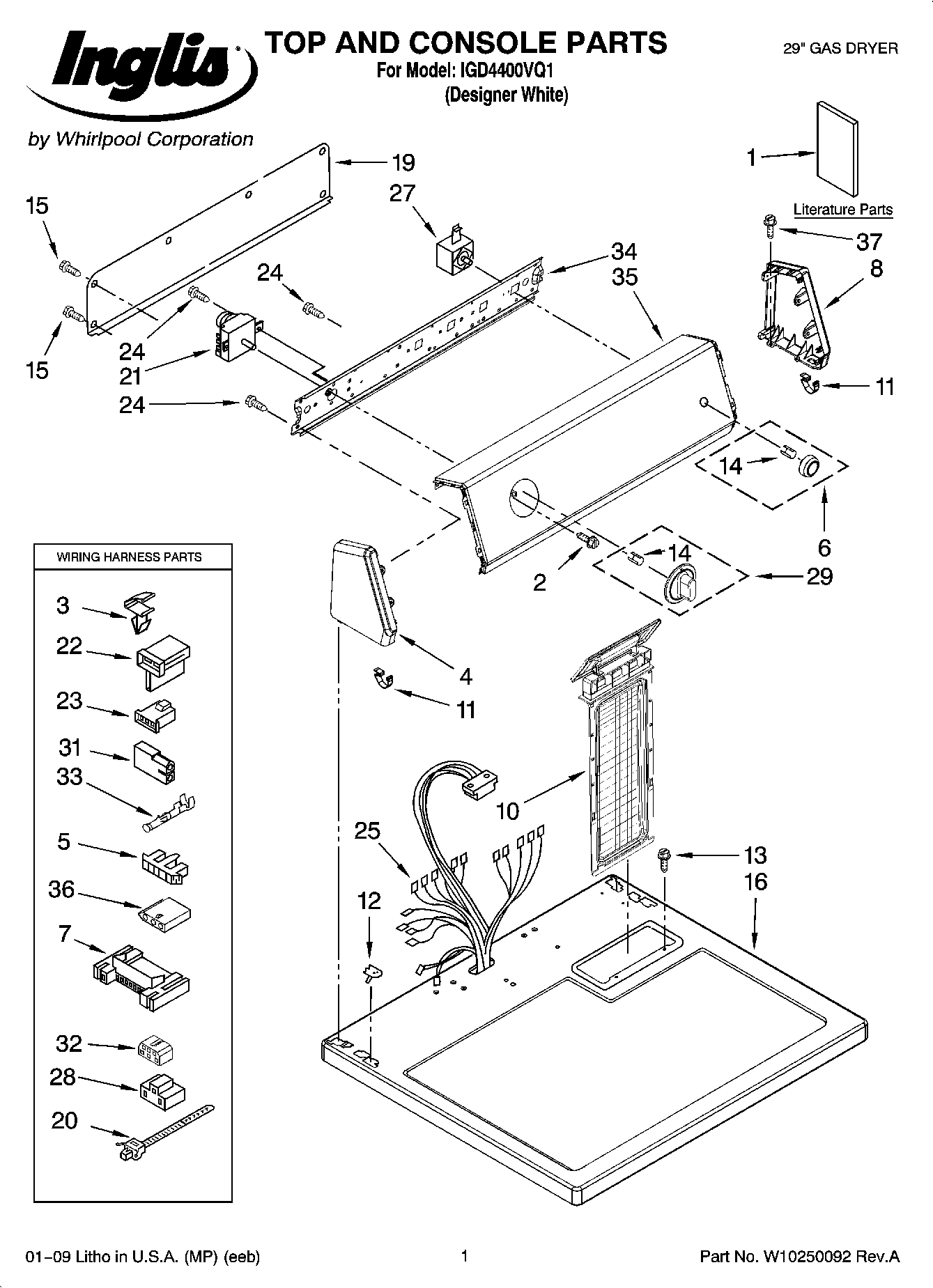

IGD4400VQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Sheet, Cycle Feature
1	Wiring Diagram
1	Use & Care Guide
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Installation Instructions
2	3400859 Whirlpool Screw
3	WP3394427 Whirlpool Clip
5	Connector, Timer
6	Knob, Push-To-Start
7	3395683 Whirlpool Connector
8	279960 Whirlpool Endcap Assembly
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP688805 Whirlpool Spring Clip
12	WP357213 Whirlpool Hinge Stopper
13	W11693756 Whirlpool Screw Assembly
14	WP8536939 Whirlpool Spring Clip
15	WP693995 Whirlpool Screw
16	Top
19	W10103406 Whirlpool Rear Panel
20	Tie, Cable
21	WPW10185971 Whirlpool Timer
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
24	WP90767 Whirlpool Screw
25	W10186074 Whirlpool Wire Harness
27	WP3977456 Whirlpool Start Switch
28	3401144 Whirlpool Connector
29	WP8557455 Whirlpool Knob Timer
31	Receptacle, Latching (2-Way) (Uses Terminal 94614)
32	Block, Disconnect
33	WP94614 Whirlpool Terminal
34	Bracket, Control
35	Panel, Control
36	3936144 Whirlpool Connector
37	WP388326 Whirlpool Screw
