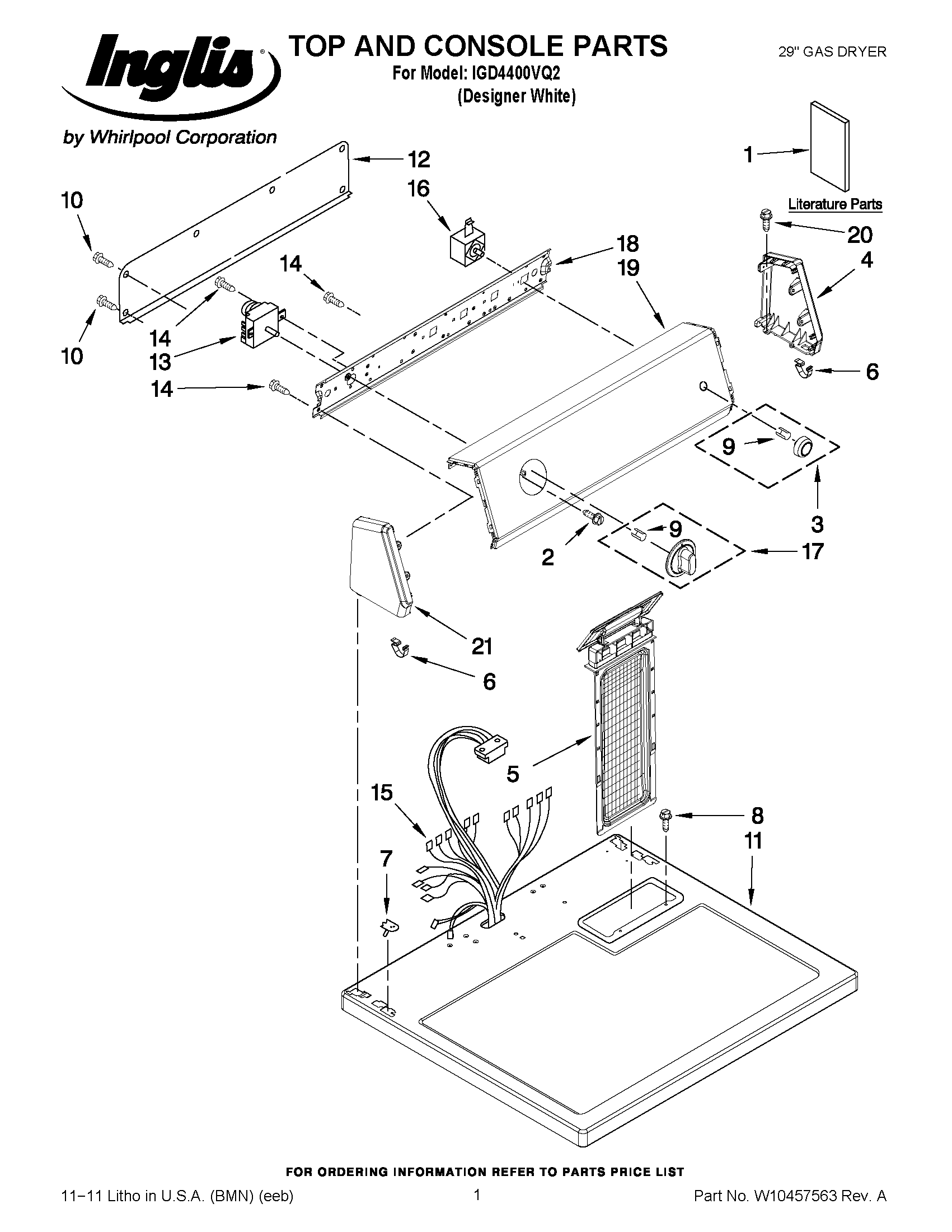

IGD4400VQ2 01 – TOP AND CONSOLE PARTS

IGD4400VQ2 01 – TOP AND CONSOLE PARTS

Written by

in

IGD4400VQ2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION, INSTRUCTIONS
1Wiring Diagram
1GUIDE, USE & CARE
23400859 Whirlpool Screw
3Knob, Push-To-Start
4279960 Whirlpool Endcap Assembly
5WPW10717210 Whirlpool Dryer Lint Screen Filter
6WP688805 Whirlpool Spring Clip
7WP357213 Whirlpool Hinge Stopper
8W11693756 Whirlpool Screw Assembly
9WP8536939 Whirlpool Spring Clip
10WP693995 Whirlpool Screw
11Top
12W10103406 Whirlpool Rear Panel
13WPW10185971 Whirlpool Timer
14WP90767 Whirlpool Screw
15W10186074 Whirlpool Wire Harness
16WP3977456 Whirlpool Start Switch
17WP8557455 Whirlpool Knob Timer
18Bracket, Control
19Panel, Control
20WP388326 Whirlpool Screw
