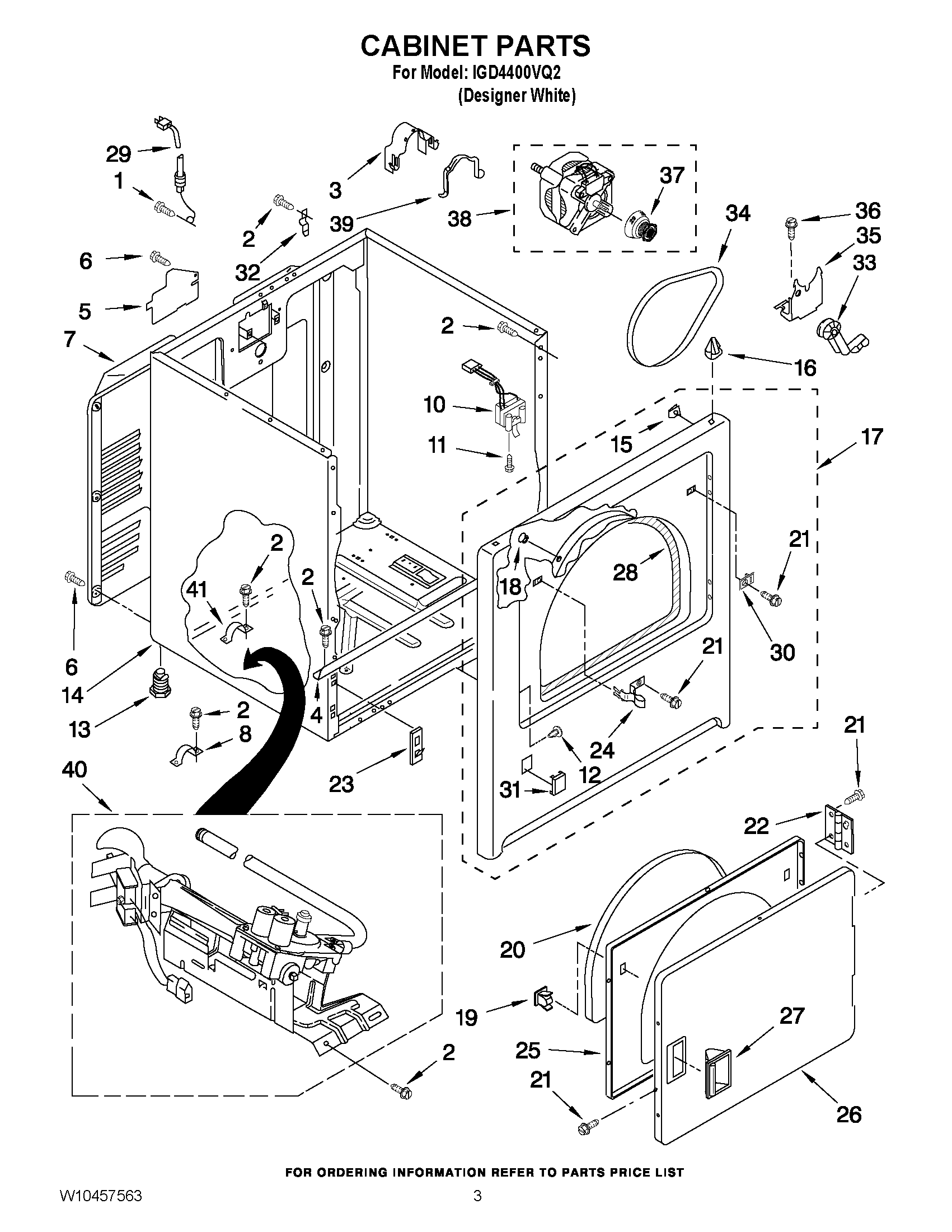

IGD4400VQ2 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WP3390631 Whirlpool Screw
2	SCREW
3	WP3404162 Whirlpool Clamp
4	BRACKET, CABINET
5	W11539855 Whirlpool Refrigerator Pump
6	WP693995 Whirlpool Screw
7	280043 Whirlpool Rear Panel
8	341029 Whirlpool Clamp
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
12	WP3404413 Whirlpool Plug
14	8533643 Whirlpool Dryer White Cabinet
15	WP98234 Whirlpool Nut
16	WP18776 Whirlpool Lock
17	W10248059 Whirlpool Panel
18	279220 Whirlpool Clip
19	WP3389441 Whirlpool Door Catch
20	SEAL-DOOR DRYER
21	WP488627 Whirlpool Refrigerator Screw
22	WPW10362431 Whirlpool Hinge Assembly
23	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
24	W11429589 Whirlpool Strike
25	WP3402341 Whirlpool Door
26	W10861227 Whirlpool Door Assembly
27	WP3405184 Whirlpool White Door Handle
28	W11035878 Whirlpool Bearing and Seal
29	W11222083 Whirlpool Power Cord
30	WP3403630 Whirlpool Plug
31	W10811916 Whirlpool Plug
32	WP8066217 Whirlpool Hinge
33	WP691366 Whirlpool Dryer Idler Pulley Assembly
34	341241 Whirlpool Dryer Drum Belt
35	WP348780 Whirlpool Base
36	3400500 Whirlpool Screw
37	WP8066184 Whirlpool Dryer Motor Pulley
38	279827 Whirlpool Dryer Drive Motor
39	CLAMP
40	W10823508 Whirlpool Gas Burner
