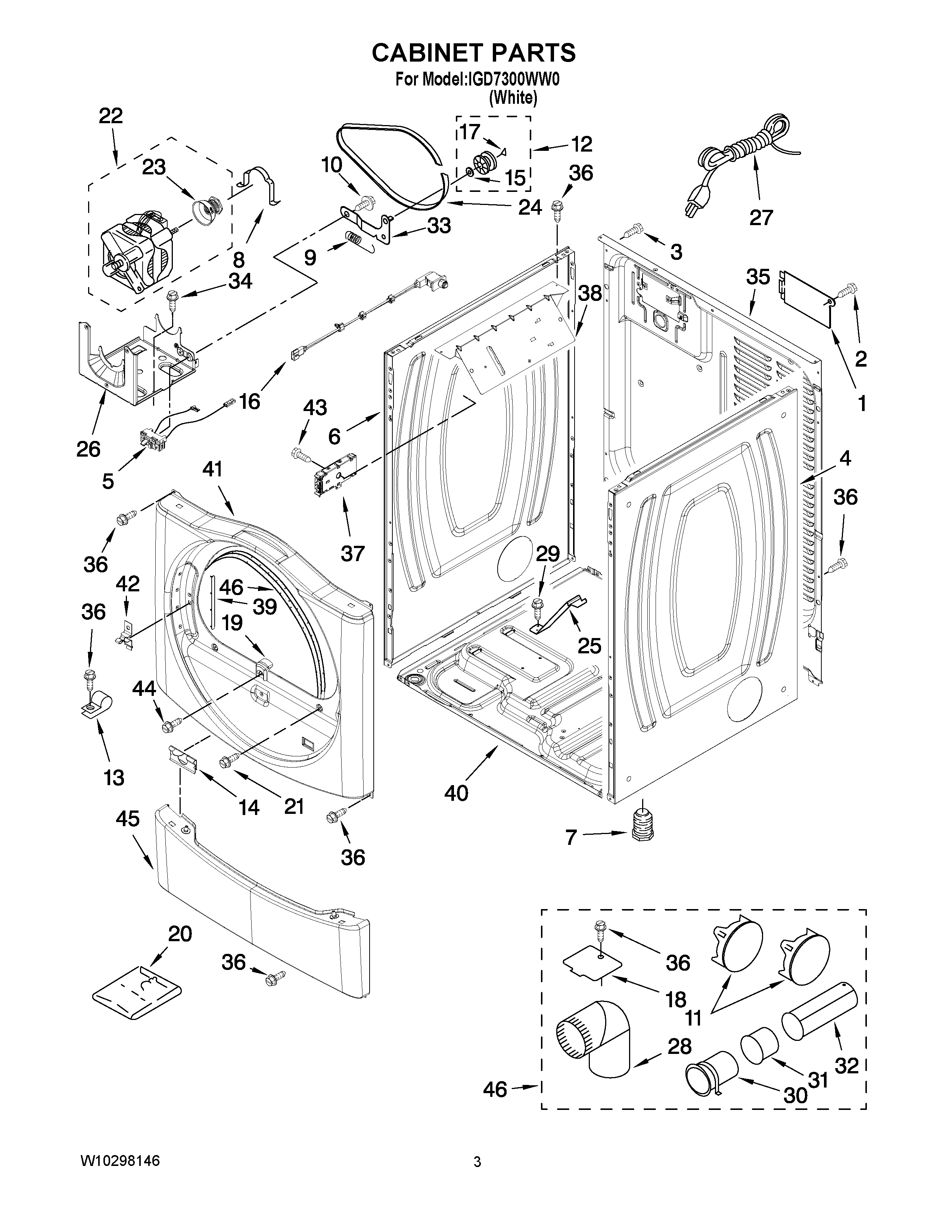

IGD7300WW0 02 – CABINET PARTS

IGD7300WW0 02 – CABINET PARTS

Written by

in

IGD7300WW0 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1W10819767 Whirlpool Cover
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4W10542714 Whirlpool Panel
5WPW10411937 Whirlpool Switch
8WP660658 Whirlpool Clamp
9WPW10446781 Whirlpool Spring
10WP3389420 Whirlpool Screw
11WPW10404617 Whirlpool Plug Assembly
12279640 Whirlpool Dryer Idler Pulley Kit
133978776 Whirlpool Bracket
14W11295573 Whirlpool Clip
15WPW10121334 Whirlpool Washer
16W10128087 Whirlpool Door Switch
18WPW10354249 Whirlpool Cover
198565083 Whirlpool Ramp Assembly
208572546 Whirlpool Washer Duet Sport Epic Stack Kit
21WP308685 Whirlpool Microwave Screw
22279787 Whirlpool Dryer Drive Motor
23W10837625 Whirlpool Dryer Motor Pulley
24661570V Whirlpool Dryer Drum Belt
25W10181903 Whirlpool Bracket
26W11481730 Whirlpool Bracket
27W11628810 Whirlpool Power Cord
28WPW10416072 Whirlpool Elbow
29WP693995 Whirlpool Screw
30WP8563747 Whirlpool Exhaust Pipe
31WPW10331278 Whirlpool Exhaust Pipe
32WP8563749 Whirlpool Exhaust Pipe
33W10837240 Whirlpool Dryer Idler Pulley
34SCREW
35Panel, Rear
36WP488729 Whirlpool Refrigerator Door Screw
37CONTROL BOARD
38WP8563727 Whirlpool Bracket
39W10085210 Whirlpool Label
40W11215531 Whirlpool Base
41W10251264 Whirlpool Panel
42WP8565122 Whirlpool Strike Assembly
44WPW10266747 Whirlpool Channel
45WP8540621 Whirlpool Toe Panel
46W10470674 Whirlpool Dryer Side Vent Exhaust Kit
46WP3387242 Whirlpool Seal
