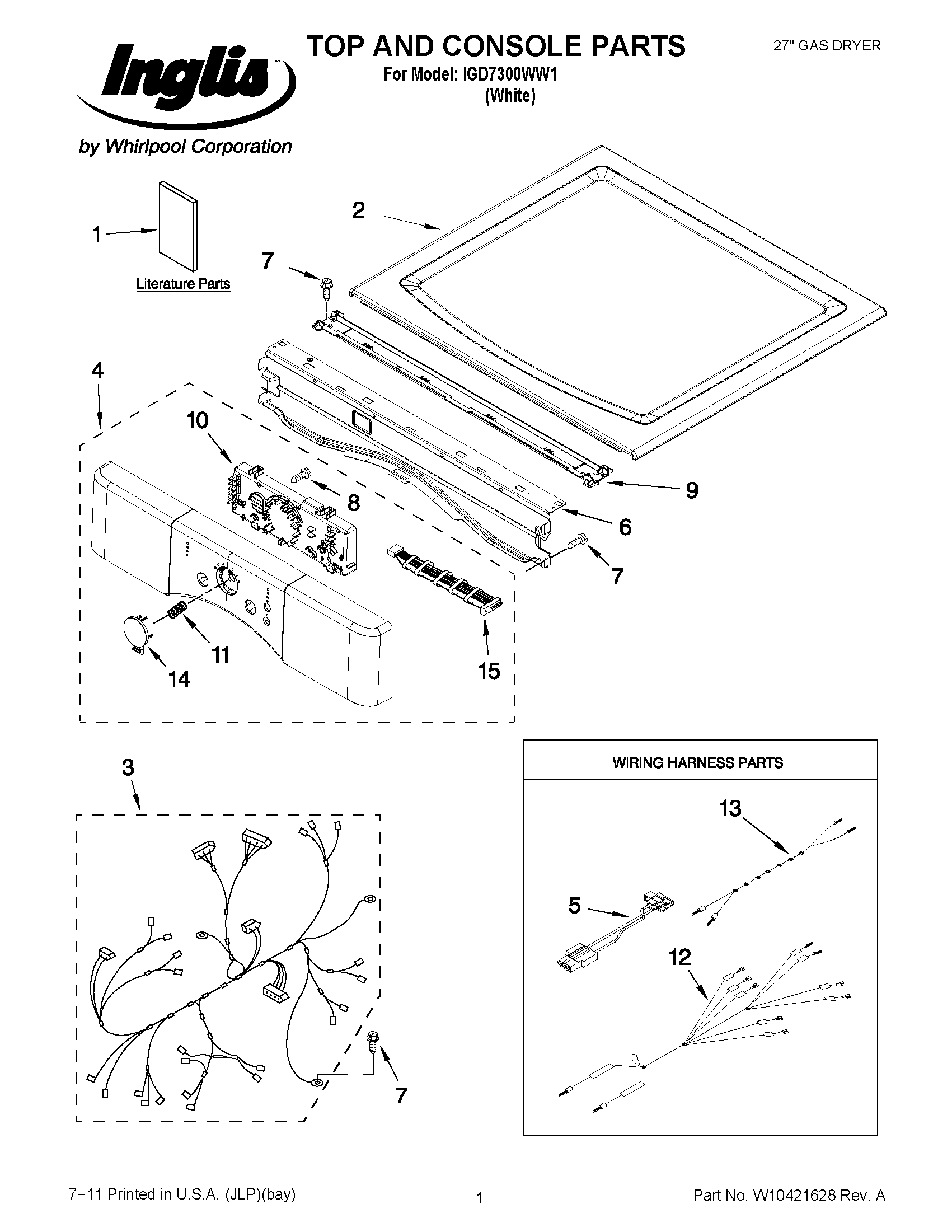

IGD7300WW1 01 – TOP AND CONSOLE PARTS

IGD7300WW1 01 – TOP AND CONSOLE PARTS

Written by

in

IGD7300WW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
2WPW10336080 Whirlpool Top Assembly
3W10251443 Whirlpool Wire Harness
4CONSOLE ASSEMBLY
5WP3406653 Whirlpool Wire Harness
6WP8565237 Whirlpool Bracket Assembly
7WP488729 Whirlpool Refrigerator Door Screw
8W10006580 Whirlpool Screw
9WPW10266747 Whirlpool Channel
10ASSEMBLY, USER INTERFACE
11W10215807 Whirlpool Spring
12WP3401850 Whirlpool Wire Harness
13HARNESS, MOISUTRE SENSOR
14W10212800 Whirlpool Push Button Switch
15W10259049 Whirlpool Wire Harness
