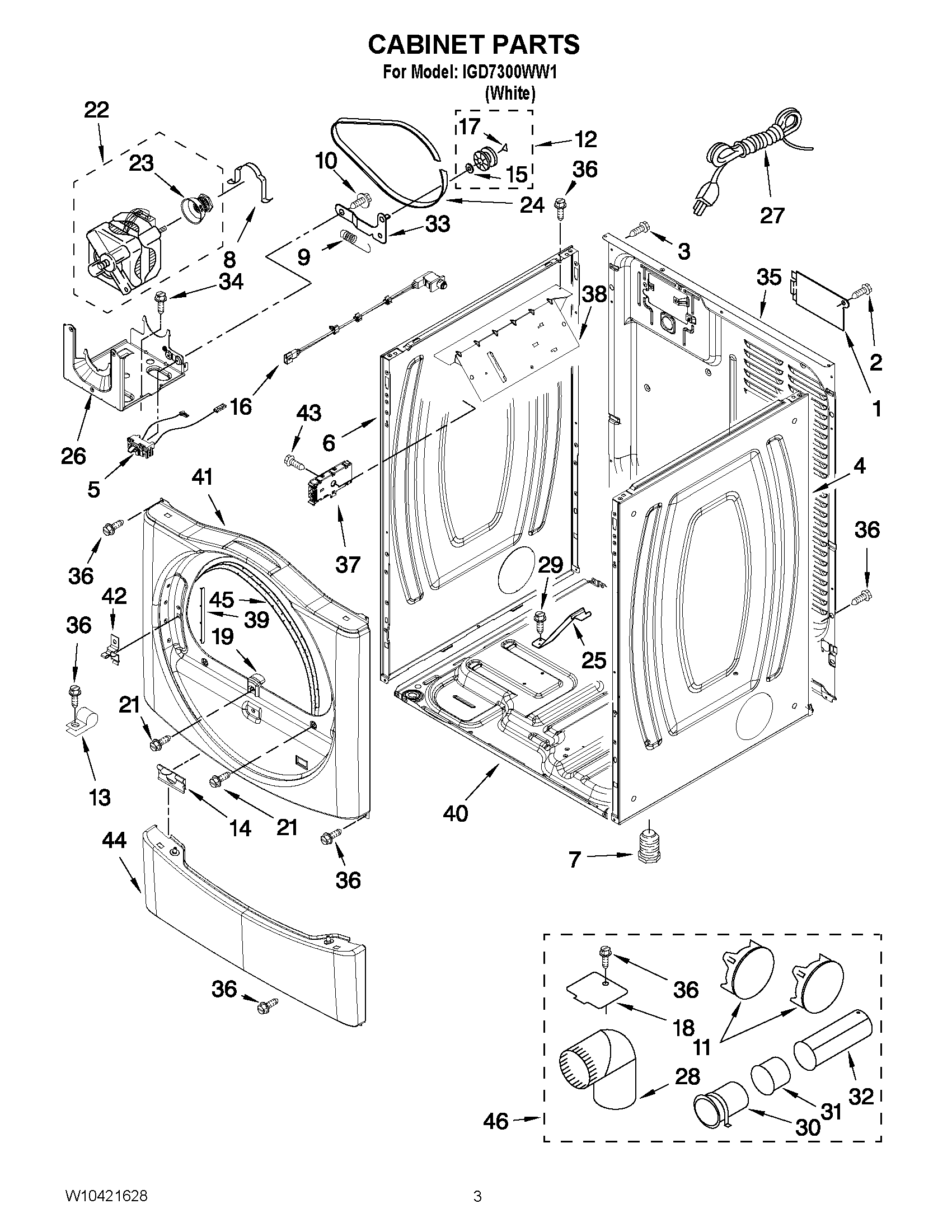

IGD7300WW1 02 – CABINET PARTS

Products

Position	Product
1	W10819767 Whirlpool Cover
2	WP90767 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	W10542714 Whirlpool Panel
5	WPW10411937 Whirlpool Switch
7	49621 Whirlpool Leveling Feet
8	WP660658 Whirlpool Clamp
9	WPW10446781 Whirlpool Spring
10	WP3389420 Whirlpool Screw
11	WPW10404617 Whirlpool Plug Assembly
12	279640 Whirlpool Dryer Idler Pulley Kit
13	3978776 Whirlpool Bracket
14	W11295573 Whirlpool Clip
15	WPW10121334 Whirlpool Washer
16	W10318609 Whirlpool Dryer Door Switch
17	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
18	WPW10354249 Whirlpool Cover
19	8565083 Whirlpool Ramp Assembly
21	WP308685 Whirlpool Microwave Screw
22	279787 Whirlpool Dryer Drive Motor
23	W10837625 Whirlpool Dryer Motor Pulley
24	661570V Whirlpool Dryer Drum Belt
25	W10181903 Whirlpool Bracket
26	W11481730 Whirlpool Bracket
27	W11628810 Whirlpool Power Cord
28	WPW10416072 Whirlpool Elbow
29	WP693995 Whirlpool Screw
30	WP8563747 Whirlpool Exhaust Pipe
31	WPW10331278 Whirlpool Exhaust Pipe
32	WP8563749 Whirlpool Exhaust Pipe
33	W10837240 Whirlpool Dryer Idler Pulley
34	SCREW
35	Panel, Rear
36	WP488729 Whirlpool Refrigerator Door Screw
37	CONTROL BOARD
38	WP8563727 Whirlpool Bracket
39	W10085210 Whirlpool Label
40	W11215531 Whirlpool Base
41	W10251264 Whirlpool Panel
42	WP8565122 Whirlpool Strike Assembly
44	WP8540621 Whirlpool Toe Panel
45	WP3387242 Whirlpool Seal
46	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
