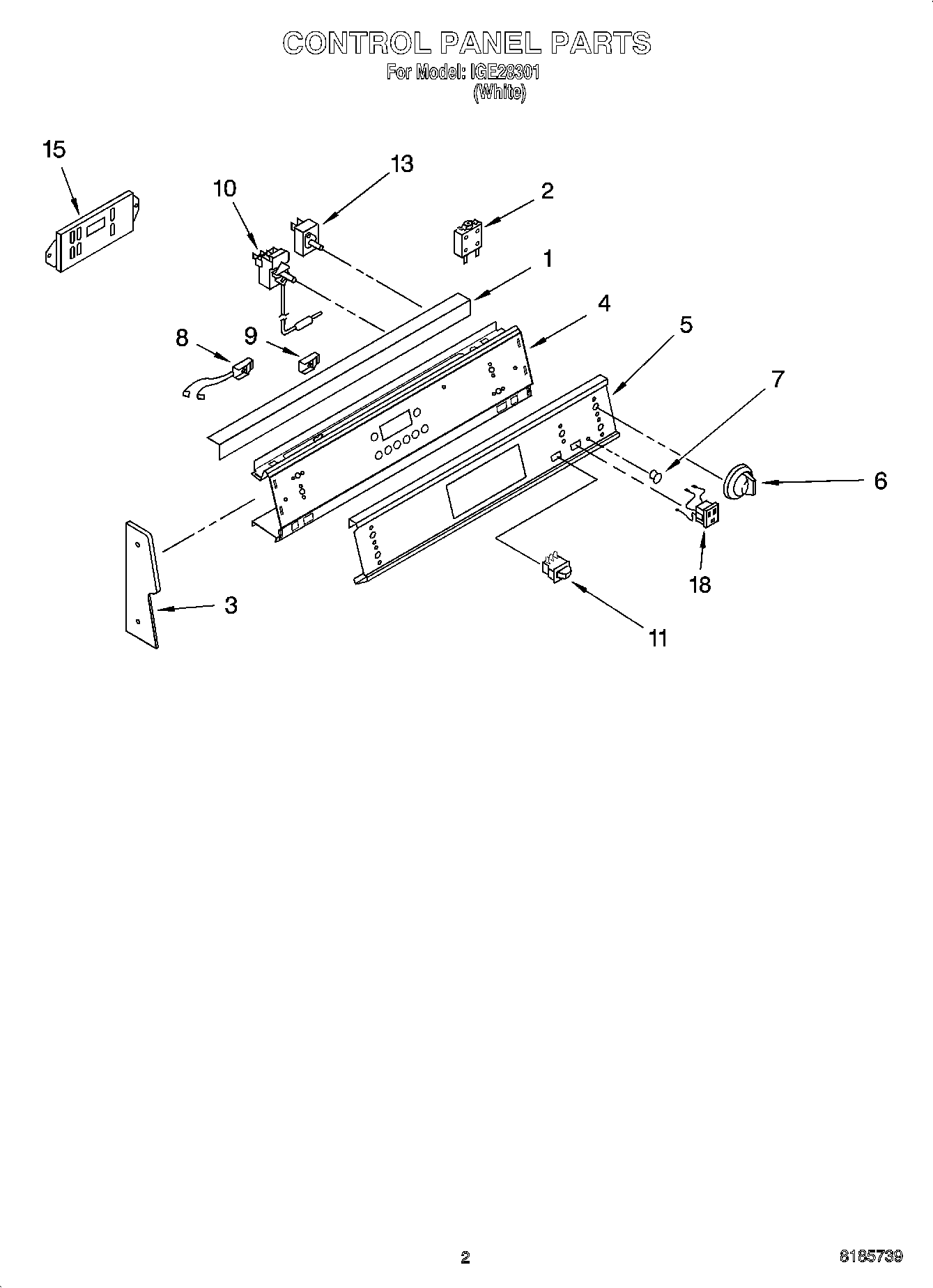

IGE28301 02 – CONTROL PANEL PARTSadmin2025-04-26T11:36:47+00:00IGE28301 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Lamp Cover, Black |
| 2 | Breaker, 15 Amp |
| 3 | WP4159387 Whirlpool Compactor Screw |
| 3 | End Cap R.H. |
| 3 | End Cap L.H. |
| 4 | Panel, Control (Screw, (2) 8 x 3/8) |
| 4 | Panel, Control (Backguard) |
| 5 | Panel, Control (Faceplate) |
| 6 | Knobs, Control (5) |
| 7 | WP9750343 Whirlpool Light Lens |
| 8 | Light, Indicator (Oven - Thermostat) |
| 9 | Light, Indicator (Surface Unit (2)) |
| 10 | Thermostat |
| 11 | Switch, Oven Light |
| 13 | WP9750641 Whirlpool Infinite Switch |
| 13 | WP3400882 Whirlpool Screw |
| 13 | Screw (2) |
| 13 | WP9750638 Whirlpool Infinite Switch |
| 15 | Timer |
| 18 | Outlet, Untimed |
