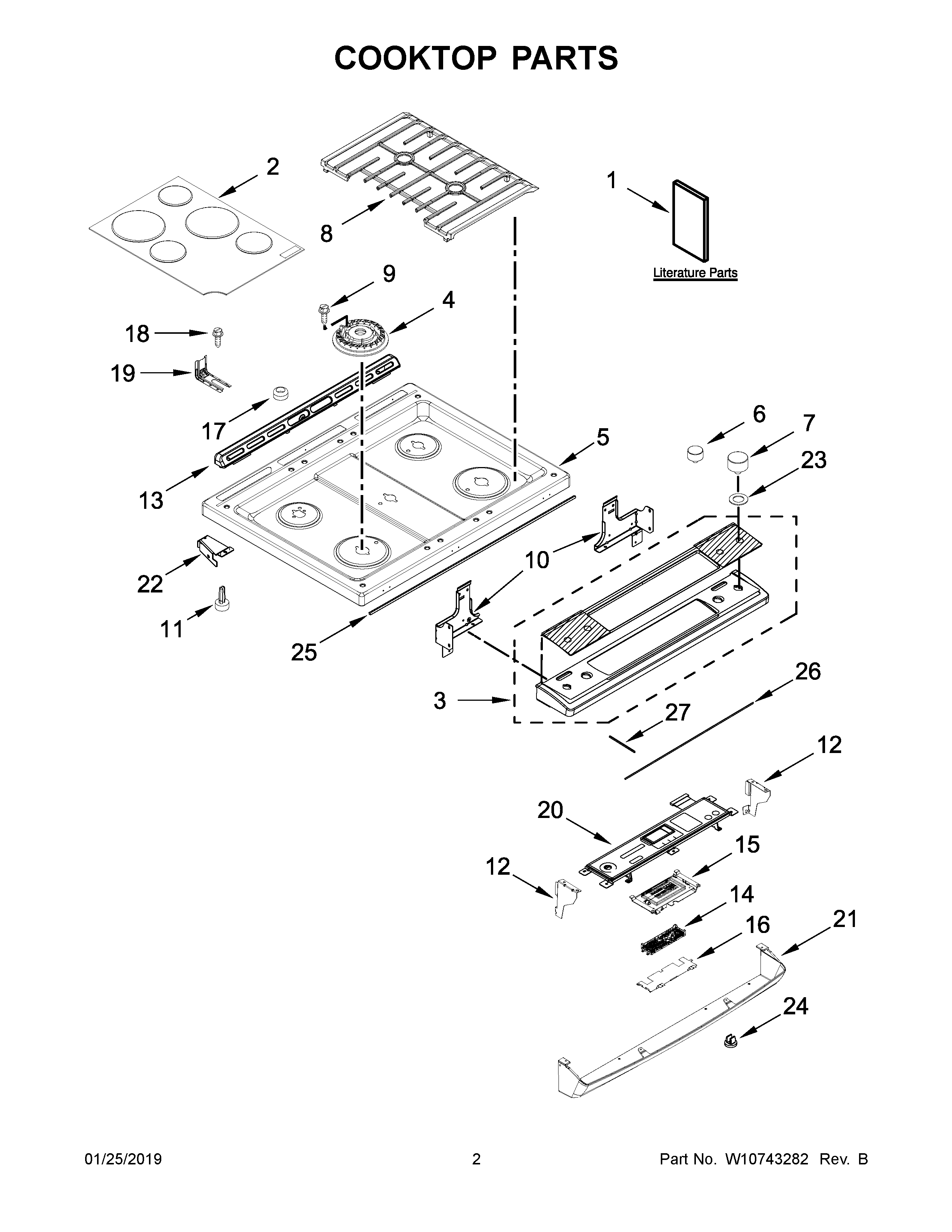

IGL730CS0 02 – COOKTOP PARTS

IGL730CS0 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11176109 Whirlpool Wire Harness
NIW10580229 Whirlpool Grounding Wire
NIHARNESS, MAIN
NIW11198972 Whirlpool Wire Harness
NIW11025616 Whirlpool Wire Harness
NI16515 Whirlpool Clip
1BSHEET, TECH
1AUSE AND CARE GUIDE
1INSTALLATION INSTRUCTIONS
1CWIRING DIAGRAM
2WPW10479988 Whirlpool Burner Cap
3W10660995 Whirlpool Control Panel
4BW10836467 Whirlpool Burner Head
4AWPW10256025 Whirlpool Burner Head
4WPW10256028 Whirlpool Stove Surface Burner Base
5W10712112 Whirlpool Cooktop Assembly
6W11676623 Whirlpool Range Knob
7W11208247 Whirlpool Knob Assembly
8W11175813 Whirlpool Grate Kit
9W11241230 Whirlpool Screw
10AW10289169 Whirlpool Bracket Support
10W10289170 Whirlpool Support Bracket
10BW10598048 Whirlpool Support Bracket
11GLIDE, MAIN TOP
12AW10547961 Whirlpool Endcap Panel
12W10547960 Whirlpool Endcap Panel
13W11256338 Whirlpool Vent Trim
14W11050553-includeCORE Whirlpool W11050553 Refrigerator Electronic Control Board + Core
15W11105615-includeCORE Whirlpool W11105615 Refrigerator Electronic Control Board + Core
16W10558372 Whirlpool Bracket Mounting
17W11104127 Whirlpool Bumper Assembly
18SCREW, ANTI-TIP KIT
19W11502257 Whirlpool Anchor Tip
20W10612580 Whirlpool Membrane Switch
21W11218703 Whirlpool Mounting Bracket
22W10162253 Whirlpool Mounting Bracket
22AW10162252 Whirlpool Bracket Mounting
23W11131701 Whirlpool Bushing
24W11025100 Whirlpool Insert
25W10802441 Whirlpool Gasket
26W10802457 Whirlpool Gasket
27W11744482 Whirlpool Gasket Assembly
