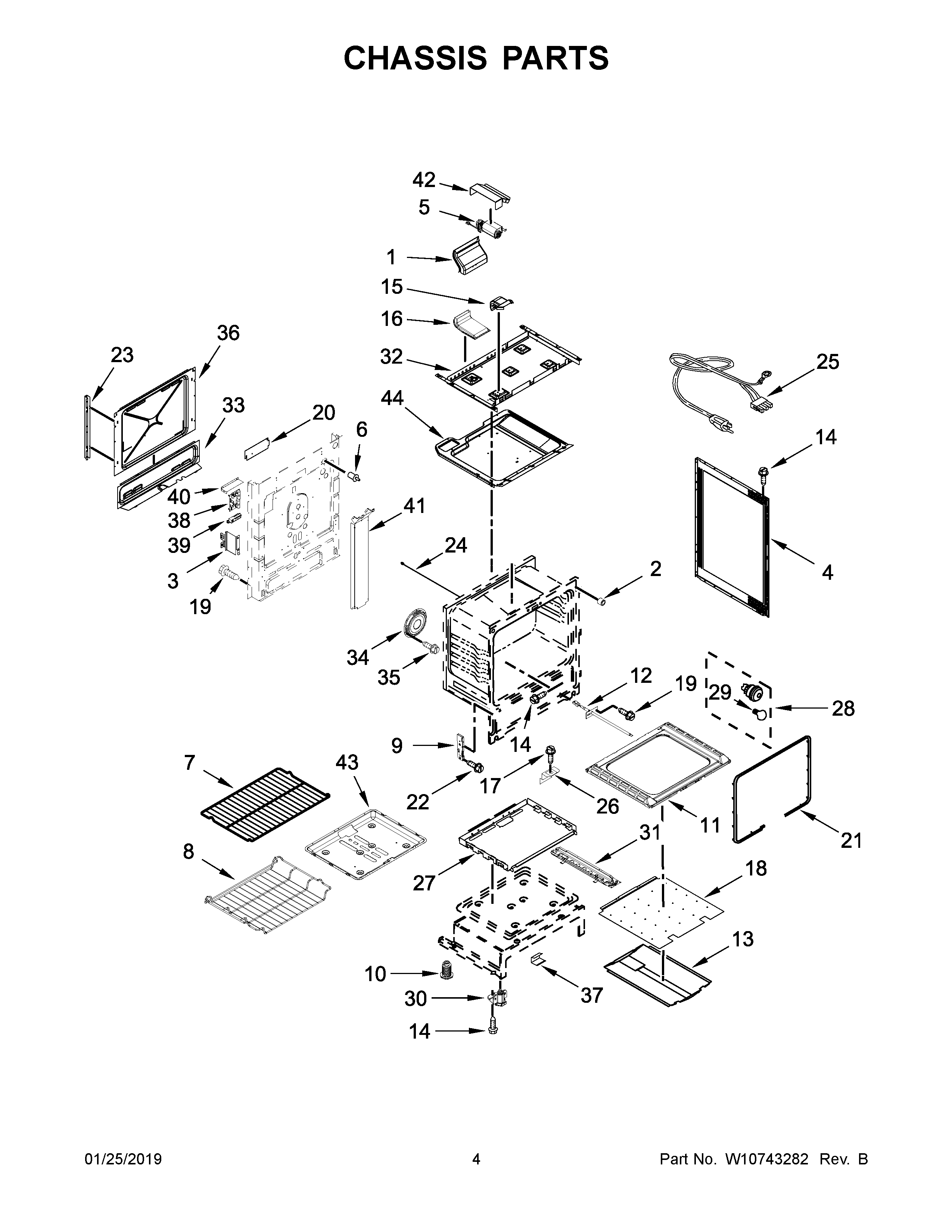

IGL730CS0 03 – CHASSIS PARTS

Products

Position	Product
NI	W11688567 Whirlpool Insulation Assembly
NI	INSULATION, STRAP
NI	W11688363 Whirlpool Insulation
1	W10614920 Whirlpool Oven Flue
2	W10877054 Whirlpool Spacer Assembly
3	W10273002 Whirlpool Support Bracket
4	W11730303 Whirlpool Side Panel
5	W11107275 Whirlpool Range Control Panel Cooling Fan
6	WP9757262 Whirlpool Light Switch
7	WPW10531060 Whirlpool Oven Rack
8	WPW10289145 Whirlpool Oven Rack
9	W10647259 Whirlpool Hinge Receiver
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WPW10211368 Whirlpool Oven Bottom
12	SENSOR-RANGE
13	BAFFLE, BAKE BURNER
15	W10162257 Whirlpool HVAC Air Duct
16	W11243157 Whirlpool Oven Flue
18	W10323077 Whirlpool Burner Baffle
19	SCREW
20	W11117035 Whirlpool Shield
21	W11562931 Whirlpool Door Gasket
22	W10777162 Whirlpool Screw
23	W10162241 Whirlpool Channel
24	W11370463 Whirlpool Door Rod Assembly
25	W10889764 Whirlpool Power Cord
26	W10035900 Whirlpool Support Bracket
27	W10541959 Whirlpool Heat Shield Assembly
28	W11594027 Whirlpool Range Oven Light Socket
29	BULB, LIGHT
30	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
31	WPW10306546 Whirlpool Base Rail
32	W10558276 Whirlpool Burner Box
33	W10162249 Whirlpool Wire Cover
34	W10346152 Whirlpool Fan Cover
36	W11379354 Whirlpool Rear Cover
37	W10137382 Whirlpool Clip
38	W10860916 Whirlpool Spark Module
39	WPW10475149 Whirlpool Spark Module
40	W10655451 Whirlpool Spill Guard
41	W10162254 Whirlpool Air Duct
42	W10162255 Whirlpool Exhaust Cover
43	W11379356 Whirlpool Hidden Pan Assembly
44	W10289168 Whirlpool Burner Box
