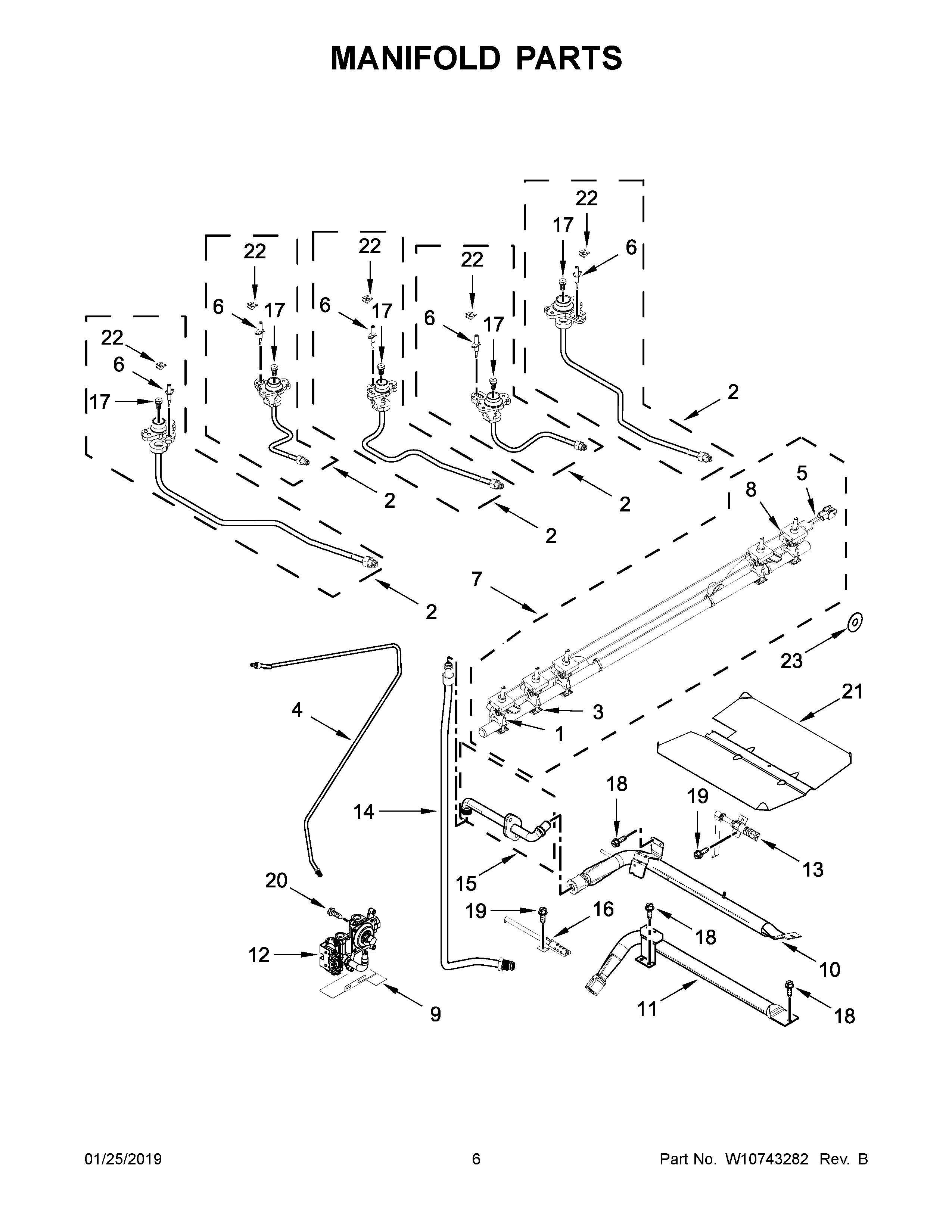

IGL730CS0 04 – MANIFOLD PARTS

Products

Position	Product
NI	W11087486 Whirlpool Spud Orifice
NI	SPUD-ORFCE
NI	CABINET (NOT A SERVICEABLE PART)
1	W11666001 Whirlpool Screw
2D	W10552129 Whirlpool Orifice Holder
2	W10552128 Whirlpool Holder Orifice
2A	W10552127 Whirlpool Orifice Holder
2B	W10552126 Whirlpool Orifice Holder
2C	W10552125 Whirlpool Orifice Holder
3	W10949105 Whirlpool Mounting Bracket
4	W10552140 Whirlpool Gas Tubing
5	W11677625 Whirlpool Wire Harness
6	W11611678 Whirlpool Surface Igniter
6A	W11050467 Whirlpool Surface Igniter
6B	W11447374 Whirlpool Surface Igniter
6C	W11220383 Whirlpool Surface Igniter
7	W10873132 Whirlpool Manifold Assembly
8A	W10831589 Whirlpool Burner Valve
8	W11223016 Whirlpool Burner Valve
8B	W11163975 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	W11676566 Whirlpool Range Burner Broiler
11	W10764654 Whirlpool Oven Burner
12	W10861656 Whirlpool Regulator Assembly
13	WPW10324262 Whirlpool Oven Igniter
14	W10306050 Whirlpool Gas Tubing
15	W10583216 Whirlpool Fitting Assembly
16	WPW10333842 Whirlpool Oven Igniter
17	W11690133 Whirlpool Range Orifice Spud
17A	W10756981 Whirlpool Spud Orifice
17D	W10657947 Whirlpool Orifice Spud
17C	SPUD-ORFCE
17B	W10821182 Whirlpool Orifice
18	SCREW
19	W11684507 Whirlpool Screw
20	WP3400016 Whirlpool Screw Assembly
21	BAFFLE, BROIL BURNER
22	W11190173 Whirlpool Clip
23	W10140571 Whirlpool Seal Switch
