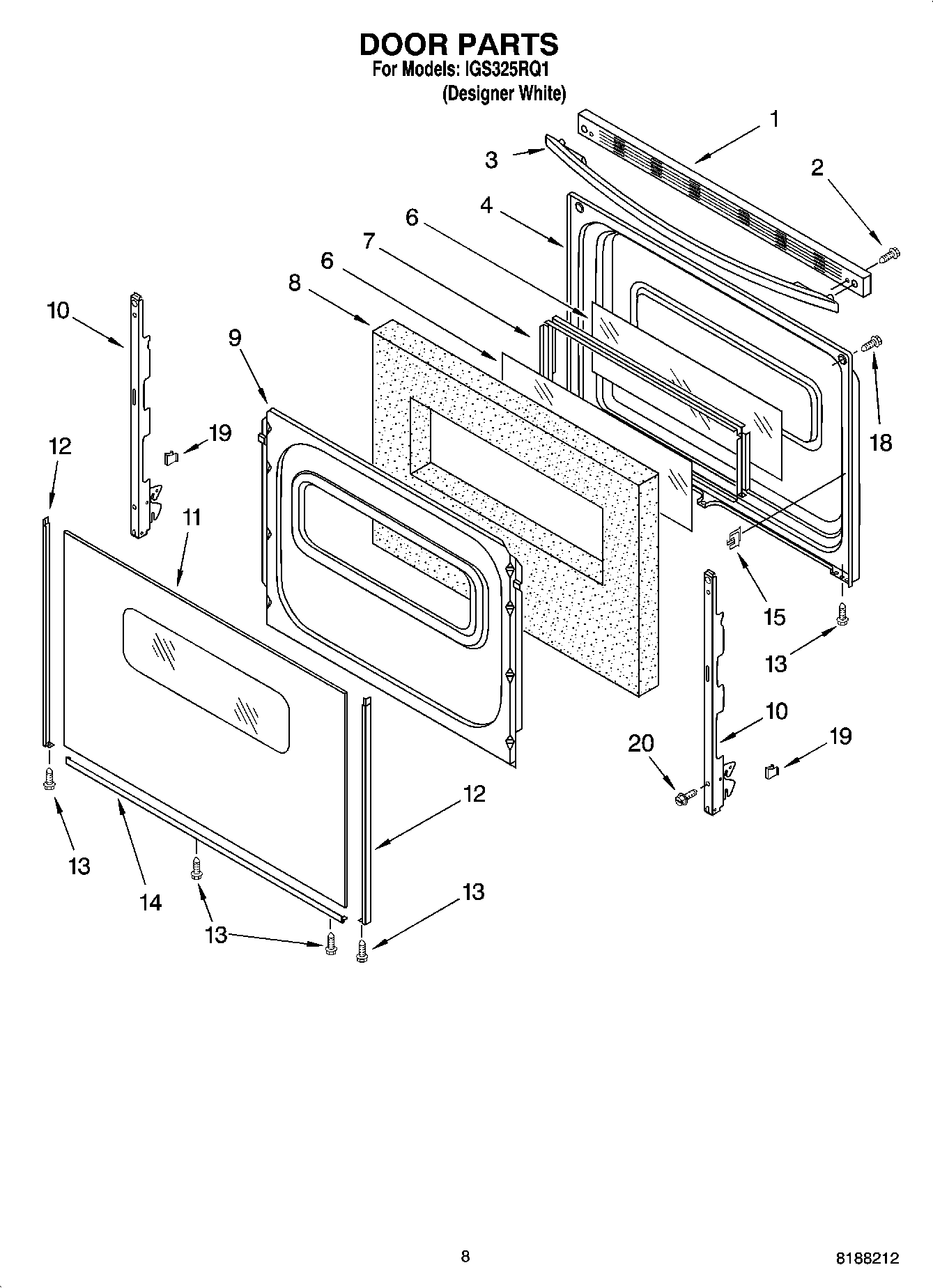

IGS325RQ1 06 – DOOR PARTS, OPTIONAL PARTS

IGS325RQ1 06 – DOOR PARTS, OPTIONAL PARTS

Written by

in

IGS325RQ1 06 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI75755A6
	Grease
	WP3195996 Whirlpool Pan Grid
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WPL ARI75756A4
	3196896 Whirlpool Clip
	WPL ARI75754A3
	WPL ARI75753A2
	WPL ARI75752A2
	WPL ARI75751A9
	WPL ARI75750A8
	WPL ARI75749A5
	WPL 9756904
	WPL 9758205
	WPL 8524207
	TIE,WIRE
	8523599 Whirlpool Oven Wire Harness
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	16515 Whirlpool Clip
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	8528351 Whirlpool Clip
	Almond (Uncut)
	W11447673 Whirlpool Range Tip Anchor
	3400964 Whirlpool Oven Clip
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	Wire, 25` Roll (Red 14 Ga.)
	72017 Whirlpool Appliance Touch-Up Paint White
	WP3196076 Whirlpool Broil Pan
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
8	WPW10278991 Whirlpool Insulation
9	9761499 Whirlpool Oven Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	WP9762476 Whirlpool Door Glass
12	WP8523166 Whirlpool Door Trim
12	WP8523172 Whirlpool Left Door Trim
13	W10491985 Whirlpool Screw
14	WP8523175 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
