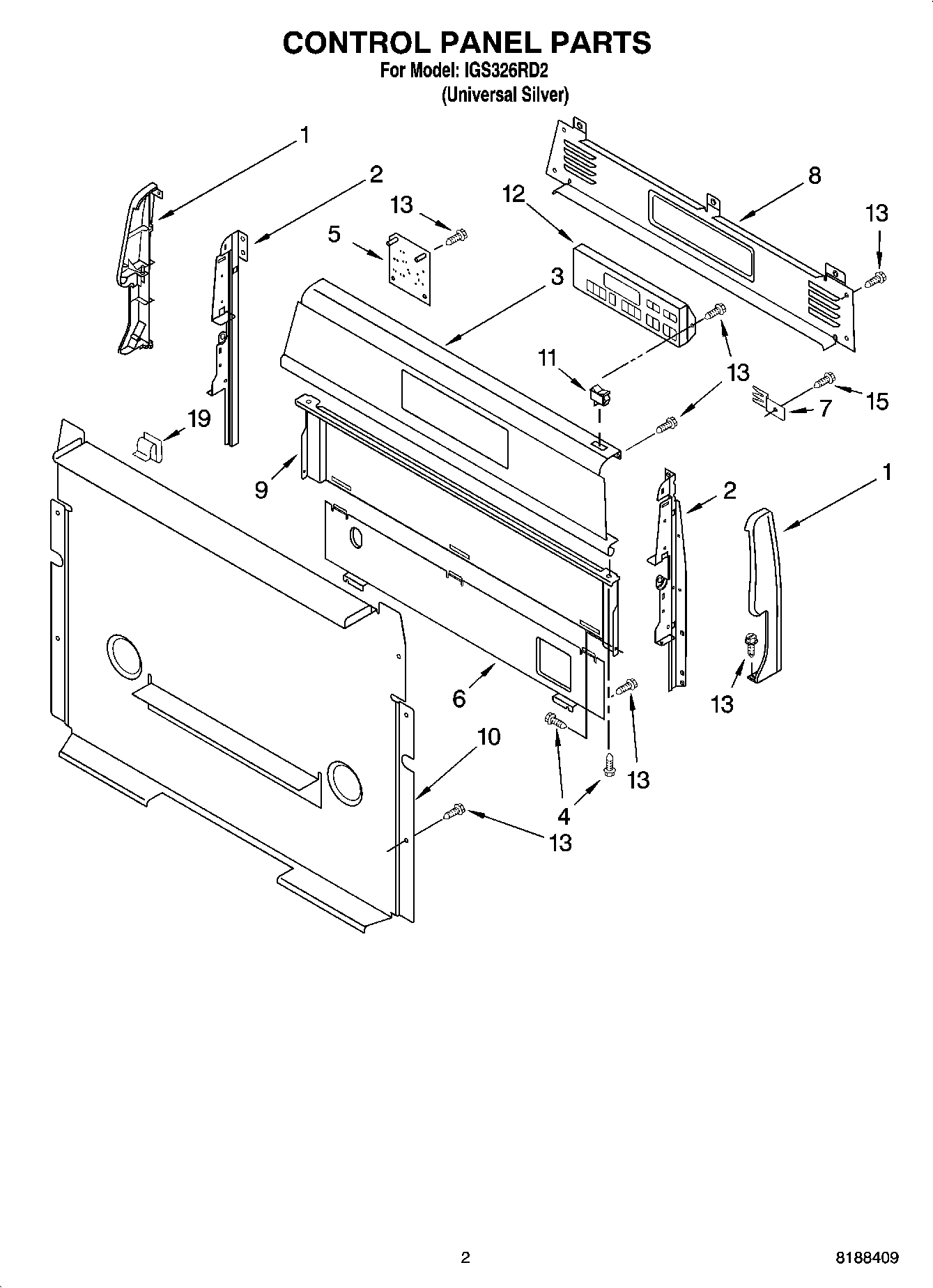

IGS326RD2 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap (Black Left Hand)
1	Endcap, Right Hand (Black)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Backguard
4	Screw
5	WPW10331686 Whirlpool Oven Spark Module
6	8053505 Whirlpool Oven Shield
7	8523412 Whirlpool Mounting Bracket
8	Cover, Upper
9	Shield, Heat
10	Cover, Lower
11	WP4314961 Whirlpool Lite Switch
12	WP6610455 Whirlpool Electronic Control Board
13	SCREW
15	WP3196557 Whirlpool Screw
19	WP8273564 Whirlpool Clip
