IGS326RD2 06 – DOOR PARTS, OPTIONAL PARTS

IGS326RD2 06 – DOOR PARTS, OPTIONAL PARTS

Written by

in

IGS326RD2 06 – DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI75796A7
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP4449743 Whirlpool Screw
3196696 Whirlpool Clip
WPL ARI75797A8
3196896 Whirlpool Clip
WPL ARI75795A9
WPL ARI75794A5
WPL ARI75793A9
WPL ARI75792A7
WPL ARI75791A9
WPL ARI75790A6
WPL 9758205
WPL 8524207
TIE,WIRE
8523599 Whirlpool Oven Wire Harness
242831 Whirlpool Oven Wire
Grease
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
511873 Whirlpool Refrigerator Paint
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
350942 Whirlpool Spray Paint
Almond (Uncut)
WP72107 Whirlpool Touchup
814381 Whirlpool Pin
350930 Whirlpool White Spray Paint
16515 Whirlpool Clip
3400964 Whirlpool Oven Clip
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
W11447673 Whirlpool Range Tip Anchor
4396923 Whirlpool Broil Pan Set Gray Porcelain

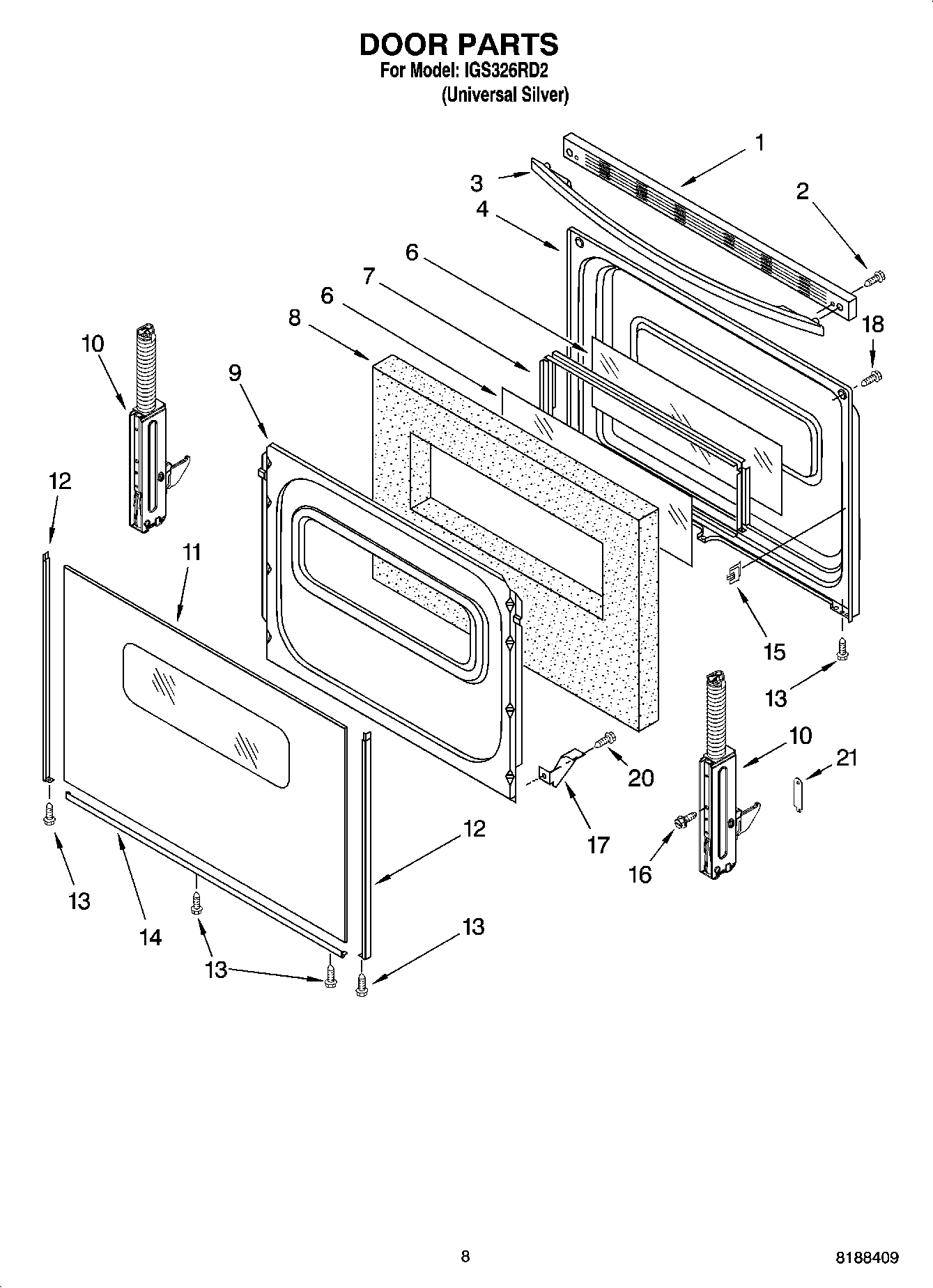

1Trim, Top (Black and S.Steel Models)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347464 Whirlpool Door Hinge
11Glass, Outer Door
12W10761014 Whirlpool Right Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
13W10491985 Whirlpool Screw
14WP8523180 Whirlpool Door Trim Assembly
15Clip, Glass (4)
16WPW10031790 Whirlpool Screw
17WP3196794 Whirlpool Glass Bracket
18W10777162 Whirlpool Screw
20WP3196175 Whirlpool Screw
219761517 Whirlpool Oven Clip Assembly
