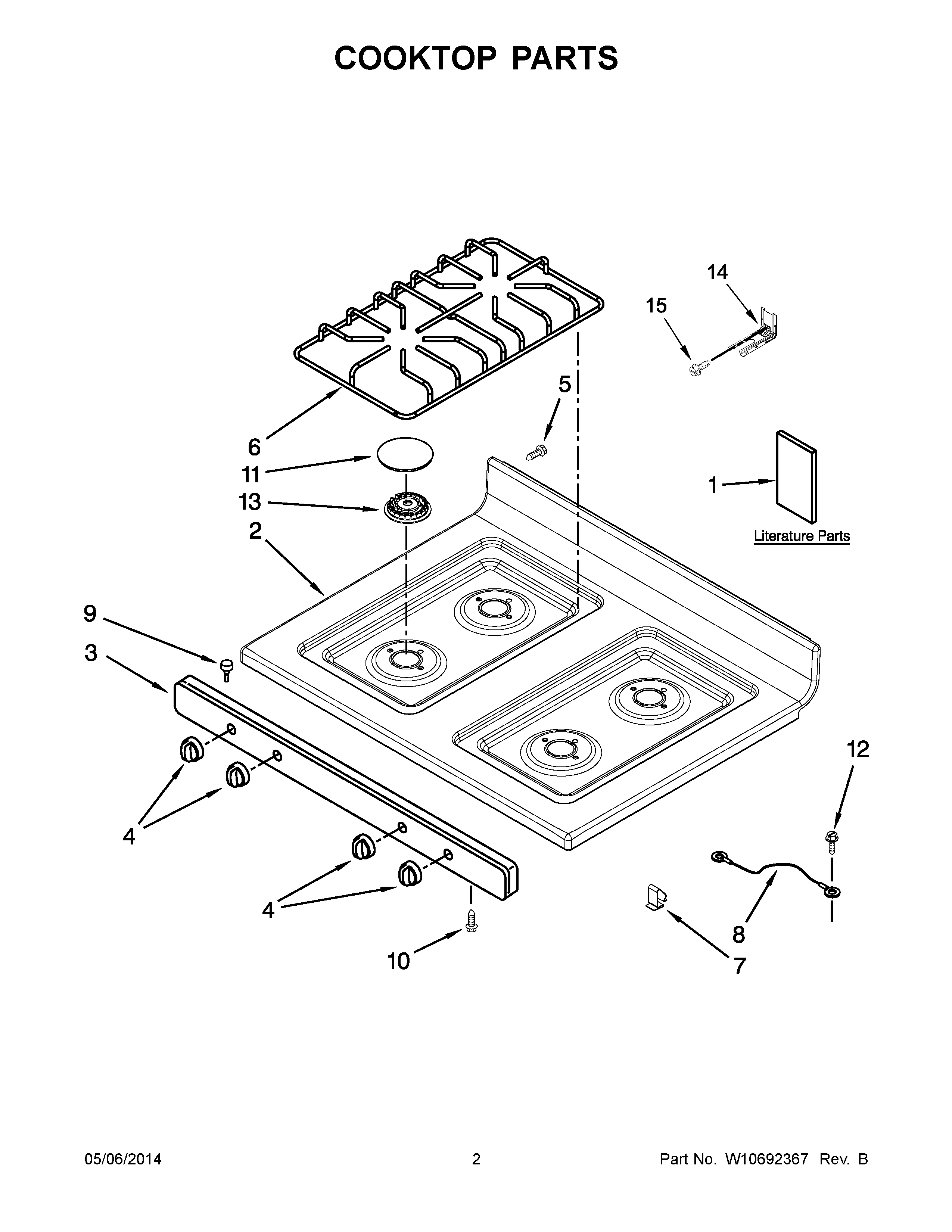

IGS350BW0 02 – COOKTOP PARTS

IGS350BW0 02 – COOKTOP PARTS

Written by

in

IGS350BW0 02 – COOKTOP PARTS

Products

PositionProduct
1SHEET, TECH
1Safer Cooking Tips (French)
1GUIDE, USE AND CARE
1INSTRUCTIONS, INSTALLATION
2WPW10535684 Whirlpool Cooktop
3W10620545 Whirlpool Manifold Panel
4WPW10614597 Whirlpool Burner Knob
5WP98007225 Whirlpool Screw Assembly
6WPW10578251 Whirlpool Burner Grate
7CLIP, COOKTOP
83184020 Whirlpool Oven Wire
9W10831827 Whirlpool Bumper
10SCREW
11WP98017461 Whirlpool Burner Cap
12W10850756 Whirlpool Screw
13WPW10636224 Whirlpool Burner Top
14WPW10613666 Whirlpool Bracket
15SCREW, ANTI-TIP KIT
