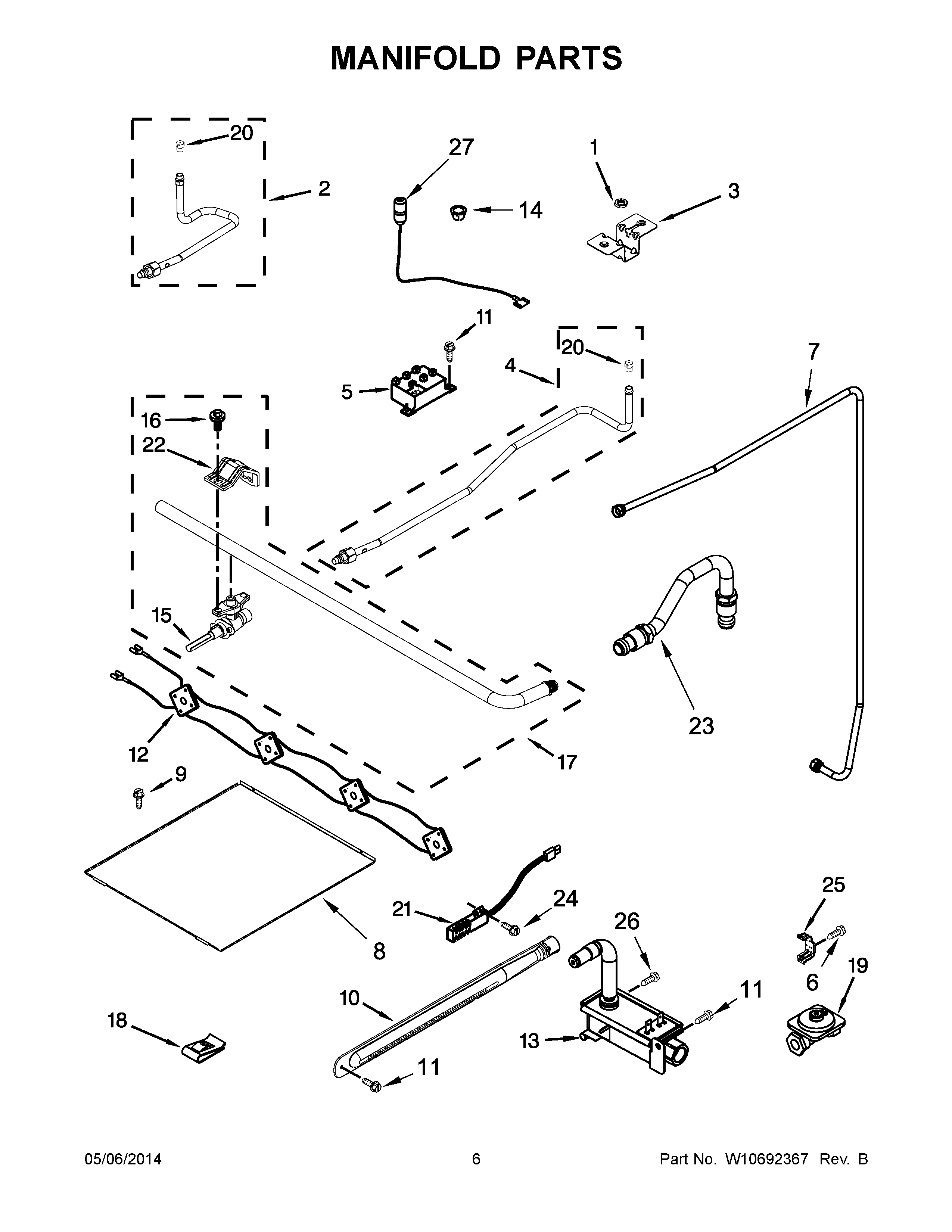

IGS350BW0 04 – MANIFOLD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10032030 Whirlpool Orifice Spud
1	WPY703856 Whirlpool Nut
2	W10861724 Whirlpool Venturi
2	W11550283 Whirlpool Venturi
3	W11715913 Whirlpool Mounting Bracket
4	W11239659 Whirlpool Venturi
4	W11213836 Whirlpool Venturi
5	W11590249 Whirlpool Spark Module
6	WP98007225 Whirlpool Screw Assembly
7	W11628651 Whirlpool Gas Tubing
8	W11688713 Whirlpool Burner Baffle
9	WP3400832 Whirlpool Screw
10	W11220387 Whirlpool Oven Burner
11	W10837731 Whirlpool Screw Assembly
12	WPW10548355 Whirlpool Wire Harness
13	WP98014893 Whirlpool Gas Safety Valve Assembly
14	WPW10278150 Whirlpool Clip Assembly
15	WPW10141709 Whirlpool Burner Valve
15	W10141711 Whirlpool Burner Valve
16	98017517 Whirlpool Oven Screw
17	W10523235 Whirlpool Manifold Pipe
18	98009179 Whirlpool Oven Nut
19	W11346659 Whirlpool Regulator
20	WP98017349 Whirlpool Orifice
20	WP98017348 Whirlpool Orifice
21	W10918546 Whirlpool Oven Range Igniter
22	W10574737 Whirlpool Mounting Bracket
23	W11684515 Whirlpool Range Gas Tubing
24	W10837674 Whirlpool Screw
25	98007410 Whirlpool Oven Mounting Bracket
26	98013634 Whirlpool Oven Screw
27	WPW10209657 Whirlpool Oven Surface Igniter
27	WPW10209656 Whirlpool Surface Ignitor
