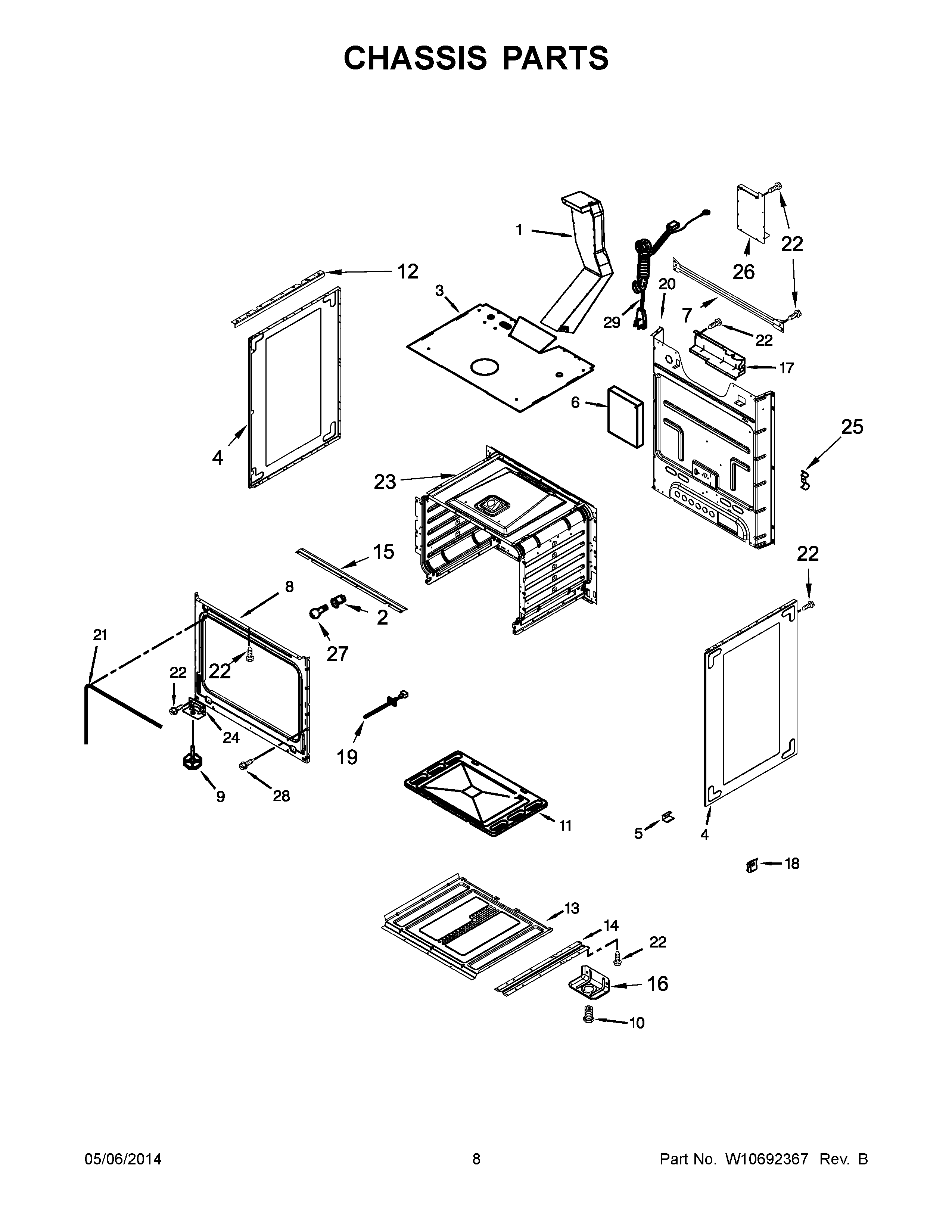

IGS350BW0 05 – CHASSIS PARTS

Products

Position	Product
NI	98004294 Whirlpool Insulation Wire
NI	W10537475 Whirlpool Insulation
NI	INSULATION
NI	W11688850 Whirlpool Insulation
1	BOX, FLUE
2	W10856866 Whirlpool Light Socket
3	W10636342 Whirlpool Shield
4	W10816996 Whirlpool Side Panel
5	CLIP, OVEN BOTTON
6	Counterweight
7	98015363 Whirlpool Oven Support
9	W10819918 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	W11098799 Whirlpool Oven Bottom Assembly
12	W10577312 Whirlpool Brace Panel
13	W10670197 Whirlpool Microwave Bottom Baffle
14	W10520269 Whirlpool Base Rail
15	W10545322 Whirlpool Support
16	BRACKET, FOOT
17	W10549293 Whirlpool Access Cover
18	98009179 Whirlpool Oven Nut
19	WPW10181986 Whirlpool Oven Sensor
20	W10554678 Whirlpool Rear Cover
21	GASKT-DOOR RANGE
22	W10837731 Whirlpool Screw Assembly
23	CABINET (NOT A SERVICEABLE PART)
25	98005026 Whirlpool Oven Clip
26	W10538845 Whirlpool Access Cover
27	W10888179 Whirlpool Light Bulb Assembly
28	WP98008545 Whirlpool Screw
29	CORD, POWER
