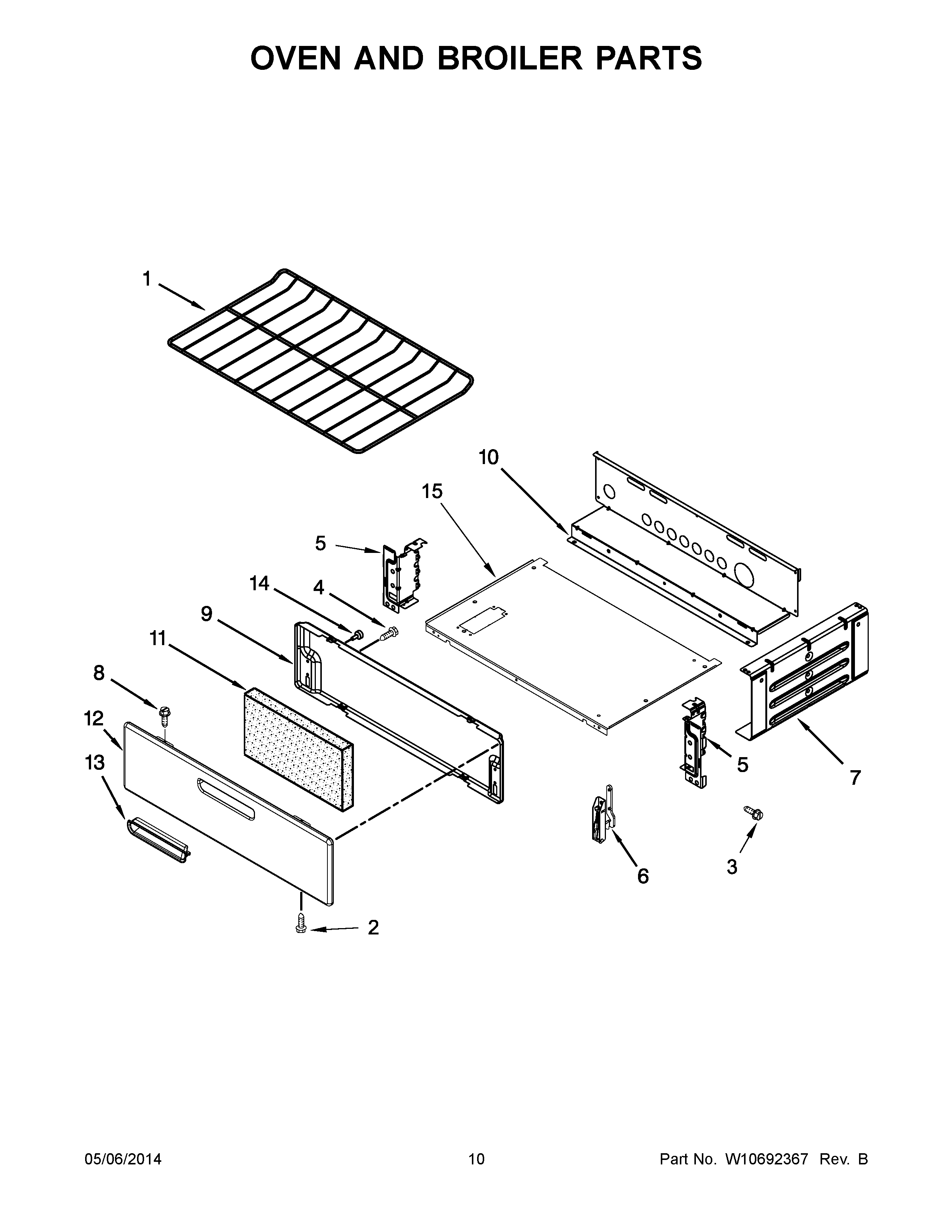

IGS350BW0 06 – OVEN AND BROILER PARTS

IGS350BW0 06 – OVEN AND BROILER PARTS

Written by

in

IGS350BW0 06 – OVEN AND BROILER PARTS

Products

PositionProduct
1WPW10550642 Whirlpool Oven Rack
2SCREW
3WP98008545 Whirlpool Screw
4W10155121 Whirlpool Screw
5W10624275 Whirlpool Support
5W10624273 Whirlpool Support
6W10647966 Whirlpool Door Hinge Assembly
7PANEL, SIDE
8WP3400832 Whirlpool Screw
9W10446851 Whirlpool Door Liner
10W10364810 Whirlpool Back Liner
11W11706803 Whirlpool Appliance Insulation
12W11099211 Whirlpool Drawer Panel
13W10498563 Whirlpool Door Handle
14BUMPER, DOOR
15W10680059 Whirlpool Baffle Assembly
