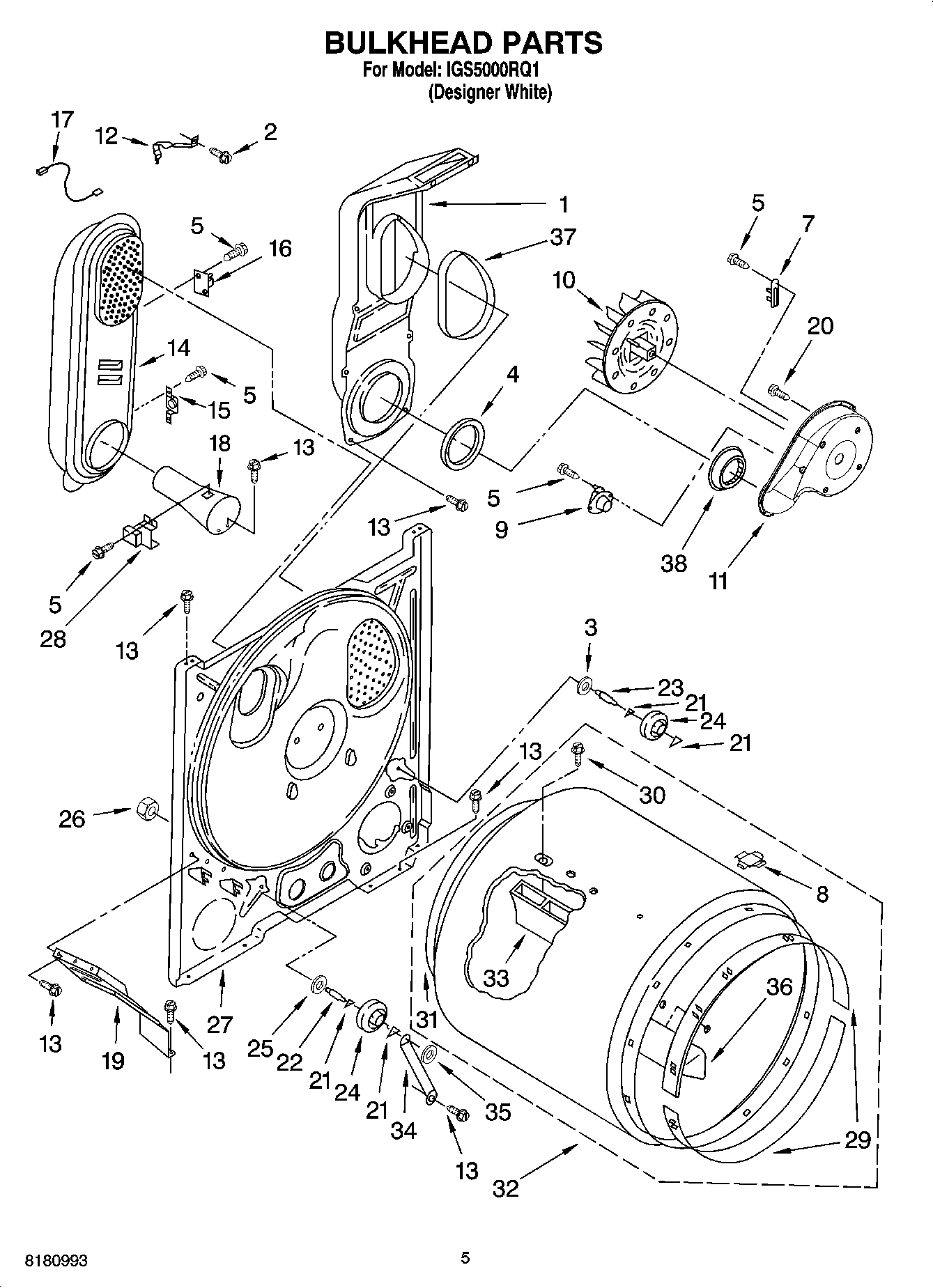

IGS5000RQ1 03 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	WP489463 Whirlpool Refrigerator Screw
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	8066086 Whirlpool Plug
9	WP3387134 Whirlpool Dryer Cycling Thermostat
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	CLIP, HEATER BOX
13	SCREW
14	279980 Whirlpool Box
16	W11050897 Whirlpool Dryer High Limit Thermostat
17	WP3401707 Whirlpool Wire Assembly
18	WP8066049 Whirlpool Funnel Assembly
19	W11398682 Whirlpool Bracket
20	WP488729 Whirlpool Refrigerator Door Screw
21	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
22	SHAFT SUPPORT ROLLER DRYER
23	SHAFT SUPPORT ROLLER DRYER
24	349241T Whirlpool Dryer Drum Support Roller Kit
25	WP348197 Whirlpool Washer Assembly
26	WP3359452 Whirlpool Nut
27	W11178667 Whirlpool Bulkhead Assembly
28	WP338906 Whirlpool Dryer Gas Sensor
29	279441 Whirlpool Front Bearing Ring
30	WPW10109200 Whirlpool Screw
31	W10612022 Whirlpool Felt Seal
32	W10899578 Whirlpool Dryer Drum Assembly
33	BAFFLE-DRM
34	W11684613 Whirlpool Bracket
35	WP90296 Whirlpool Clip
36	WP3403636 Whirlpool Drum Baffle
37	SEAL
38	W11233063 Whirlpool Shield Assembly
