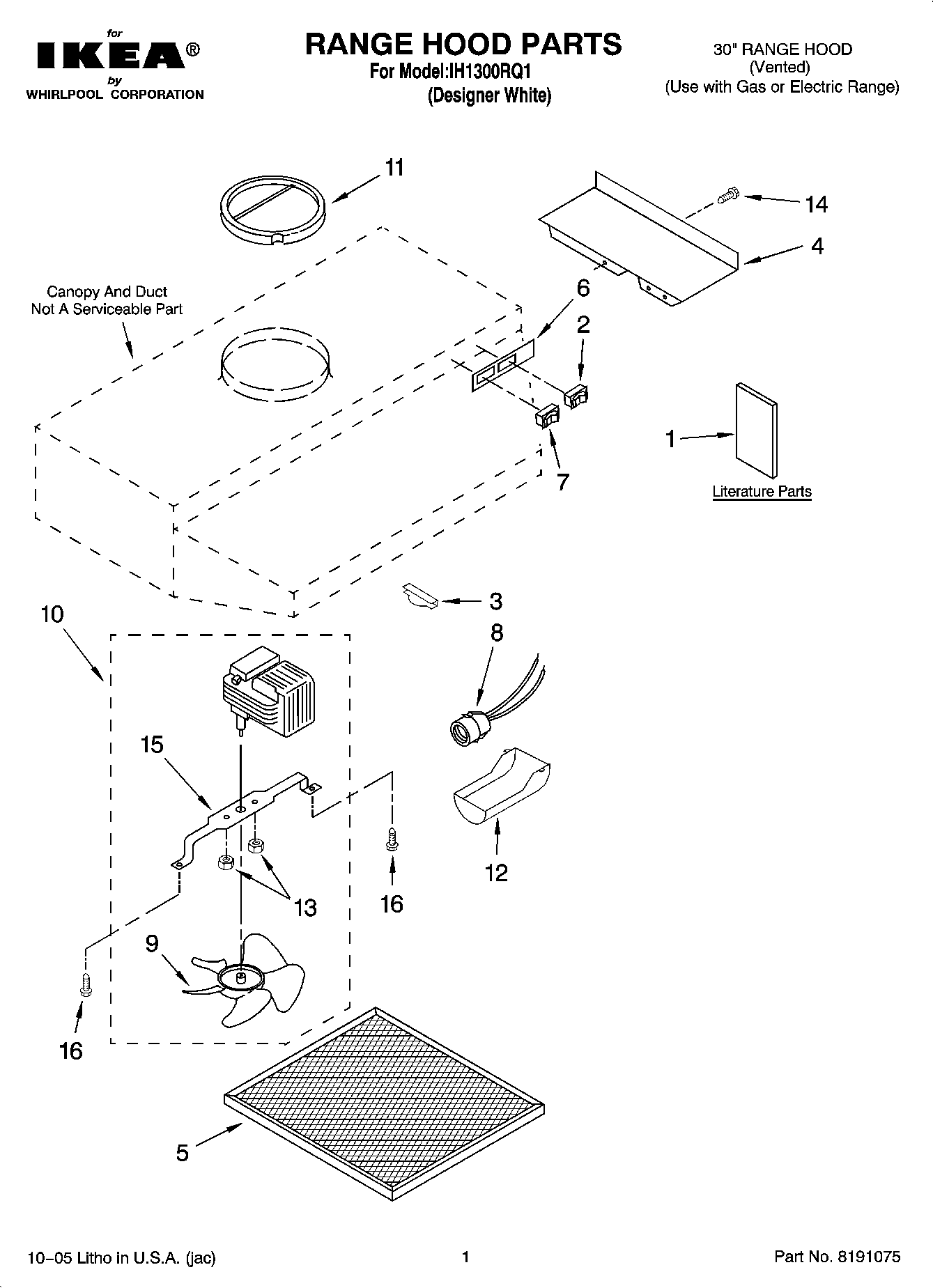

IH1300RQ1 01 – RANGE HOOD PARTS

Products

Position	Product
	30“ RANGE HOOD (Vented) (Use with Gas or Electric Range)
1	Use & Care Guide
2	Switch, Light
3	Support/Retainer (Filter)
4	Cover, Wiring
5	FILTER
6	NAMEPLATE
7	Switch, Fan
8	Receptacle, Light Bulb not incl-75W
9	Blade, Fan
10	Motor/Fan Assembly
11	Damper
12	WP8186930 Whirlpool Light Lens Assembly
13	NUT
14	Screw 8-18 x 3/8
15	Bracket, Motor
16	Harness, Wire (Motor)
16	Screw, Ground
16	Screw
16	FOLLOWING PARTS NOT ILLUSTRATED
