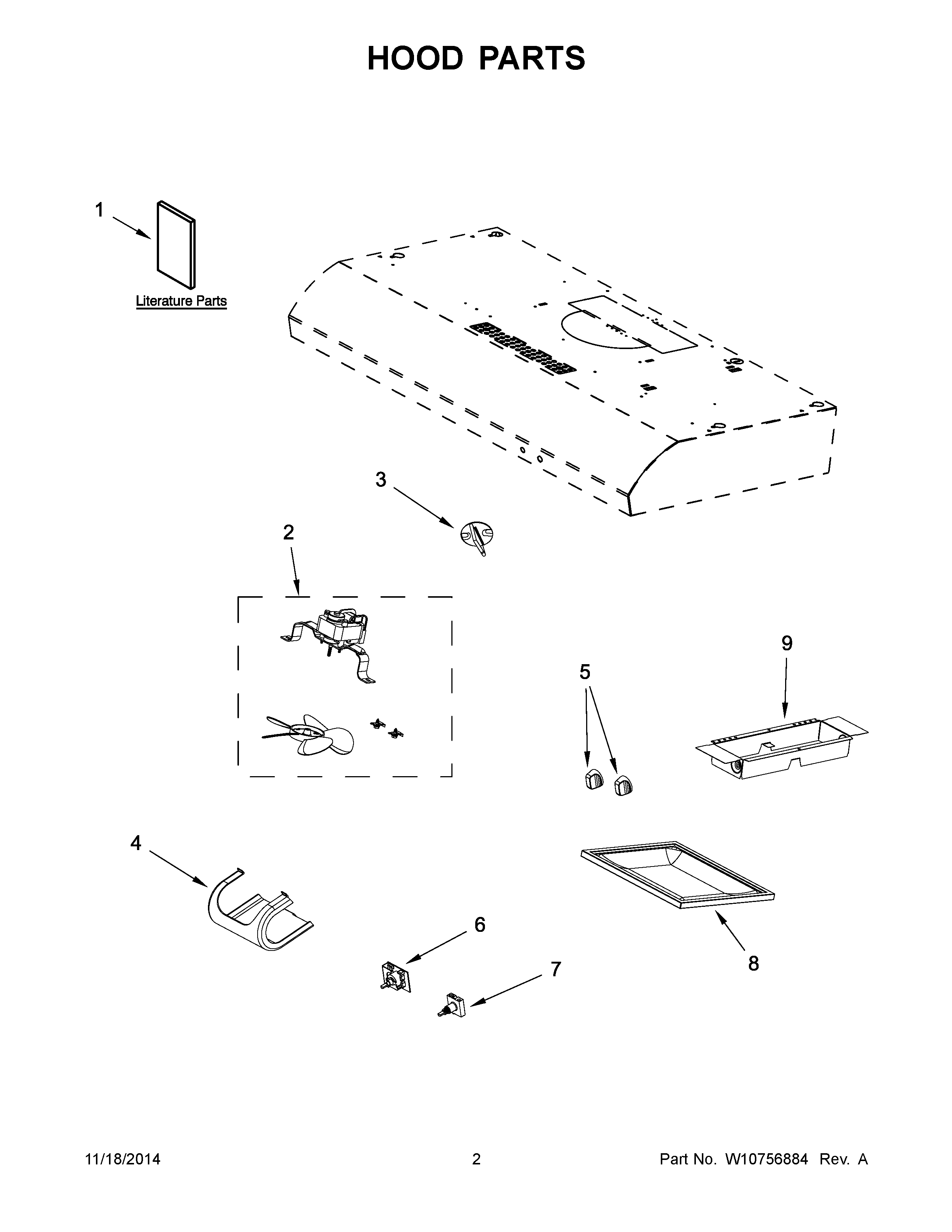

IH3402YS0 02 – HOOD PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NICLEANER, STAINLESS STEEL (12 OZ)
NIW10355450 Whirlpool Filter
NIW10613691 Whirlpool Range Hood Power Cord
NIW10355451 Whirlpool Range Hood 7" Round Vent Damper
1GUIDE, USE AND CARE
2WPW10395033 Whirlpool Fan Motor
3W10386347 Whirlpool Filter Latch
4COVER, LAMP
5W10395010 Whirlpool Control Knob
6W11206737 Whirlpool Rotary Switch
7WPW10395126 Whirlpool Rotary Switch
8W10395127 Whirlpool Range Hood Grease Filter
9WPW10291572 Whirlpool Hood Damper Assembly
