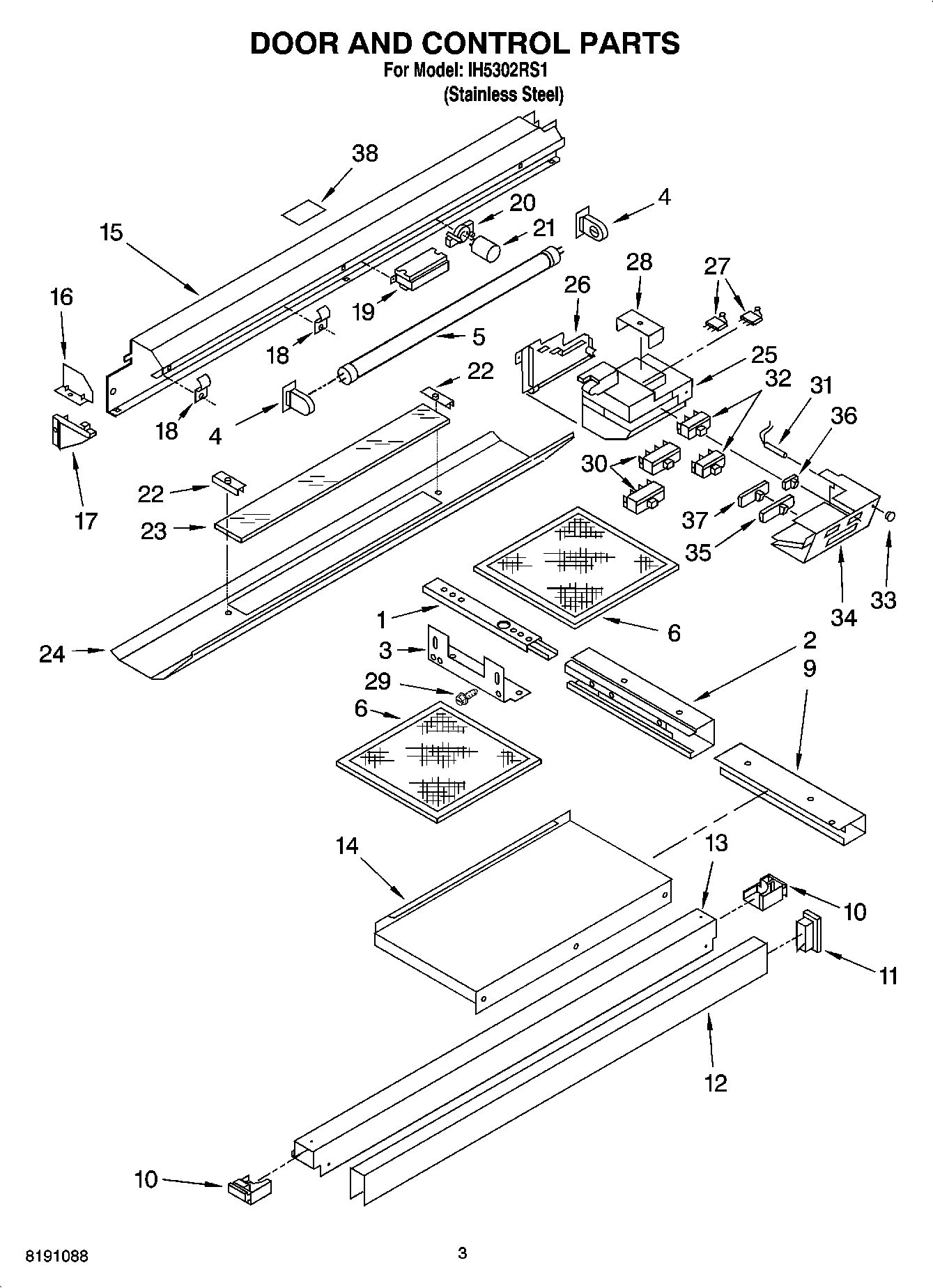

IH5302RS1 02 – DOOR AND CONTROL PARTS

Products

Position	Product
1	Guide, Door (2)
2	Guide, Housing (Left Side)
2	Guide, Housing (Right Side)
3	Support Guide
4	Socket, Lamp (2)
5	Lamp
6	WPW10370046 Whirlpool Filter Assembly
9	Frame, Door (Left Side)
9	Frame, Door (Right Side)
10	End Cap, Door (Right Side)
10	End Cap, Door (Left Side)
11	End Cap Handle (Left Side)
11	End Cap Handle (Right Side)
12	Handle
13	Bracket, Handle
14	Support, Filter
15	Support, Light
16	End Plate
17	Bracket, Light
18	Clamp, Wiring
19	Ballast
20	Receptacle
21	Starter
22	Brace, Glass (2)
23	Lens, Light
24	Frame, Lens
25	Base, Switch
26	Cover, Base
27	WPW10240604 Whirlpool Fan Switch
28	Cover, Switch
29	Screw
30	Switch, Light (2)
31	Light, Indicator
32	Switch, Fan (2)
33	Cover, Lamp
34	Cover, Switch
35	Knob, Control
36	Knob, Fan
37	Knob, Light
38	Trim- White Front
38	ACCESSORY PARTS
38	WP883140 Whirlpool Range Hood Filter
38	Label, Lighting Data
