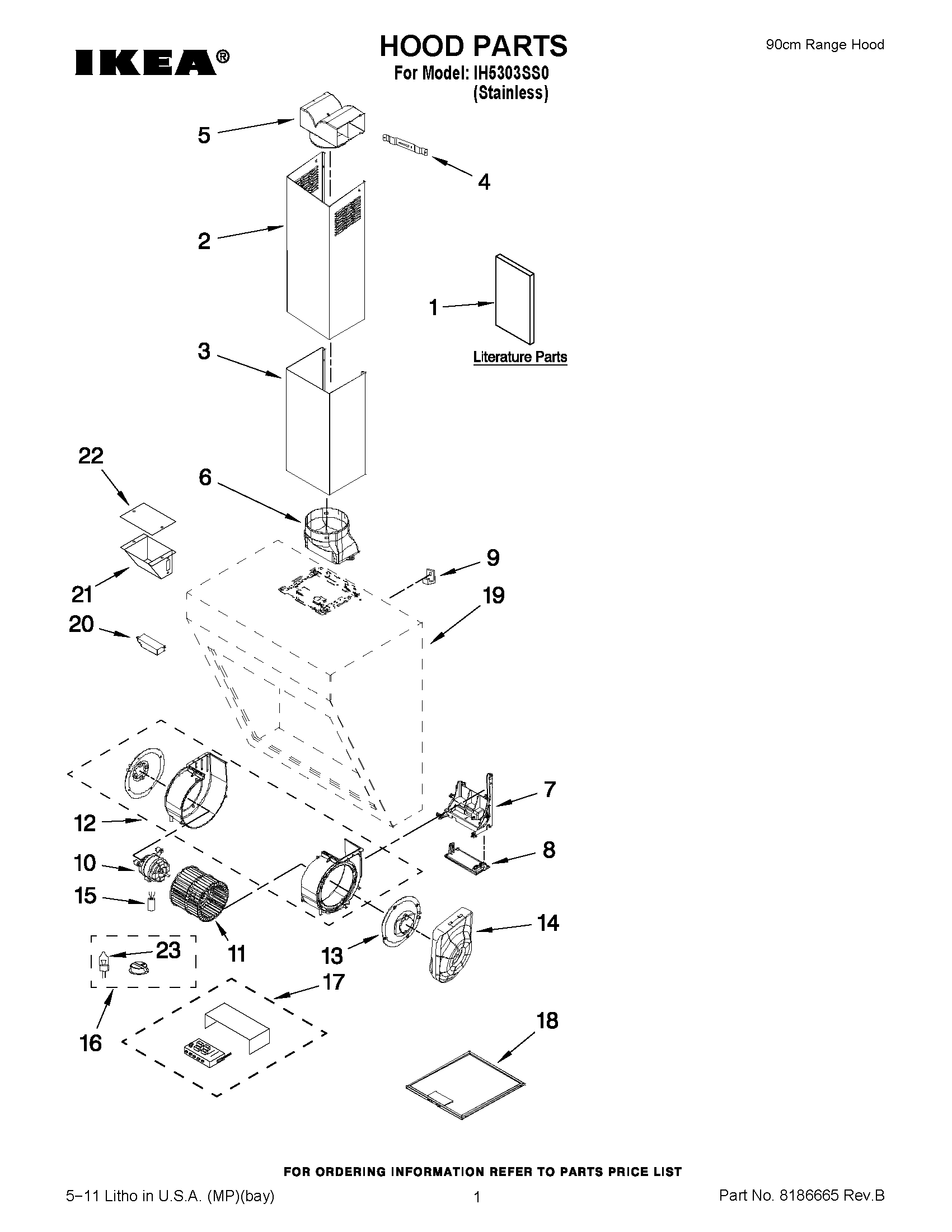

IH5303SS0 01 – HOOD PARTS

Products

Position	Product
NI	Hardware, Mounting
1	Use & Care Guide
2	Chimney, Upper
3	Chimney, Lower
4	Bracket, Mounting
5	DUCT, AIR DIVERTER
6	Duct, Air Connect
7	Box, Capacitor
8	COVER
9	Bracket, Mounting
10	Motor, Fan
11	Wheel, Blower
12	Housing, Fan Motor
13	Grill, Vent
14	Filter, Charcoal
15	8186687 Whirlpool Capacitor
16	WPW10298151 Whirlpool Light Bulb
17	Panel, Control
18	Filter, Grease
19	CABINET (NOT A SERVICEABLE PART)
20	W11186486 Whirlpool Transformer
21	Box, Control
22	Box, Cover
