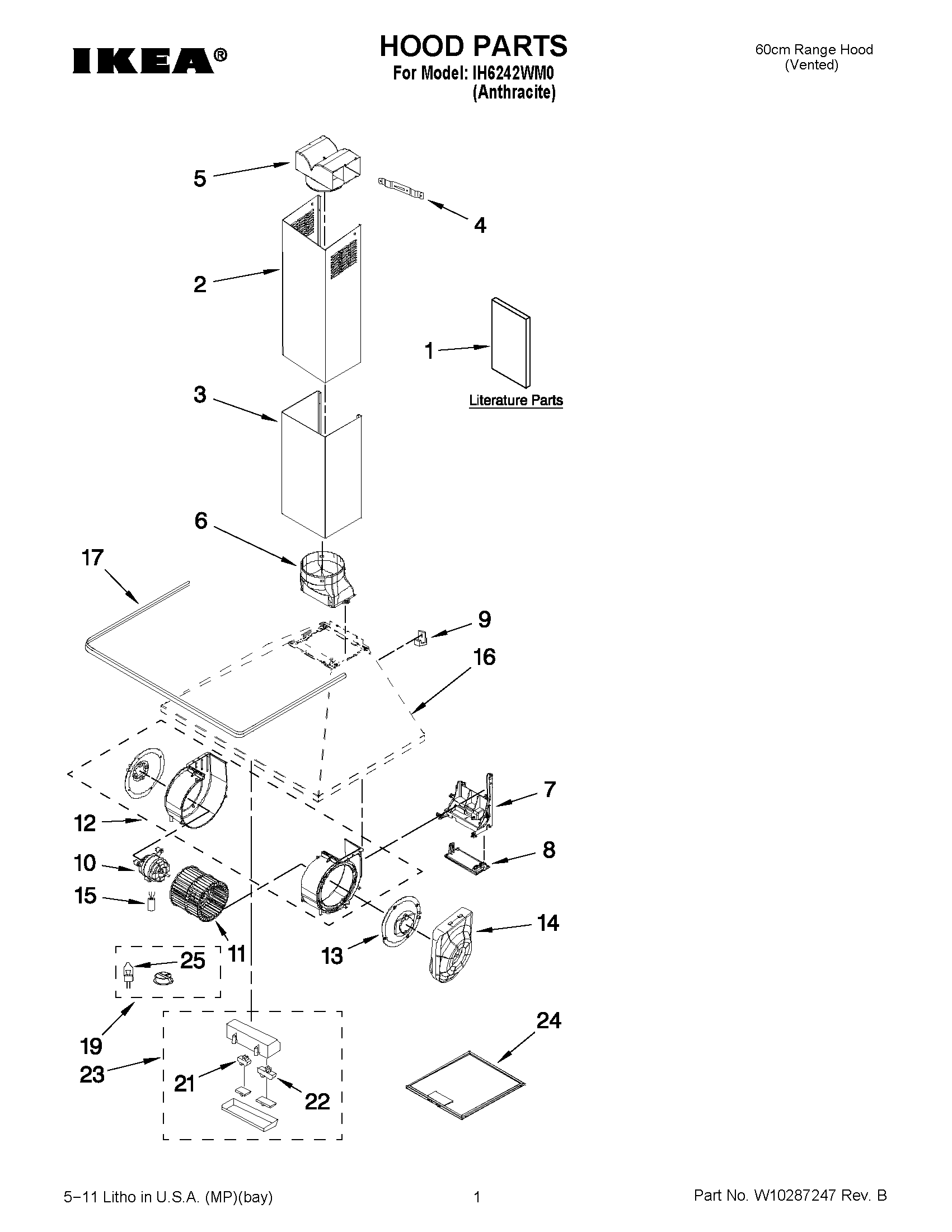

IH6242WM0 01 – HOOD PARTS

Products

Position	Product
NI	Hardware, Mounting
1	Use & Care Guide
2	Chimney, Upper
3	Chimney, Lower
4	Bracket, Mounting
5	Duct, Air Diverter
6	Duct, Air Connect
7	Box, Capacitor
8	COVER
9	Bracket, Mounting
10	Motor, Fan
11	Wheel, Blower
12	Housing, Fan Motor
13	Grill, Vent
14	4396848 Whirlpool Filter
15	8186687 Whirlpool Capacitor
16	CABINET (NOT A SERVICEABLE PART)
17	Trim (Frame)
19	WPW10298151 Whirlpool Light Bulb
21	Switch, Motor
22	Switch, Light
23	Slider, Control (Complete)
24	W10169961A Whirlpool Grease Filter
