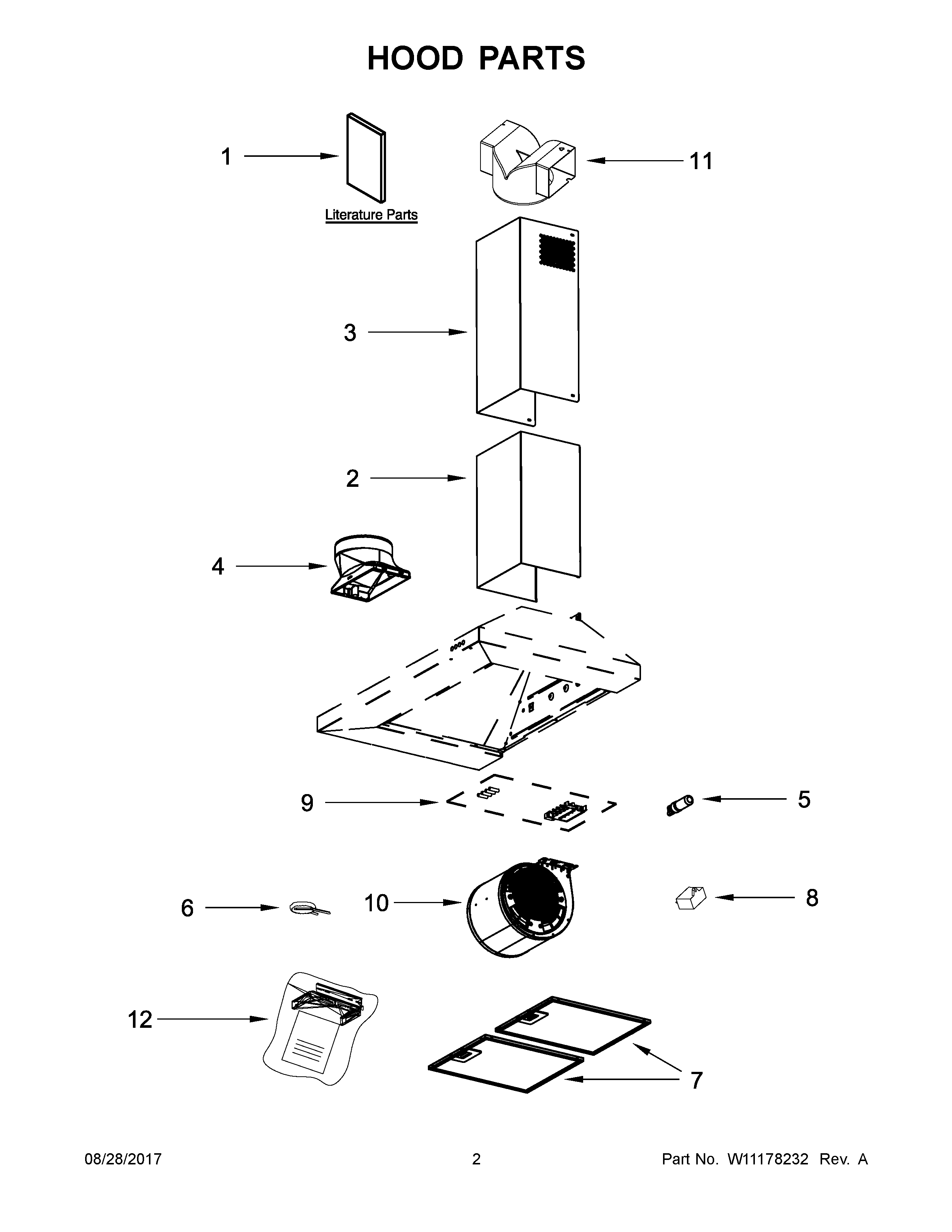

IH6302YS1 02 – HOOD PARTS

IH6302YS1 02 – HOOD PARTS

Written by

in

IH6302YS1 02 – HOOD PARTS

Products

PositionProduct
NIW10412939 Whirlpool Charcoal Filter Pack
NIW10337357 Whirlpool Range Hood Chimney
1USE & CARE GUIDE
2W11417192 Whirlpool Duct Assembly
4W10847841 Whirlpool Range Hood Vent Damper
5WP8190806 Whirlpool Appliance Light Bulb
6W10427011 Whirlpool Filter
7W10169961A Whirlpool Grease Filter
8W11328673 Whirlpool Capacitor
9WPW10350884 Whirlpool PB Switch
10ASSEMBLY, FAN
11W10427014 Whirlpool Air Duct Assembly
12HARDWARE, INSTALLATION
