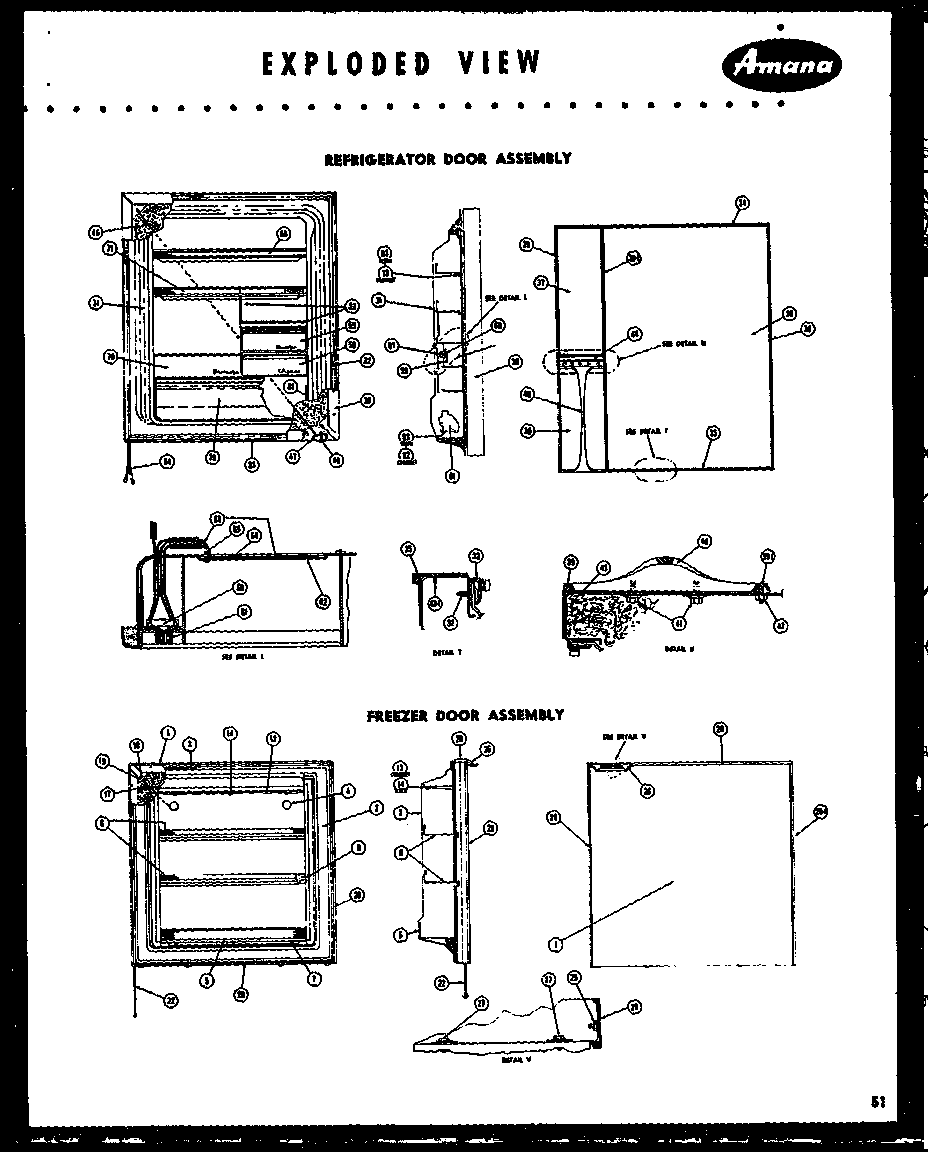

IM125A 04 – REF DOOR ASSY – Aparts

IM125A 04 – REF DOOR ASSY

Products

Position	Product
NI	MAY A3031501
NI	MAY A0391701
NI	MAY A3023401
NI	MAY A0303701
NI	MAY B0530003
NI	MAY C3512705
NI	MAY D3770003
NI	MAY A0320801
NI	MAY A0391801
NI	MAY A3030401
NI	MAY A3030501
NI	MAY B0530203
NI	MAY A3030301
NI	MAY A0384901
NI	MAY B0532701
NI	MAY D3799801
1	MAY D3859512
2	MAY D3850001
4	MAY A0377804
5	MAY D3870401
6	MAY D3798901
7	MAY A0337501
8	MAY B0542001
12	MAY D3768301
17	MAY A3018201
18	MAY A3025701
19	MAY A3022601
20	MAY D3774408
22	MAY B0531601
26	MAY D3850401
28	MAY D3799702
28	MAY D3796609
29	MAY D3796617
30	MAY D3859504
31	MAY D3796901
32	MAY A3032301
33	MAY D3774208
34	MAY D3796201
35	MAY D3796203
36	MAY B0543401
37	MAY B0543505
38	MAY D3796606
39	MAY D3794901
39	MAY D3796601
40	MAY D3797801
41	MAY A3014701
43	MAY A3029801
43	MAY A0392101
44	MAY C3541201
46	MAY B0544404
47	MAY B0544001
48	MAY A3033301
53	MAY D3799001
55	MAY D3747609
56	MAY D3747610
59	MAY B0542501
60	MAY B0541401
61	MAY B0541403
61	MAY B0541701
62	MAY C0695404
63	MAY B0541601
64	MAY A3030201
65	MAY A0368801
68	MAY D3797601
70	MAY D3795601
71	MAY D3797401
79	MAY D3753109
81	MAY C3512706
82	MAY A0288701
83	SEE NOTE GROUND WIRE, GREEN
83	MAY A0380801
84	MAY B0535301
