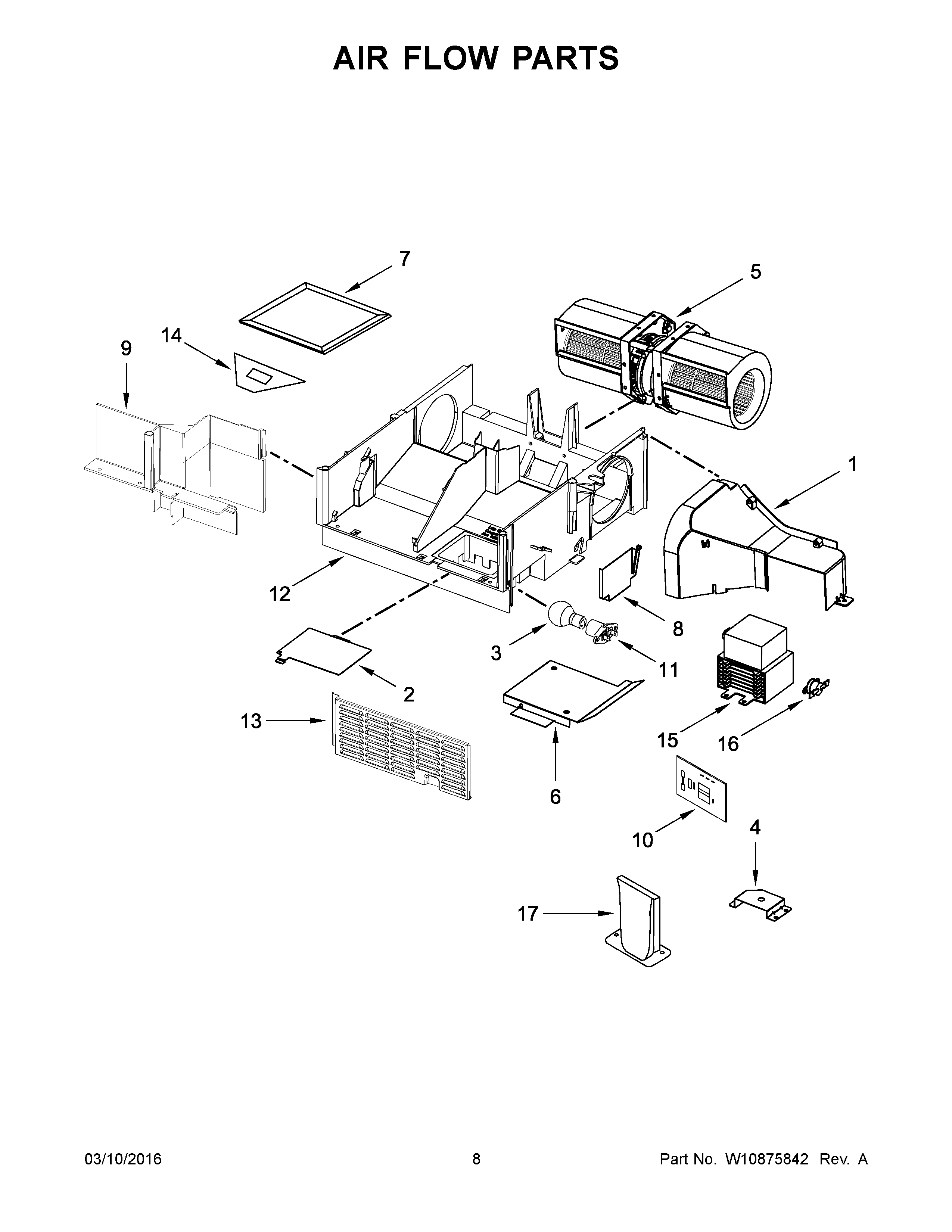

IMH172DS1 05 – AIR FLOW PARTS

Products

PositionProduct
1W10471570 Whirlpool Microwave Deflector Assembly
28206382 Whirlpool Microwave Light Cover
38206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4W10532064 Whirlpool Microwave Mounting Bracket
5W11441128 Whirlpool Microwave Fan Motor
6W10138797 Whirlpool Microwave Duct Cover
78206230A Whirlpool Microwave Charcoal Filter
8W11293488 Whirlpool Microwave Air Duct
9PLATE, AIR GUIDE SEALING
10W10422269 Whirlpool Microwave Filter
11WPW10210878 Whirlpool Microwave LMP Housing
12W10771886 Whirlpool HVAC Air Duct
13W10342991 Whirlpool Microwave Side Cover
14W10810142 Whirlpool Relief Strain
15WPW10693025 Whirlpool Microwave Magnetron
16W10491433 Whirlpool Microwave Thermostat Fix
17W10770968 Whirlpool Plate
