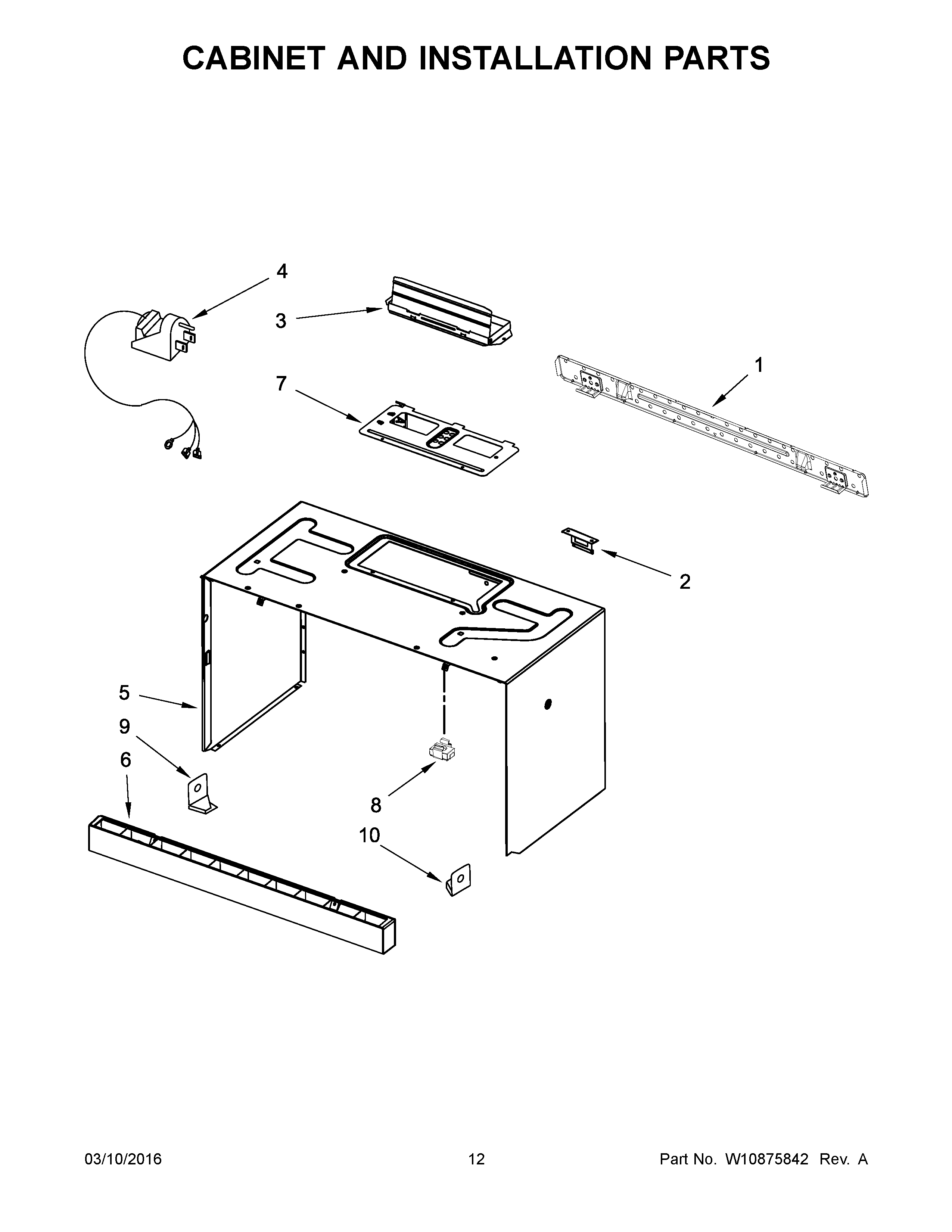

IMH172DS1 07 – CABINET AND INSTALLATION PARTS

IMH172DS1 07 – CABINET AND INSTALLATION PARTS

Written by

in

IMH172DS1 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIW10498567 Whirlpool Microwave Wire Harness
NIW10543253 Whirlpool Microwave Wire Harness
NIW10769928 Whirlpool Microwave Wire Harness
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NIW10821385 Whirlpool Hardware Kit
NIW10539840 Whirlpool Microwave Wire Harness
1W11025649 Whirlpool Microwave Mounting Plate
28206385 Whirlpool Microwave Wire Clip
3W10843943 Whirlpool Microwave Vent Damper
4W10708076 Whirlpool Microwave Power Cord
5W10883284 Whirlpool Microwave Cabinet Wrapper
6GRILLE, VENT (STAINLESS)
7COVER, HOOD FAN MOTOR
8W10596040 Whirlpool Microwave Nut
9W11026306 Whirlpool Microwave Mounting Bracket
10W10703282 Whirlpool Microwave Mounting Bracket
