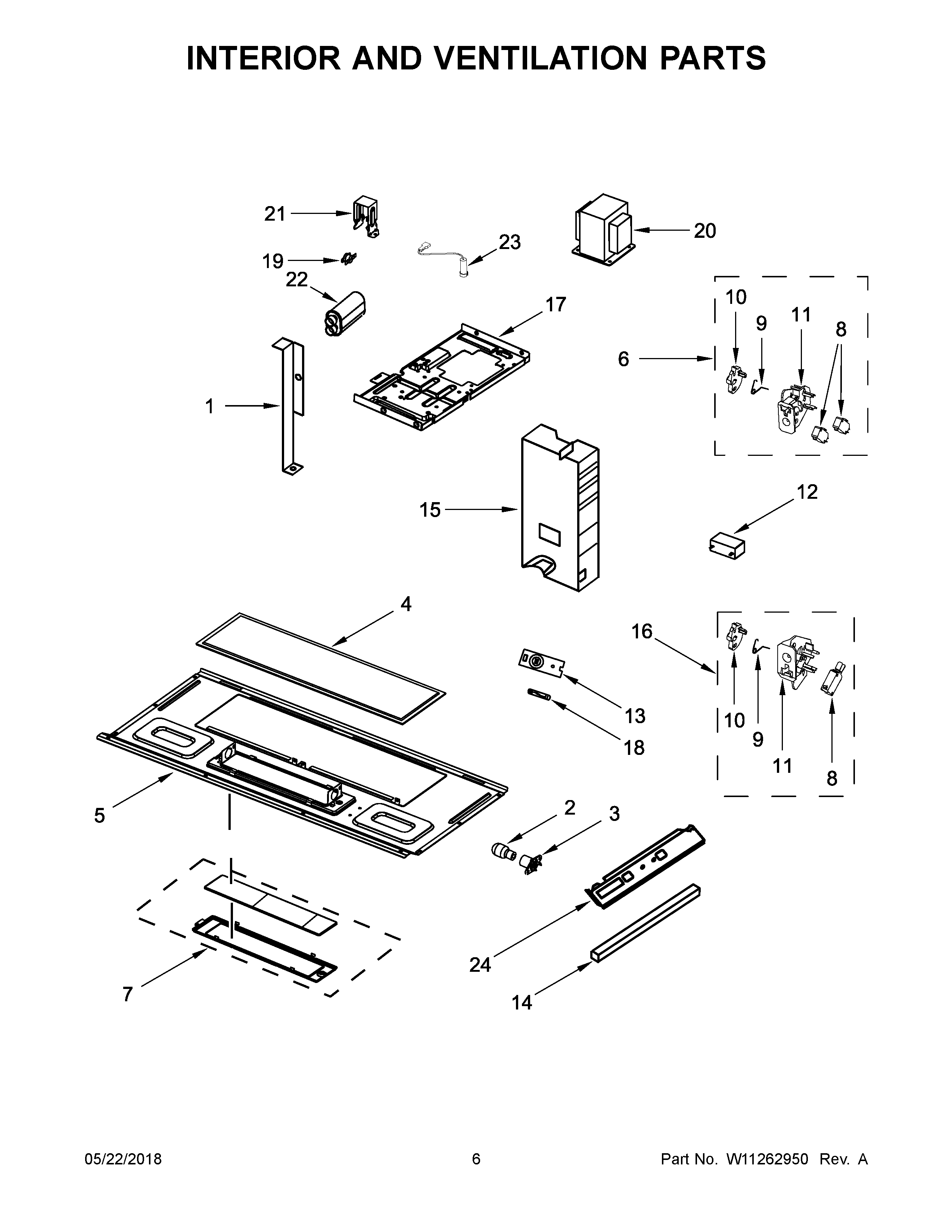

IMH172FS2 04 – INTERIOR AND VENTILATION PARTSadmin2025-04-26T11:30:55+00:00IMH172FS2 04 – INTERIOR AND VENTILATION PARTS ProductsPositionProduct1W10313275 Whirlpool Microwave Support Bracket28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb3W10210871 Whirlpool Microwave Lamp Housing4W10208631A Whirlpool Microwave Grease Filter5W10245196 Whirlpool Microwave Base6W11252186 Whirlpool Microwave Interlock7COVR-LIGHT8CABINET (NOT A SERVICEABLE PART)9W10156812 Whirlpool Spring10W10562613 Whirlpool Microwave Interlock Cam Assembly11AWPW10156813 Whirlpool Microwave Bottom Interlock Support11WP8206419 Whirlpool Microwave Top Interlock Support12W11405832 Whirlpool Microwave Capacitor13W10163422 Whirlpool Microwave Thermistor14W10571179 Whirlpool Cushion15W11302941 Whirlpool Microwave Side Cover16W11252187 Whirlpool Microwave Interlock17W10827115 Whirlpool Microwave Base18FUSE-THRML19W10269232 Whirlpool Microwave Thermostat Fix20W10836753 Whirlpool Microwave Transformer21W10532063 Whirlpool Microwave Bracket228206562 Whirlpool Microwave Capacitor MG23W11256462 Whirlpool Microwave Diode24W10904020 Whirlpool Base Assembly
