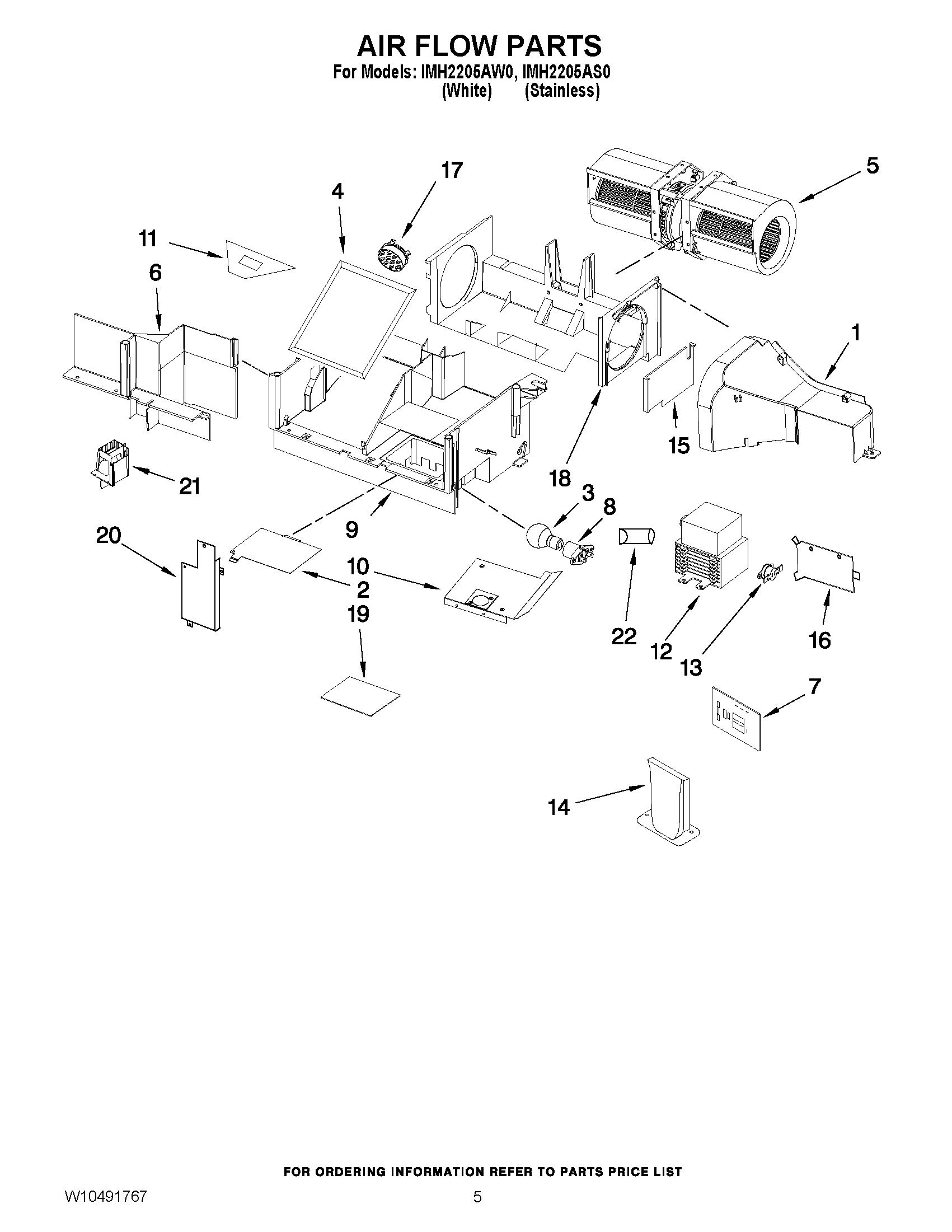

IMH2205AW0 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	8206382 Whirlpool Microwave Light Cover
3	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4	8206230A Whirlpool Microwave Charcoal Filter
5	MOTOR, HOOD FAN
6	Air Guide,Plate
7	W10422269 Whirlpool Microwave Filter
8	WPW10210878 Whirlpool Microwave LMP Housing
9	W10387590 Whirlpool Microwave Air Duct
10	Support, Sensor
11	SOCKET, MOTOR WIRE
12	W10245183 Whirlpool Microwave Magnetron
13	W10598693 Whirlpool Microwave Thermostat Fix
14	W10164716 Whirlpool Microwave Plate
15	W10245182 Whirlpool Microwave Duct Cover
16	W10313274 Whirlpool Microwave Mounting Bracket
17	W10245178 Whirlpool Microwave Sensor
18	W10640885 Whirlpool Microwave Mounting Bracket
19	Cavity Lamp Foil
20	Cover, Inlet Air Cavity Guide
21	PLATE, SEALING AIR GUIDE
22	Magnetron, Terminal Cover
